- Page 1 STC-100 Standards Converter User’s Guide http:// www.datavideo-tek.com Rev: 240106...
-
Page 2: Warnings And Precautions
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. -
Page 3: Service And Support
It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo-tek.com for answers to common questions, support requests or contact your local office below. -
Page 4: Warranty
Datavideo warrants that the equipment it manufactures shall be free from defects in material and workmanship for a period of 12 months from the date of product purchased. If equipment fails due to such defects, Datavideo will, at its option, repair or provide a replacement for the defective part or product. -
Page 5: Table Of Contents
Contents INTRODUCTION WHAT’S IN THE PACKAGE CONNECTION DIAGRAM FRONT PANEL REAR PANEL CONNECTION COLOR PROCESSOR FACTORY RESET SPECIFICATIONS... -
Page 6: Introduction
NTSC to PAL – PAL to NTSC from Component (YUV), S-Video (Y/C) or Composite (CVBS) video sources. The built in TBC ensures optimum quality is maintained. The STC-100 can also convert from 0 IRE to 7.5 IRE and also from one format to another; i.e. S-Video to Composite etc. -
Page 7: Connection Diagram
The principle is always the same; you connect a playback device of one standard to the inputs of the STC-100, and a record deck of the other standard to the output from the STC-100. The STC-100 automatically recognizes the input as PAL or NTSC, so you only need to select the output format. -

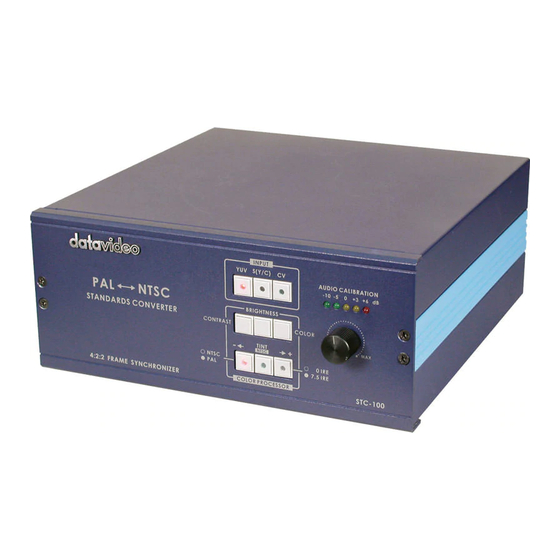

Page 8: Front Panel
For further details see page 10. NTSC / PAL Output The output can be set to NTSC or PAL. If the button is illuminated the output is set to PAL. (The STC-100 automatically sets the input to PAL or NTSC according to the video signal.) - Page 9 0 IRE / 7.5 IRE The black level output for NTSC can be set to 0 or 7.5 IRE. For North American NTSC use 7.5, for Japanese NTSC use 0. If the button is illuminated 7.5 IRE is selected. Audio Calibration Allows you to set the audio level to avoid distortion.
-
Page 10: Rear Panel Connection
Connect the supplied power adaptor to the DC Input socket. Once the plug has been inserted the locking collar can be screwed into place for a secure fit. Once all connections are in place switch the STC-100 on using the On / Off switch. Composite (CV) / S-Video (Y/C) and Stereo Audio In / Use these connections for Composite or S-Video (Y/C) and unbalanced stereo audio In and Out. -
Page 11: Color Processor
The built in color processor is very easy to use. The memory is non-volatile, so settings are saved, even when the STC-100 is powered off. Setting the contrast, brightness, color saturation and tint (TINT is only for NTSC Composite or S-Video inputs), follows a similar procedure. -
Page 12: Factory Reset
Factory Reset Factory reset will return all color processor settings to neutral (factory default). To return the STC-100 to factory defaults, press and hold the YUV button for 5 seconds You will see the selected video input light (YUV, S(Y/C),CV) flash three times when reset has taken place. -
Page 13: Specifications
Specification Input Video: CVBS, S-Video, YUV input Audio: RCA (Phono)-Unbalanced (Stereo) Output Video: CVBS, S(Y/C), YUV, Black Burst output Audio: RCA (Phono)-Unbalanced (Stereo) Video Processing Component Frame Synchronization Frequency Response (S input) 4.5 MHz +/-3dB DG, DP S/N Ratio Video Correction： Brightness Contrast Color... - Page 14 All the trademarks are the properties of their respective owners. P/N: 082060382E2 Datavideo Technologies Co., Ltd. All rights reserved 2006.
