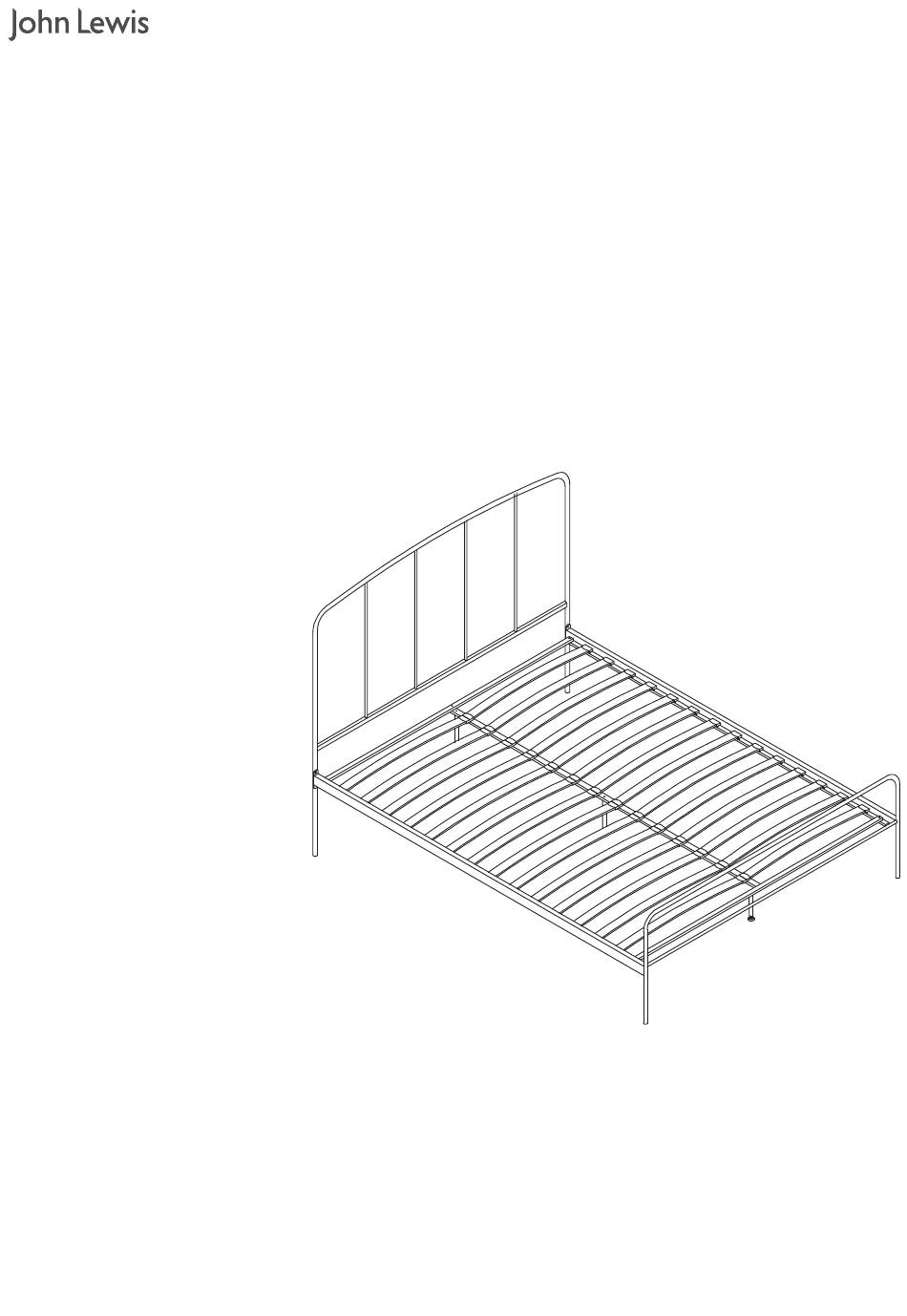

Alpha bed
Small double
Stock number white: 803 50402
Stock number grey: 803 50201
Double
Stock number white: 803 50404
Stock number grey: 803 50202
H100 W126.5 D196.5cm
H100 W141.5 D196.5cm

Advertisement

loading
Need help?

Need help?

Do you have a question about the Alpha bed 803 50402 and is the answer not in the manual?

Questions and answers

Summary of Contents for John Lewis Alpha bed 803 50402

  • Page 1 Alpha bed Small double Stock number white: 803 50402 Stock number grey: 803 50201 Double Stock number white: 803 50404 Stock number grey: 803 50202 H100 W126.5 D196.5cm H100 W141.5 D196.5cm...
  • Page 2 Thank you for purchasing the Alpha bedstead. Please read the instructions and warnings carefully before use, to ensure safe and satisfactory operation of this product. At John Lewis, we are committed to making great products possible. From our in-house Design Team, to our Buyers, we work together to bring great design to life.
  • Page 3: Important Safety Information

    Important safety information Warnings The product should only be used on firm, level ground. Keep small parts out of reach of children. Ensure the product is fully assembled as illustrated before use. Do’s Check the pack and make sure you have all the parts listed. Check all screws or bolts are tightened and inspect regularly.
  • Page 4 Your bed Description Headboard Footboard Side rails Slats Cross bars Support legs Centre rail...
  • Page 5: Fixtures And Fittings

    Fixtures and fittings Fixtures and fittings supplied (actual size) Description Dimensions JCBC bolt M6 x 25mm JCBC bolt M6 x 30mm Fixtures and fittings supplied (not actual size) Description Washer M6 JCN nut Adjuster Centre cap Side cap M4 Allen key...
  • Page 6: Product Assembly

    Product assembly Alpha bed 803 50402 803 50201 803 50404 803 50202 Step 1 Parts, fittings and tools Repeat this for all 4 corners. Step 2 Parts, fittings and tools...
  • Page 7 Alpha bed 803 50402 803 50201 803 50404 803 50202 Step 3 Parts, fittings and tools Step 4 Parts, fittings and tools Note: Once the Supporting Legs are secured in place, unscrew the Adjuster slightly, ensuring there is a 5mm gap between the Adjuster and hard point of the floor.
  • Page 8 Alpha bed 803 50402 803 50201 803 50404 803 50202 Step 5 Parts, fittings and tools Step 6 Ready to use...
  • Page 9 Please be careful to retain all fittings when doing this. This product complies with BS EN 1725:1998. If you require any additional information or have any issues with this product please call the John Lewis helpline on 03456 049 049.
