John Lewis

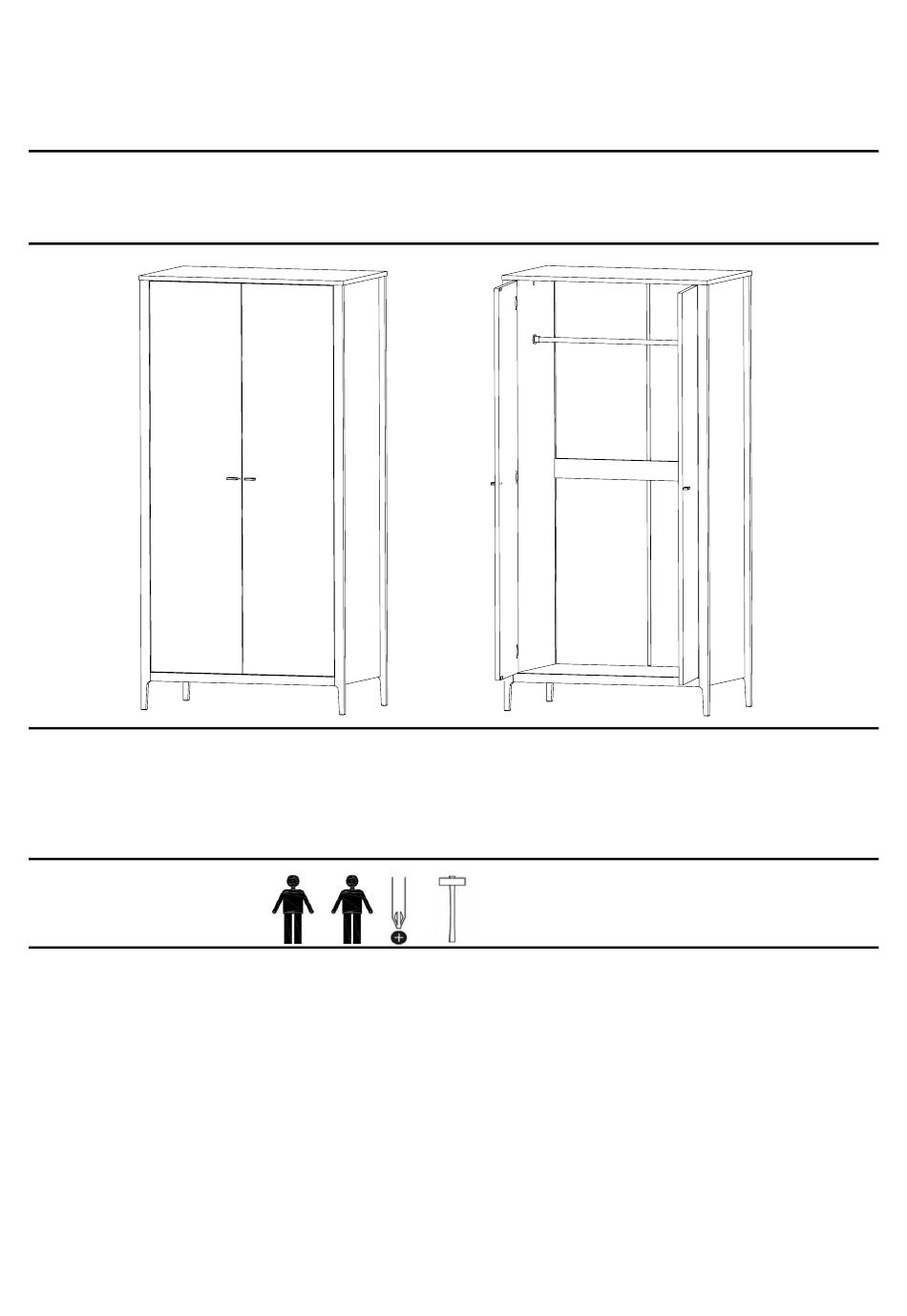

Maine white/ash 2 door wardrobe
Stock number: 80307108
Thank you for purchasing this Maine 2 door wardrobe. Please read the instructions carefully before use
to ensure safe and satisfactory operation of this product
Pre-assembly preparation
Please ensure instructions are read in full before attempting to assemble this product
Necessary Tools
You will require a cross head screwdriver to assemble this product. An electric drill may cause damage
to the product and is not recommended.
Please check the pack contents before attempting to assemble this product. A full checklist of
components is given in this leaflet. If any components are missing, please contact John Lewis customer
services or your local branch.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 70 MINUTES to assemble with /2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG
CHILDREN.
Read this leaflet in full before commencing assembly.
1 of 12
Advertisement
Related Manuals for John Lewis 80307108
Summary of Contents for John Lewis 80307108
- Page 1 Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet. If any components are missing, please contact John Lewis customer services or your local branch.
- Page 2 Fittings and parts checklist Top x 1 Left side panel x 1 Right side panel x Door x 2 Bottom piece Bottom x 1 front x 1 2 of 12...
- Page 3 Back panel part x Middle piece back 19x786mm Pole x Back panel list x 2 6x45mm Minifix 8x35mm wooden bolt x 9 dowel x 12 (For wood) 6x45mm Minifix Minifix housing x bolt x 12 (For bushing) Mounting plate x Cup hinge x 6 4x12mm screw x 4x25mm screw x...
- Page 4 Step by step assembly instructions Step One Fix the six minifix bolt (M) to the top (A) as shown Fix the two magnets (U) to the top as shown with 4 screws (S). Let them sit loose until the doors are fixed in step thirteen.
- Page 5 ____________________________________________________________________________ Step Three Fit the two dowels (K) into the end of the bottom piece front (E) Fix the three minifix bolt (L) to the bottom piece front as shown Fittings K X 2 L X 3 ____________________________________________________________________________ Step Four Fit the bottom piece front (E) against the bottom (F) Use three minifix houseings (N) to fasten the bottom piece front to the bottom Fittings...
- Page 6 ____________________________________________________________________________ Step Five Fit the two dowels (K) into the top end of the left side panel (B) as shown. Fix the three minifix bolt (M) to the side as shown Fix the three minifix bolt (L) to the legs parts of the side panel as shown Fix the rail holder part one (W) to the side, for that use 25mm screw (R) Fix the three mounting plates (O) to the side, for that use six screws (Q) Fittings...
- Page 7 ____________________________________________________________________________ Step Six Fit the two dowels (K) into the top end of the right side panel (C) as shown. Fix the three minifix bolt (M) to the side as shown Fix the three minifix bolt (L) to the legs parts of the side panel as shown Fix the rail holder part one (W) to the side, for that use 25mm screw (R) Fix the three mounting plates (O) to the side, for that use six screws (Q) Fittings...
- Page 8 ____________________________________________________________________________ Step Seven Lay the left side panel (B) on the floor Fit the middle piece back (H) to the leg part of the left side panel as shown Fit the assembled bottom and bottom piece front (E&F) into the left side panel as shown Place the right side panel (C) so it does fit in the holes of the middle back piece (H) and bottom Fix the twelve minifix housings (N) as shown Fittings...
- Page 9 ____________________________________________________________________________ Step Nine Place the rail holder part two (X) in both ends of the pole (J) as shown Fittings X X 2 ____________________________________________________________________________ Step Ten Place the pole (J) and rail holders part two (X) in position as shown, and screw it on rail holder part one ____________________________________________________________________________ 9 of 12...
- Page 10 ____________________________________________________________________________ Step Eleven Fit the four back panels (G) in position back on the wardrobe as shown To fasten it use nails (V) Connect two back panels with the back panel list (I), this for both upper section and lower section. Fittings V X 60 ____________________________________________________________________________...
- Page 11 ____________________________________________________________________________ Step Thirteen Fix the right and left doors (D) to the wardrobe by connecting the cup hinges (P) to the mounting plate (O) The way doing that, is to push the cuphinges inwards over the mounting plates and fasten it with screw as shown.
-
Page 12: Care And Maintenance
Care and Maintenance This Maine wardrobe should be cleaned using a soft damp cloth and dried immediately. Do not use a very wet cloth or allow any liquid to contact with the veneers for a long period of time as this can permanently damage the surface. Do not use any abrasive cleaner or harsh detergent as this can damage the surface of the veneers.
