Sierra Designs STUDIO 2 Pitching Instructions

STUDIO 2
PITCHING INSTRUCTIONS
Congratulations on the purchase of your new Sierra Designs tent! In order to familiarize yourself with your new tent, we recommend you
"test pitch" it before embarking on your wilderness adventure.
PACKAGING INCLUDES: Tent body, rain fly, 2 poles, guy cords, stakes, storage bag, and pole bag with stake pocket.

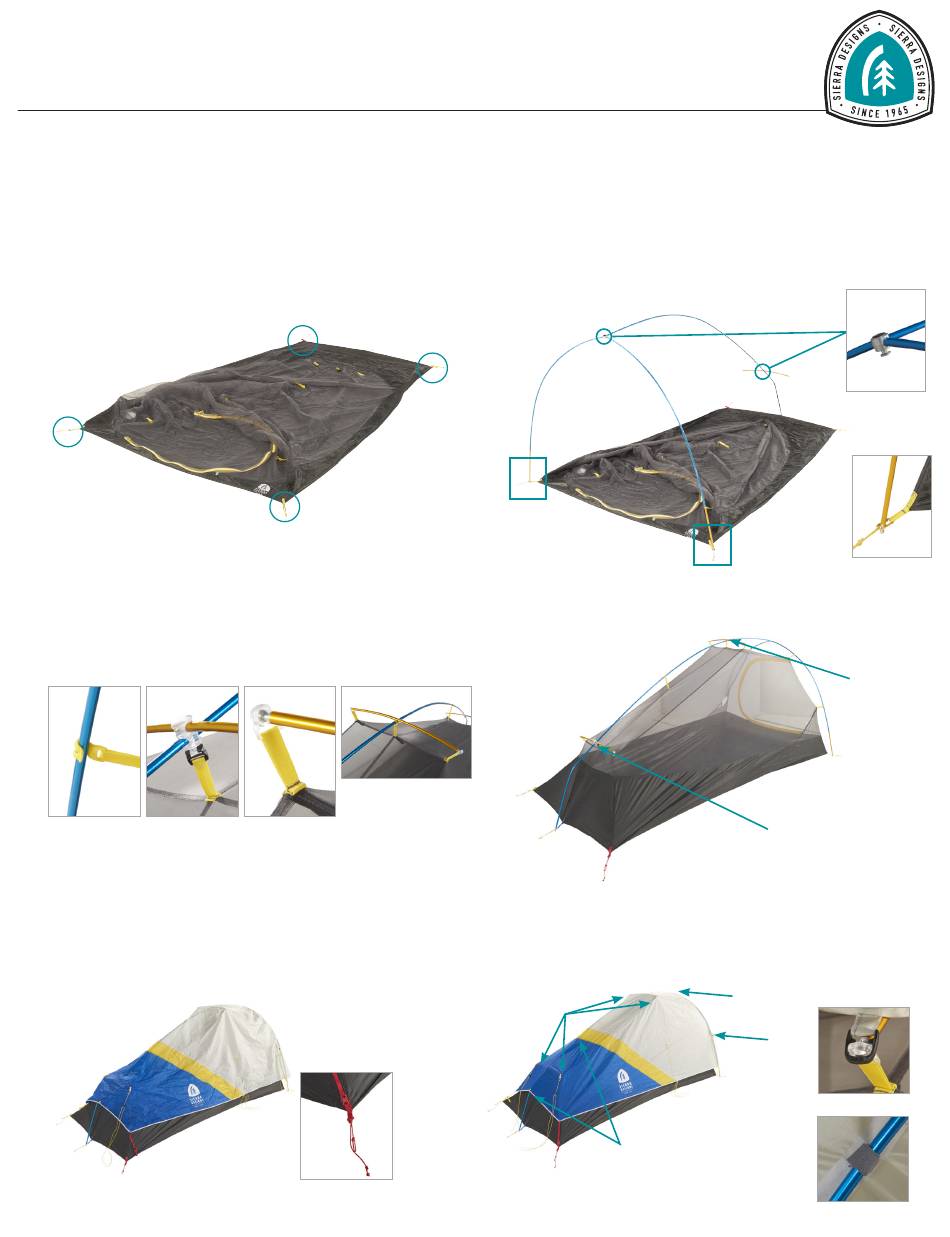

STEP 1: Find an even piece of ground; be sure the area is clear of debris.
Lay out your tent as shown. Stake the 4 corners (circled).
STEP 3: Connect Tent Lite Hook to poles. Attach H-Clip and Ball Cap Connectors to rear ridge pole. Attach center yellow
ridge pole to Ball Cap Connectors at middle of tent.
Tent Lite Hook H-Clip
STEP 4: Lay the rain fly over the tent body matching RED corner of the tent
with the RED corner of the fly.
Ball Cap Connector Center Ridge Pole
Match RED corner of fly with
RED corner of tent body
STEP 2: Assemble main pole set. Locate YELLOW pole ends and insert into the
tent body corners with YELLOW SD Anchors/webbing. Make sure H-Clip
on swivel hub points DOWN.
STEP 5: On the underside of the fly, clip the four SQ Rings to the Ball Cap
Connectors and wrap the four Velcro loops around poles.
NOTE: this will insure proper fly tensioning.
SQ Ring
VL
Swivel Hub with H-Clip
Insert Yellow pole in Yellow
SD Anchor/Webbing
Center Ridge Pole
Rear Ridge Pole
SQ Ring
VL
VL
Velcro Loop
