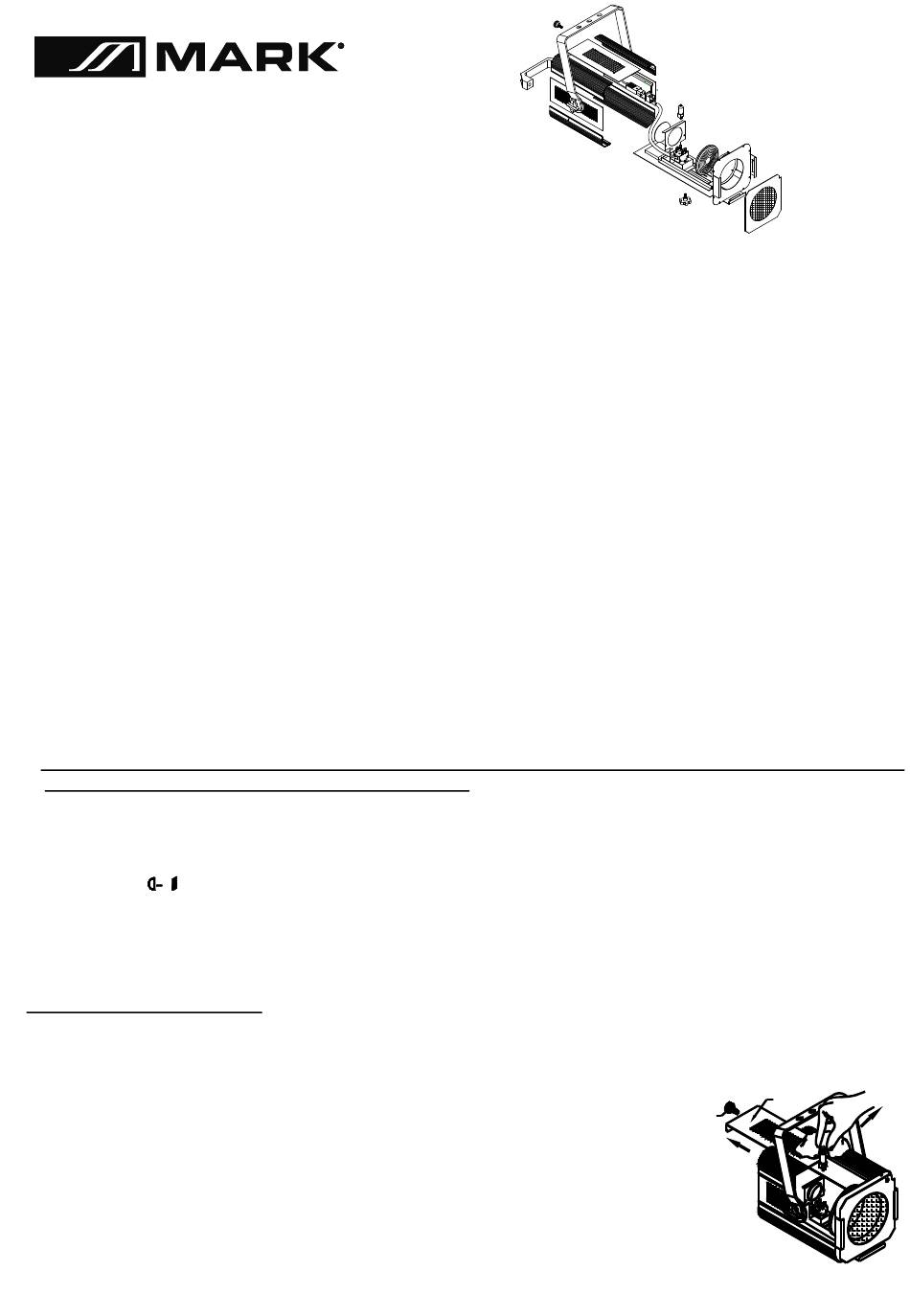

THEATRE 650-1000

SAFETY INSTRUCTIONS

♦ CAUTION! Be careful with your operations. With a dangerous voltage you
can suffer a dangerous electric shock when touching the wires!
♦ This device falls under protection-class I, therefore it is essential that the yellow/green conductor gets
connected to earth. The power plug must only be plugged into a protection class I outlet
♦ Keep away from heaters and other heating sources!
♦ Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the
power-cord from time to time.
♦ If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
♦ shields, lenses or ultraviolet screens shall be changed if they have become visibly damaged to such an
extent that their effectiveness is impaired, for example by cracks or deep scratches.
♦ Never let the power-cord come into contact with other cables! Handle the power-cord and all connections
with the mains with particular caution!
♦ Make sure that the available voltage is not higher than stated in this manual.
♦ Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the
power-cord by the plug. Never pull out the plug by tugging the power-cord.
♦ During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
♦ DANGER OF BURNING! Never touch the device during the operation! The housing heats up to the
housing temperature T
♦ HEALTH HAZARD! Never look directly into the light source, as sensitive persons may suffer an epileptic
shock (especially meant for epileptics)!
♦ There are no serviceable parts inside the device.

OPERATING DETERMINATIONS

♦ This device is a spot designed for professional use on stages, in discotheques, theatres etc. this fixture
was designed for indoor use only.
♦ Lighting effects are not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
♦ Do not shake the device. Avoid brute force when installing or operation the device.
♦ When choosing the installation-spot, please make sure that the device is not exposed to extreme heat,
moisture or dust. There should not be any cables lying around. You endanger your own and the safety of
others!
♦ The symbol
M
light-output and the illuminated surface must be more than 3 meter.
♦ Always fix the fixture with an appropriate safety-rope.
♦ The maximum ambient temperature T

INSTALLATION

Installing/Replacing the lamp

♦ CAUTION! The lamp has to be replaced when it is damaged or thermally deformed due to the heat!
♦ Before replacing the lamp, unplug mains lead and let the lamp cool down (approx. 5 minutes).
♦ During the installation do not touch the bulbs bare-handed! Please follow the lamp manufacturer’ s notes!
♦ Do not install lamps with a higher wattage!
♦ For the installation, you need one correct lamp, please refer to the last sheet.
♦ Procedure:
Step 1: Unscrew the handle screw on the rear side
Step 2: Push out the cover to the back.
Step 3: Remove the old lamp
Step 4: Insert the lamp in the housing.
Step 5: Replace the cover and screw the handle screw.
.
SURFACE
determines the minimum distance from lighted objects. The minimum distance between
a
must never be exceeded.
COVER
HANDLE
SCREW
Ver. 12.05.01
