ABSCO SHEDS 30082SK Assembly Instructions Manual

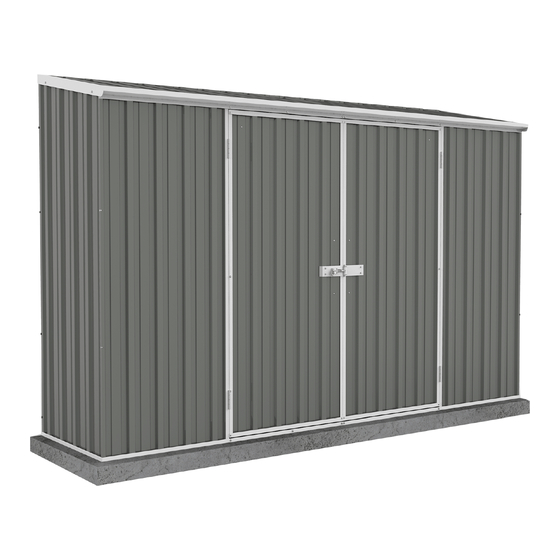

Space saver shed
Hide thumbs Also See for 30082SK:
Table of Contents

Advertisement

Quick Links

Download this manual

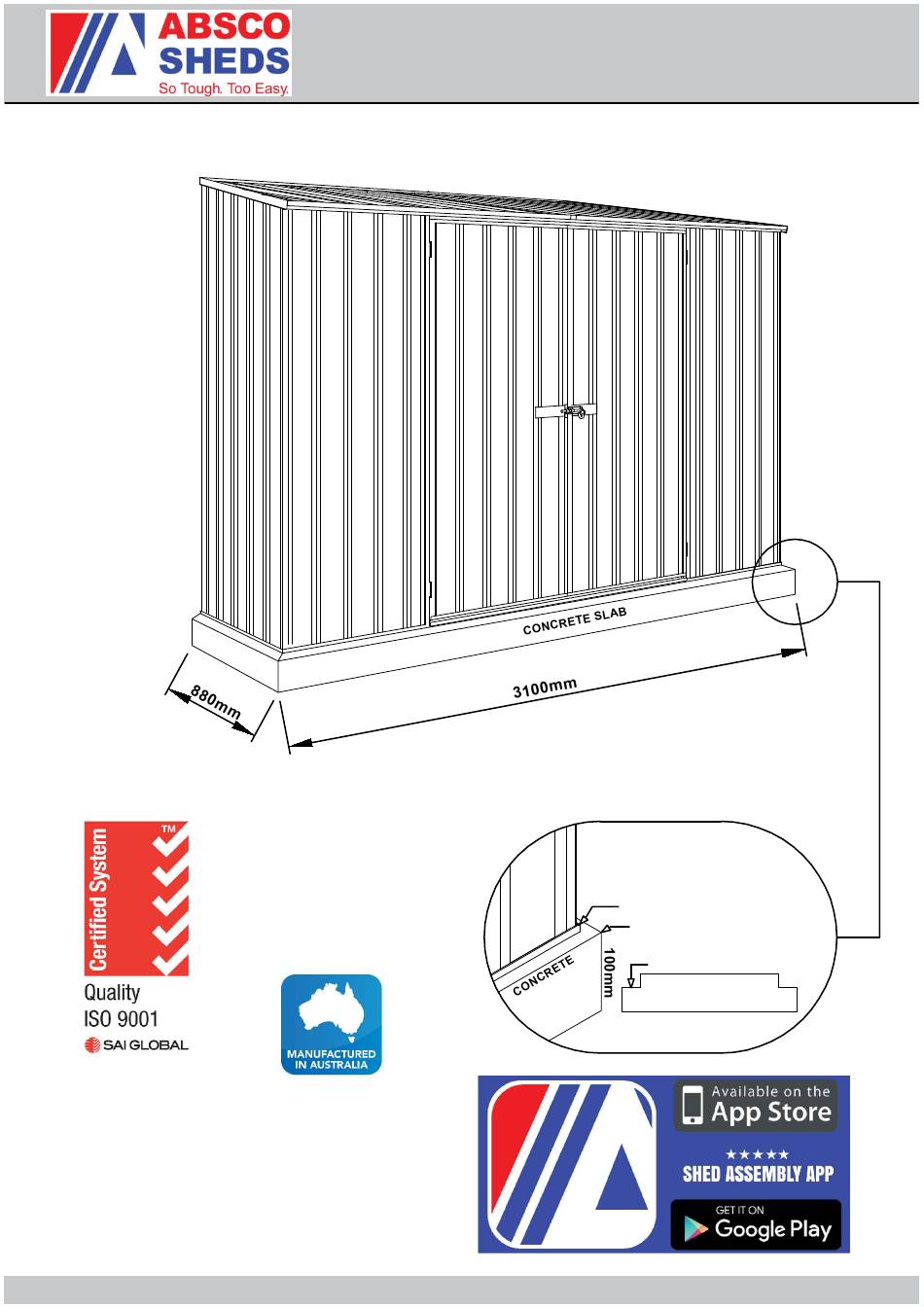

FRONT BASE
LENGTH: 3.0m
SIDE BASE
LENGTH: 0.78m
FRONT WALL
HEIGHT: 1.8m
REAR WALL
HEIGHT: 1.95m
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES
Space Saver Shed Model: 30082SK
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
ASSEMBLY INSTRUCTION MANUAL
Absco Industries
BOTTOM CHANNEL
REBATED EDGE
SHED MODEL: 30082SK
75mm WIDE REBATE
CONCRETE SLAB
16-11-2017
PAGE 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30082SK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABSCO SHEDS 30082SK

Summary of Contents for ABSCO SHEDS 30082SK

  • Page 1 Absco Industries Space Saver Shed Model: 30082SK FRONT BASE LENGTH: 3.0m SIDE BASE LENGTH: 0.78m FRONT WALL HEIGHT: 1.8m REAR WALL HEIGHT: 1.95m WHEN LAYING YOUR CONCRETE SLAB, ENSURE THERE IS A REBATED EDGE 25mm DEEP AROUND THE PERIMETER BOTTOM CHANNEL...
  • Page 2 Absco Industries Space Saver Shed Model: 30082SK GENERAL INSTRUCTIONS · Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. · Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on pages three and four.

  • Page 3: Component Description

    Absco Industries Space Saver Shed Model: 30082SK COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET 1915 X 773mm CHANNEL L = 786mm STEEL SHEET CHANNEL 1915 X 773mm L = 773mm...
  • Page 4 Absco Industries Space Saver Shed Model: 30082SK COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION 55AL 55AR CHANNEL CHANNEL L = 1496.5mm (58.9") L = 1496.5mm (58.9") 55CL 55CR CHANNEL CHANNEL L = 1496.5mm (58.9") L = 1496.5mm (58.9")
  • Page 5 Absco Industries Space Saver Shed Model: 30082SK COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION LIP TRIM L= 865mm JAMB L= 1568mm JAMB L= 1725mm JAMB L= 1120mm INSTRUCTIONS & FITTINGS PACKET...
  • Page 6 Absco Industries Space Saver Shed Model: 30082SK INSTRUCTIONS FOR JOINING SPLICED CHANNELS NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER. JOIN>> JOIN>> JOIN>> <<JOIN STEP 1. STEP 2. Position the channels and the CSJ...
  • Page 7 Absco Industries Space Saver Shed Model: 30082SK STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS NOTE: JOIN TOGETHER 20 X CHANNEL SECTIONS USING 10 X CHANNEL JOINERS (PART CSJ) NOTE: SOME CHANNELS HAVE 2 x 81A HOLES IN THEM - YOU WILL NEED...
  • Page 8 Absco Industries Space Saver Shed Model: 30082SK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 30082SK 16-11-2017 PAGE 08...
  • Page 9 Absco Industries Space Saver Shed Model: 30082SK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 30082SK 16-11-2017 PAGE 09...
  • Page 10 Absco Industries Space Saver Shed Model: 30082SK ABSCO ASSEMBLY INTRODUCTION The snaptite assembly system locks most perimeter channels to all roof and wall sheets without the need for tools and fasteners. To pre-assemble the four wall panels and two roof panels, the perimeter...
  • Page 11 Absco Industries Space Saver Shed Model: 30082SK DOOR PANEL ASSEMBLY DOOR PANEL ASSEMBLY ALL VERTICAL DOOR CHANNELS ARE INSTALLED IN THE REVERSE DIRECTION IN COMPARISON TO HORIZONTAL DOOR CHANNELS 20mm FLANGE 15mm FLANGE FOUR HOLE SET FOR PADBOLT CONNECTION ABSCO INDUSTRIES...

  • Page 12: Rear Panel Assembly

    Absco Industries Space Saver Shed Model: 30082SK REAR PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 30082SK 16-11-2017 PAGE 12...

  • Page 13: Side Panel Assembly

    Absco Industries Space Saver Shed Model: 30082SK SIDE PANEL ASSEMBLY (TWO REQUIRED) ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 30082SK 16-11-2017 PAGE 13...
  • Page 14 Absco Industries Space Saver Shed Model: 30082SK ROOF PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 30082SK 16-11-2017 PAGE 14...

  • Page 15: Front Panel Assembly

    Absco Industries Space Saver Shed Model: 30082SK FRONT PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 30082SK 16-11-2017 PAGE 15...

  • Page 16: Door Panel Assembly

    Absco Industries Space Saver Shed Model: 30082SK DOOR PANEL ASSEMBLY NOTE: Nuts and bolts (supplied) may be used instead of pop rivets (supplied) by simply enlarging the hinge hole sets in the jamb using a 4mm drill bit NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment.
  • Page 17 Absco Industries Space Saver Shed Model: 30082SK PANEL CONSTRUCTION NOTE: Take care to ensure that both front and rear wall panels are not positioned upside down. The top channel of each panel is pre-punched for attaching roof sheets. The base channels are not pre-punched.
  • Page 18 Absco Industries Space Saver Shed Model: 30082SK FINAL CONSTRUCTION ANCHORING OF SHED LOCATION OF 8 CONCRETE ANCHORS WALL BOLT & NUT SHEET STEEL ANGLE - EACH ANCHOR CONSISTS OF ONE NUT, BOLT, DYNABOLT AND STEEL ANGLE SLAB - DRILL A 10mm HOLE INTO THE WALL SHEET...
  • Page 19 AUSTRALIA PRODUCT WARRANTY AGAINST DEFECTS Congratulations on your purchase of an ABSCO SHED ABSCO SHEDS, including garden sheds, garden beds, aviaries, storage units, garages, awnings and carports are made using high quality Australian made steel. We are pleased to advise we warrant that the steel coating will not rust, crack, flake peel or blister for 30 years from date of purchase, when installed within Australia.
  • Page 20 ABSCO SHEDS include garden sheds, garden beds, storage units, aviaries, garages, awnings and carports. ABSCO SHEDS are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fixings etc., may exhibit minor deformations which may allow some water entry.
