We thank you for choosing an Australian Made Shed. For further assistance please
visit our detailed instructional video library at http://www.absco.com.au/videos.php
At ABSCO Industries we are always looking to be number ONE, so please let us
know what you think of our instructions. Feedback makes us better.
feedback@absco.com.au.
ABSCO INDUSTRIES
Absco EZISLIM Shed
Model: 08081H HIGHSLIM

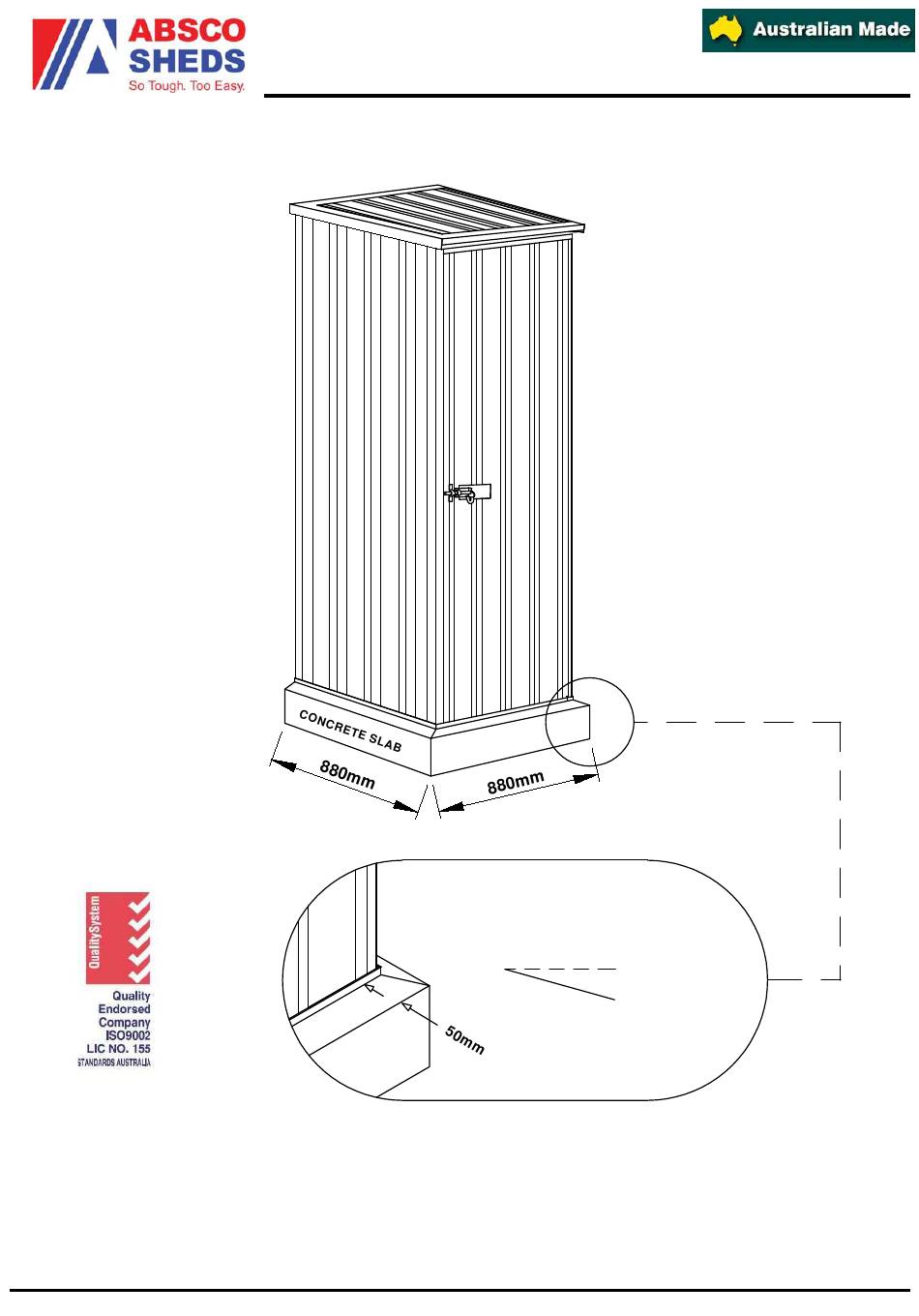

WHEN LAYING YOUR CONCRETE
SLAB, CHAMFER THE 50mm EDGES
DOWNWARDS BY 10mm.
ASSEMBLY INSTRUCTION - MODEL: 08081H 17/09/12
50mm
10mm
THIS WILL ENSURE THAT
WATER RUN OFF IS KEPT
CLEAR FROM YOUR SHED
FRONT: 0.78m
SIDE:
0.78m
HEIGHT: 2.035m
PAGE 1
Advertisement
Related Manuals for ABSCO SHEDS EZISLIM 08081H HIGHSLIM
Summary of Contents for ABSCO SHEDS EZISLIM 08081H HIGHSLIM
- Page 1 Absco EZISLIM Shed Model: 08081H HIGHSLIM FRONT: 0.78m SIDE: 0.78m HEIGHT: 2.035m WHEN LAYING YOUR CONCRETE SLAB, CHAMFER THE 50mm EDGES DOWNWARDS BY 10mm. 50mm 10mm THIS WILL ENSURE THAT WATER RUN OFF IS KEPT CLEAR FROM YOUR SHED We thank you for choosing an Australian Made Shed. For further assistance please visit our detailed instructional video library at http://www.absco.com.au/videos.php At ABSCO Industries we are always looking to be number ONE, so please let us know what you think of our instructions.
- Page 2 Absco EZISLIM Shed Model: 08081H HIGHSLIM GENERAL INSTRUCTIONS • Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. • Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on pages three and four.
- Page 3 Absco EZISLIM Shed Model: 08081H HIGHSLIM COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET 2035mm X 773mm CHANNEL L = 773mm STEEL SHEET 852mm X 773mm CHANNEL L = 720mm STEEL SHEET H30F 2035mm X 773mm...
- Page 4 Absco EZISLIM Shed Model: 08081H HIGHSLIM COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION LIP TRIM L= 852mm JAMB L= 720mm JAMB L= 1080mm DOOR TRIM SIDE CHANNEL WITH HINGES FITTED L = 1974mm CONTENTS OF FITTINGS PACKET SELF TAPPING SCREWS...
- Page 7 Absco EZISLIM Shed Model: 08081H HIGHSLIM ABSCO ASSEMBLY INTRODUCTION The snap-tite assembly system locks most perimeter channels to all roof and wall sheets without the need for tools and fasteners. The front door frame and door assembly will require 3mm holes to be drilled where necessary. To pre-assemble the four wall panels and two roof panels, the perimeter channels are secured to the top and...
- Page 8 Absco EZISLIM Shed Model: 08081H HIGHSLIM SIDE PANEL ASSEMBLY LEFT SIDE PANEL H80A ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 08081H 17/09/12 PAGE 8...
- Page 9 Absco EZISLIM Shed Model: 08081H HIGHSLIM SIDE PANEL ASSEMBLY RIGHT SIDE PANEL H80A ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 08081H 17/09/12 PAGE 9...
- Page 10 Absco EZISLIM Shed Model: 08081H HIGHSLIM REAR PANEL ASSEMBLY H30F ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 08081H 17/09/12 PAGE 10...
- Page 11 Absco EZISLIM Shed Model: 08081H HIGHSLIM ROOF PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 08081H 17/09/12 PAGE 11...
- Page 12 Absco EZISLIM Shed Model: 08081H HIGHSLIM FRONT FRAME ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 08081H 17/09/12 PAGE 12...
- Page 13 Absco EZISLIM Shed Model: 08081H HIGHSLIM DOOR PANEL ASSEMBLY NOTE: THIS SHEET (H37A) IS 711mm WIDE BY 1974mm HIGH NOTE: USE THE PRE-PUNCHED COMPONENTS (HC1, HC2, 12A) AS TEMPLATES FOR DRILLING 3mm HOLES INTO THE SHEET (H37A) NARROW PAN H37A THIS SIDE 20mm FLANGE 15mm FLANGE...
- Page 14 Absco EZISLIM Shed Model: 08081H HIGHSLIM FRONT PANEL AND DOOR CONNECTION ASSEMBLY PHOTOS CORNER DOOR JAMB ASSEMBLY DOOR CONNECTION & JAMB ASSEMBLY PADBOLT & HASP CONNECTION PADBOLT TO DOOR CONNECTION NOTE: PLEASE REFER TO THE FOLLOWING PAGES FOR FURTHER DETAIL ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 08081H 17/09/12 PAGE 14...
- Page 15 Absco EZISLIM Shed Model: 08081H HIGHSLIM PANEL CONSTRUCTION NOTE: Take care to ensure that both front and rear wall panels are not positioned upside down. The top channel of each panel is pre-punched for attaching roof sheets. The base channels are not pre-punched.
- Page 16 Absco EZISLIM Shed Model: 08081H HIGHSLIM ROOF CONSTRUCTION AND ANCHORING OF SHED NOTE: IT IS IMPORTANT TO COMPLETE THE STEPS ON THIS PAGE BEFORE PROGRESSING ANY FURTHER ANCHORING OF SHED LOCATION OF 8 CONCRETE ANCHORS WALL - EACH ANCHOR CONSISTS OF ONE NUT, BOLT, BOLT &...
- Page 17 Absco EZISLIM Shed Model: 08081H HIGHSLIM DOOR PANEL ASSEMBLY H37A USING THE JAMBS AS TEMPLATES, DRILL 3mm HOLES INTO THE SHEET AND SECURE WITH SCREWS ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 08081H 17/09/12 PAGE 17...
- Page 18 Absco EZISLIM Shed Model: 08081H HIGHSLIM FINAL CONSTRUCTION CONNECT DOOR TO FRONT FRAME NOTE: NUTS AND BOLTS (SUPPLIED) MAY BE USED INSTEAD OF POP RIVETS (SUPPLIED) BY SIMPLY ENLARGING THE HINGE HOLE SETS IN THE JAMB USING A 4MM DRILL BIT FOR INTERNAL LOCKING DOOR BOLT AND PAD PLATE CAN BE RE-LOCATED TO INSIDE OF DOOR...
