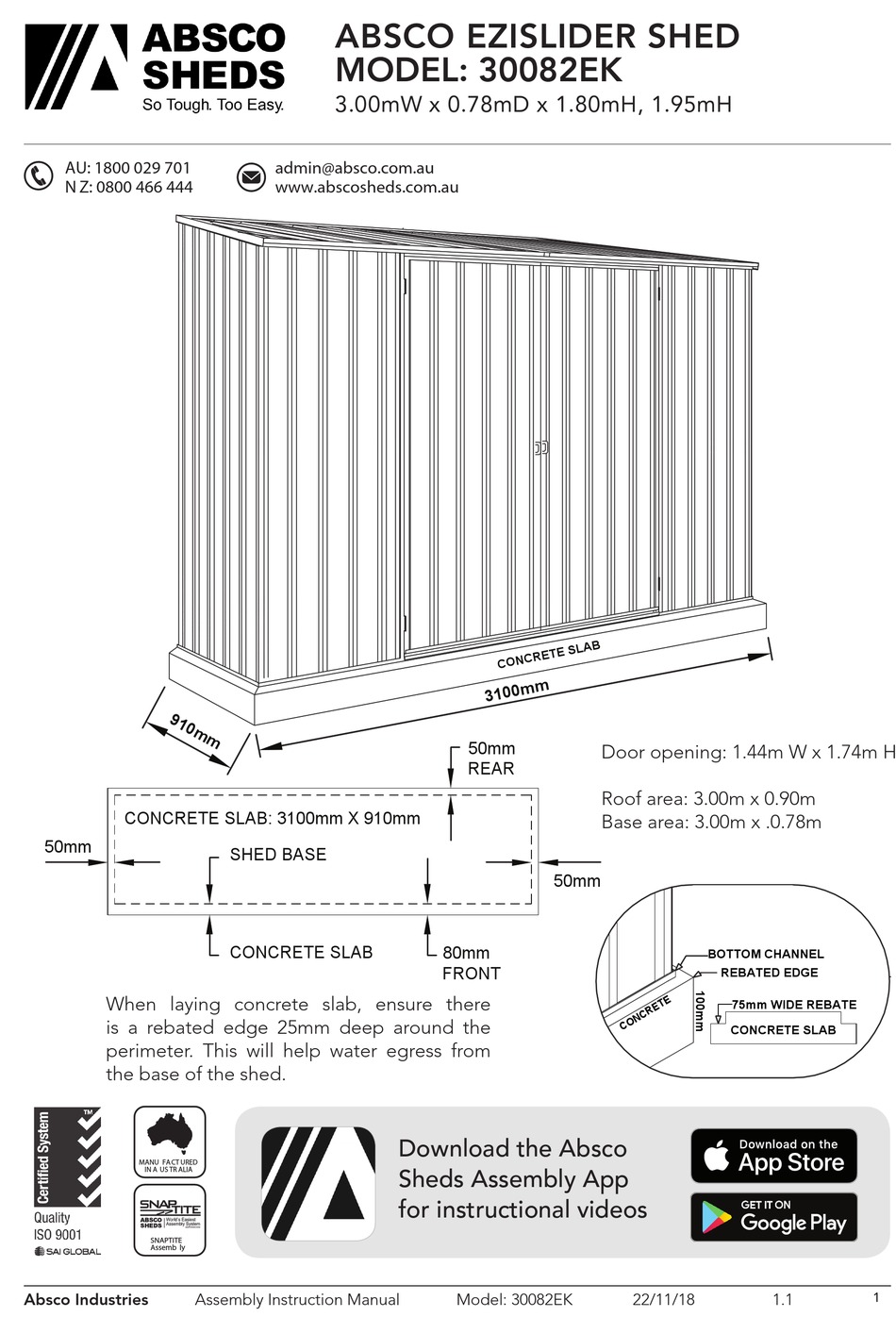

ABSCO SHEDS 30082EK Instruction Manual

Ezislider shed, 3.00mw x 0.78md x 1.80mh, 1.95mh
Hide thumbs

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
N Z: 0800 466 444
CONCRETE SLAB: 3100mm X 910mm
50mm
When laying concrete slab, ensure there
is a rebated edge 25mm deep around the
perimeter. This will help water egress from
the base of the shed.
MANU FA CT URED
IN A US TR ALIA
SNAPTiTE
Assemb ly
Absco Industries
Assembly Instruction Manual
ABSCO EZISLIDER SHED
MODEL: 30082EK
3.00mW x 0.78mD x 1.80mH, 1.95mH
admin@absco.com.au
www.abscosheds.com.au
SHED BASE
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
CONCRETE SLAB
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES
Premier Shed Model: 23151GK
50mm
REAR
50mm
80mm
FRONT
Download the Absco
Sheds Assembly App
for instructional videos
ASSEMBLY INSTRUCTION MANUAL
Model: 30082EK
Absco Industries
Door opening: 1.44m W x 1.74m H
Roof area: 3.00m x 0.90m
Base area: 3.00m x .0.78m
BOTTOM CHANNEL
REBATED EDGE
75mm WIDE REBATE
CONCRETE SLAB
SHED MODEL: 23151GK
22/11/18
FRONT: 2.26m
SIDE:
1.52m
HEIGHT: 1.95m
21-11-2017
PAGE
1.1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 30082EK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABSCO SHEDS 30082EK

Summary of Contents for ABSCO SHEDS 30082EK

  • Page 1 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au Absco Industries Premier Shed Model: 23151GK FRONT: 2.26m SIDE: 1.52m HEIGHT: 1.95m 50mm Door opening: 1.44m W x 1.74m H REAR Roof area: 3.00m x 0.90m...
  • Page 2 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH GENERAL INSTRUCTIONS • Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. • Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on "COMPONENTS PACKING LIST"...
  • Page 3 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH COMPONENT PACKING LIST MAIN PACK CARTON (1 OF 1) PART # PART # DESCRIPTION DESCRIPTION SNAPTiTE SHEET SNAPTiTE SHEET SH43B SH43G STRAIGHT STRAIGHT 1915x773mm 898x773mm SNAPTiTE SHEET SNAPTiTE SHEET...
  • Page 4 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH COMPONENT PACKING LIST Check off all components. 30082ECP CHANNEL SET DESCRIPTION DESCRIPTION PART # PART # CHANNEL CHANNEL 1496.5mm 1496.5mm CH55BL CH55BR NOTCHED NOTCHED ONE END ONE END CHANNEL CHANNEL 1496.5mm...
  • Page 5 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
  • Page 6 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH Guide on Joining Spliced Channels The text marked on all parts must be shown on the same side as each other JOIN>> JOIN>> <<JOIN JOIN>> Step 1. Step 2.
  • Page 7 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH PRE-ASSEMBLY OF SPLICED CHANNELS Join together 14x channel sections using 7x channel joiners (Part CSJ) 2 x 81A NOTE: Some channels may have holes in them - You will need to redrill holes where CSJ joining channel covers them.
  • Page 8 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH WALL AND ROOF COMPONENT OVERVIEW Absco Industries Assembly Instruction Manual Model: 30082EK 22/11/18...

  • Page 9: Rear Panel Assembly

    ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH REAR PANEL ASSEMBLY 1x required Absco Industries Assembly Instruction Manual Model: 30082EK 22/11/18...

  • Page 10: Side Panel Assembly

    ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH SIDE PANEL ASSEMBLY 1x Right side panel. 1x Left side panel. Absco Industries Assembly Instruction Manual Model: 30082EK 22/11/18...
  • Page 11 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH ROOF PANEL ASSEMBLY 1x required ONE ROW OF HOLES THIS END TWO ROWS OF HOLES THIS END SECURE THIS ROW OF HOLES TO THE REAR WALL (REFER PAGE 14)

  • Page 12: Front Panel Assembly

    ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH FRONT PANEL ASSEMBLY 1x required 15mm FLANGE NOTE: THERE ARE NO PRE-DRILLED HOLES 20mm FLANGE FOR THESE PANELS. PLEASE PRE-DRILL BEFORE ASSEMBLY. NOTE: PRE-PUNCHED EDGE HOLES TO THE OUTSIDE ENDS OF THE PANEL.

  • Page 13: Door Panel Assembly

    ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH DOOR PANEL ASSEMBLY 2x required NOTE: THERE ARE NO PRE-DRILLED HOLES FOR THESE PANELS. PLEASE PRE-DRILL BEFORE ASSEMBLY. 20mm FLANGE 15mm FLANGE WHEEL ASSEMBLY HEIGHT ADJUSTMENT SCREW WHEN INSTALLING THE DOORS, USE THIS...
  • Page 14 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH DOOR PANEL ASSEMBLY CHECK THAT THE HOLE CENTRE OF EACH DOOR HANDLE IS 32mm AS SHOWN. (SOME DOOR HANDLES MAY DIFFER) MARK OUT THE HOLE CENTRES HALF WAY UP EACH DOOR. IT IS...
  • Page 15 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH PANEL CONSTRUCTION NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. The base channels are not pre-punched.
  • Page 16 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH FINAL CONSTRUCTION ANCHORING OF SHED Location of 8 concrete anchors Bolt and Nut* M10 4.6/S Wall Sheet Steel Angle* 35 x 35 x 3 Each anchor consists of one nut, bolt, M10 dynabolt and steel angle.
  • Page 17 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH DOOR TRACK AND TRIM ASSEMBLY 32mm FIT TWO SMALL PLASTIC ANGLES (PART 264) TO THE SLIDING DOOR BASE TRACK AS SHOWN WITH TWO POP RIVETS PER ANGLE. THESE ANGLES WILL PREVENT THE DOORS FROM...
  • Page 18 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH DOOR TRACK AND TRIM ASSEMBLY LIFT THE DOORS INTO POSITION, WITH THE TOP OF EACH DOOR LOCATED BETWEEN THE FRONT WALL AND THE TRACK SUPPORT (55H) FRONT TRIM AS SHOWN, BEFORE MOVING THE BOTTOM TRACK INTO POSITION.
  • Page 19 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH Absco Skillion Roof Shed Notes General • 1.G This instruction manual shall be read in conjunction with other consultants drawings, specifi cations and written instructions provided by Absco and/or their representatives.
  • Page 20 ABSCO EZISLIDER SHED MODEL: 30082EK 3.00mW x 0.78mD x 1.80mH, 1.95mH Absco Skillion Roof Shed Notes Steelwork • 1.S All structural steelwork shall have a corrosion protection system applied consistent with AS/NZS 2312- 2002. • 2.S All structural steelwork detailed within this installation manual shall be minimum Grade 550 for roll formed sections (including roof and wall sheeting) and Grade 250 for angle sections.
  • Page 21 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
  • Page 22 Lifetime Warranty Statement This warranty against defects is given by: Absco Industries (ABN: 77 869 708 678) Address: PO Box 119 Acacia Ridge QLD 4110 Ph: 1800 029 701 Fax: 07 3344 1191 Email: admin@absco.com.au Date of issue: 19 December 2018 Details of Manufacturer’s Warranty This product comes with a Lifetime structural warranty from the date of purchase.
  • Page 23 IMPORTANT 1. Manufacturer’s Disclosure This warranty against defects shall not apply in the following situations: A) Where the product is not assembled in accordance with the instructions provided in the product kit; B) Where the product is used to store corrosive materials such as fertilizer, chlorine etc; C) The warranty does NOT cover damage caused by storms, wind, rain, snow or poor foundations;...
