ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15
Absco Premier Garden Shed
Assembly Instructions
Model: J30302G

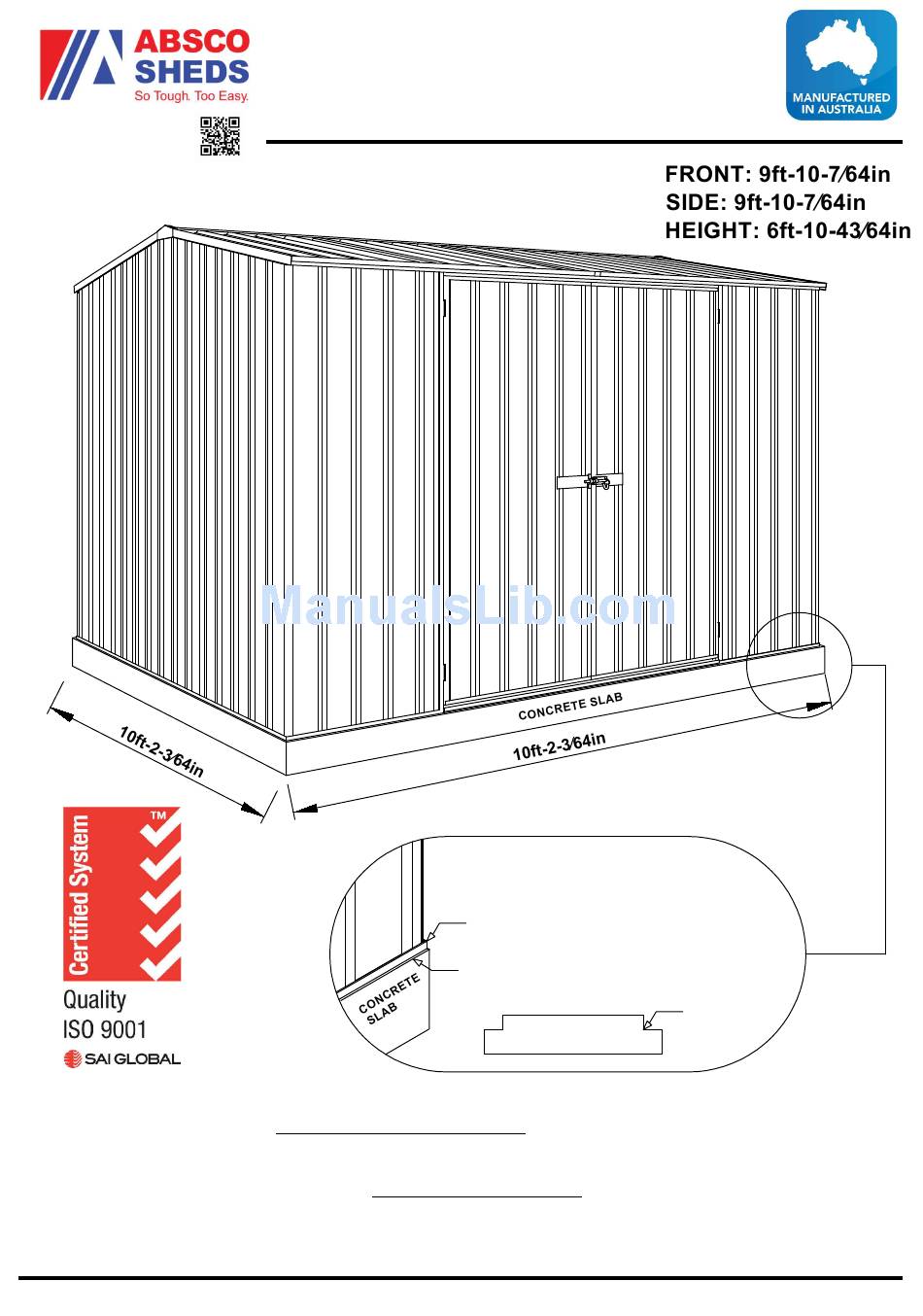

WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A REBATED
EDGE 1in DEEP AROUND THE PERIMETER
CHANNEL
THIS WILL HELP
WATER EGRESS FROM
REBATED EDGE
THE BASE OF THE SHED
CONCRETE SLAB
CUSTOMER SUPPORT - 800-305-4436
3in WIDE
REBATE
PAGE 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ABSCO SHEDS J30302G
Summary of Contents for ABSCO SHEDS J30302G
- Page 1 At ABSCO Industries we are always looking to be number ONE, so please let us know what you think of our instructions. Feedback makes us better. feedback@absco.com.au ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 1...
- Page 2 Do not erect your shed in windy conditions, ensure that the shed is securely anchored to a solid foundation immediately after construction is completed. It is highly recommended to erect the shed with two or more people. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 2...
-
Page 3: Component Description
STEEL SHEET Part No. Here STEEL SHEET STEEL SHEET PEAK BRACE STEEL SHEET CHANNEL WITH HINGES STEEL SHEET CHANNEL STEEL SHEET CHANNEL STEEL SHEET PLASTIC SCREW CAPS ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 3... - Page 4 SELF DRILLING HEX PADBOLT HEAD TEK SCREWS (NO HASP HOLE REQUIRED) HEX TEK SCREW ASSEMBLY DRIVER BIT INSTRUCTIONS PHILLIPS HEAD DRIVER BIT No. 30 & 11/64in DRILL BIT ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 4...
- Page 5 55CL 55CR CHANNEL CHANNEL 55BL 55BR CHANNEL CHANNEL 81BL 81BR CHANNEL CHANNEL 81AL 81AR CHANNEL CHANNEL 60AL 60AR CHANNEL CHANNEL RIDGE RIDGE 97AL 97AR BEAM BEAM ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 5...
- Page 6 CSJ CSJ positioned equally inside of the joined channels. (on an angle). Push the CSJ into the channel until you here a 'click'. HIGH-SIDE LOW-SIDE ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 6...
- Page 7 1 x 81B 1 X 55AR 1 X 55AL 1 X 55CR 1 X 55CL 1 X 55BR 1 X 55BL 1 X 81BR 1 X 81BL ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 7...
- Page 8 PLACE TEK SCREWS IN 2in INCREMENTS FROM SAID END. REPEAT THIS PROCESS FOR THE OPPOSING HALF OF RIDGE BEAM 2" ABSCO INDUSTRIES ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 CUSTOMER SUPPORT - 800-305-4436 PAGE 8...
- Page 9 SELF DRILLING TEK SCREW QTY. = 2 PARTS 97AL & 97AR QTY. = 1 ZARSP THE TOP SECTIONS OF CAPPING WILL OVERLAP EACH OTHER AT THE JOIN BY 2in. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 9...
- Page 12 Once constructed place shed screw caps over fasteners Do not join components together at this location yet, as the screw may obstruct further assembly of other components ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 12...
-
Page 13: Rear Panel Assembly
(2 Required) TRIM THE TIP OF EACH SHEET OR BEND OUT OF THE WAY TO ALLOW CHANNELS TO FIT HARD UP TO THE EDGE OF THE SHEET ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 13... - Page 14 3. ROOF PANEL ASSEMBLY (2 Required) LAY SHEETS OUT AS SHOWN 2 x PRE-PUNCHED HOLES TO THIS END OF EACH SHEET WITH PART NO. 81A FITTED ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 14...
- Page 15 THE 25/32in SIDE OF THE CHANNELS ARE ON THE OUTSIDE OF SHEET B 25/32in FLANGE 19/32in FLANGE ENSURE CHANNEL 58C OUTER FLANGE SITS OVER UPRIGHT CHANNEL FLANGE FOUR HOLE SET FOR PADBOLT CONNECTION ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 15...
-
Page 16: Front Panel Assembly
UNTIL CHANNELS 55A AND 55C ARE INSTALLED NOTCH ON JAMB 89A AND 89B FITS OVER CHANNEL 55C AND CHANNEL 79A INSERTS INTO 55C WITH SHORTEST SIDE FACING OUT. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 16... -
Page 17: Door Panel Assembly
NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment. position each hasp centrally over the padbolt shaft, and drill holes with No. 30 Drill and secure with screws ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 17... - Page 18 SIDE WALL PANEL CHANNELS FIT INTO THE NOTCHED FRONT AND REAR WALL PANEL CHANNELS CHANNEL TYPE 60A THIS END CHANNEL TYPE 81A THIS END ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 18...
- Page 19 PEAK BRACE TO RIDGE ONE SCREW AT EACH CORNER SCREW AT EACH BEAM AND ROOF PANEL WITH ONE ONLY AT THIS STAGE SCREW AT EACH END ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 19...
- Page 20 - EACH ANCHOR CONSISTS OF ONE NUT, BOLT, DYNABOLT AND STEEL ANGLE SLAB - DRILL A 25/64in HOLE INTO THE WALL SHEET - DRILL A 25/64in HOLE INTO THE CONCRETE DYNABOLT ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30302G 19/06/15 CUSTOMER SUPPORT - 800-305-4436 PAGE 20...
