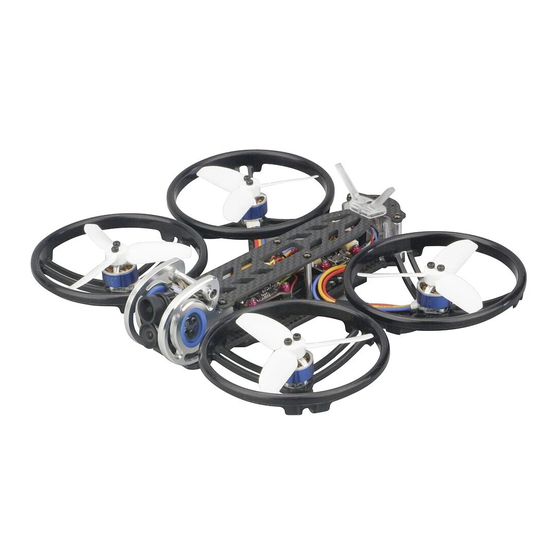

- Page 1 DJ140 PNP Manual User manual and video please visit：WWW.LDARC.COM PRODUCT>>多旋翼>>带卡录HD套机>>DJ140 DJ140 manual DJI FPV Digital RunCam 4K 191213...
- Page 2 Configuration Description KK tower new name Wheelbase：148mm KKT16 mounting size 16*16mm Drone weight：204.6g(DJ140-Digital) KKT20 mounting size 20*20mm 176.8g(DJ140-4K) KKT30 mounting size 30.5*30.5mm 152.6g(DJ140) Configuration Package size : 214*184*90mm FC：KKT20-F411 Old name：F411+OSD（KK tower part） Package weight：641g(DJ140-Digital) ESC：KKT20-E20A Old name：ESC 20A ( KK tower part ) 589g(DJ140-4K) DJ140-Digital : DJI FPV Digital+Camera 573.8g(DJ140)
- Page 3 Pin definition AUDIO BATTERY+ CURRENT BATTERY+ SIGNAL BATTERY+ VIDEO AUDIO PWM4 PWM3 PWM2 PWM1 BATTERY+ BETAFLIGHT 5V(BUZZER+) LED STRIP PPM+RX2-INV BUZZER- TX2-INV BATTERY+ RX2-INV VIDEO Supply voltage is 5V Supply voltage is 3.3V S.BUS and PPM receiver connection DSM2 and DSMX receiver connection PPM or invert RX2 signal input NOT invert RX1 signal input SBUS/PPM...
- Page 4 VTX(IRC-Tramp) Band A 5865 5845 5825 5805 5785 5765 5745 5725 Band B 5733 5752 5771 5790 5809 5828 5847 5866 Band E 5705 5685 5665 5645 5885 5905 5925 5945 Band F 5740 5760 5780 5800 5820 5840 5860 5880 Band H 5658...
- Page 5 DJ140（NO CAM+VTX） DJ140-4K pin definition RunCam 4K DJ140-Digital pin definition DJI FPV Digital...
- Page 6 DJI FPV Install 1.Remove the upper plate, and then stick the EVA 2.Remove the aluminum parts, then refer the picture to on the upper plate install the camera 20#fixed seat TPE(40HA) 3. Weld the DJI FPV cable to the FC 4.The antenna is pre-installed with heat shrink tube DJI FPV Digital 5.
- Page 7 Mounting screw M2*6 M2*6 M2*6 M2*6 M2*8 M2*18 M2*9 M2*6 M2*6 ST2*6 ST2*6 M2*6 M2*6...
- Page 8 Receiver bind AC900(S-FHSS+D16) bind,transmitter(FRSKY X9D/Futaba T18SZ) Bind:Check receiver mode before bind,the first blink after power on indicate the setting, is S-FHSS, is D16 FUTABA S-FHSS BIND:Turn on the TX then power on AC900 while pressing the key, green LED fast blink meaning already in bind mode, user can release the key.
- Page 9 RX2A PRO Bind(S.BUS),transmitter(FLYSKY FS-i6) BIND:Power on the receiver while pressing the key,green LED fast blink meaning already in bind mode, user can release the key,then set your TX into bind mode.Green LED turn off and red LED solid mean bind finished, exit TX from bind mode,receiver’...
- Page 10 Firmware Update BETAFLIGHT firmware allready flash before leave the factory,user just need connect PC to adjust the parameter 1.Open betaflight configuration ,then click ,select FW version MATEKF411 4.0.2- MATEKF411 -05-05-2019 20:33(stable) 2.Click ,then click to download FW to FC, click after FW Connect updating finish into setting menu...
- Page 11 5.Select ESC protocol is DSHOT600,then follow the steps to set up 6.PID setting -10-...
- Page 12 7.Mode setting 8.OSD setting -11-...
- Page 13 9.LED setting -12-...
- Page 14 Product and Factory Code Name Factory Code DJ140-Digital PNP.DJ140-DIGITAL DJ140-4K NO RX PNP.DJ140-4K.NO RX DJ140 PNP.DJ140 DJ140 KIT KIT.DJ140 14.8V 650mAh 50C BAT.14.8V 650MAH 50C 2.8 inch all surround bumper 2.8 INCH PROTECTOR BUMPER(ALL) DJ140 carbon plate PART.DJ140 CARBON PL ATE DJ series aluminum frame PART.DJ SERIES ALUMINUM FRAME 2840-3blade...
