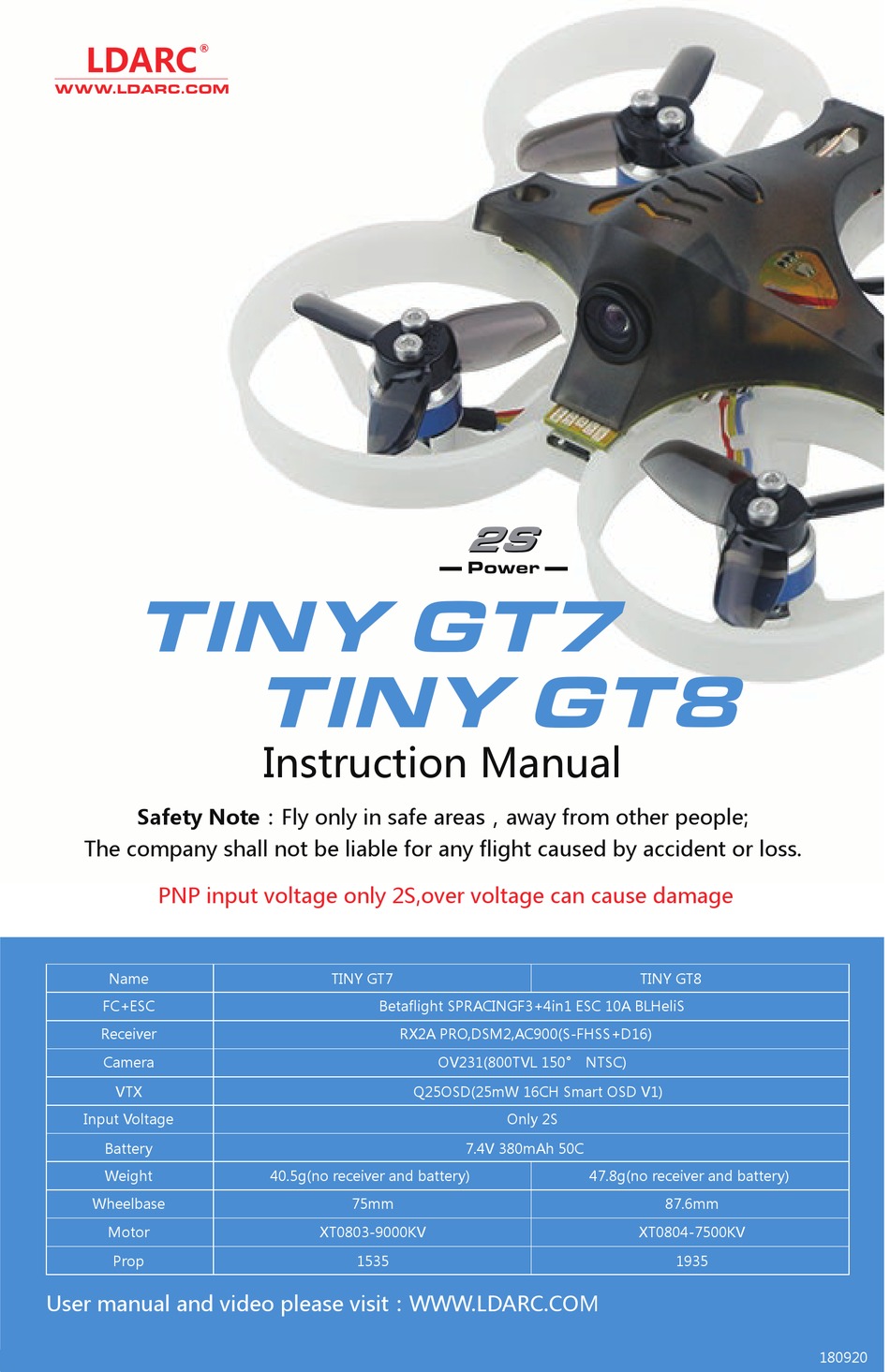

TINY GT7
Safety Note：Fly only in safe areas，away from other people;
The company shall not be liable for any flight caused by accident or loss.
PNP input voltage only 2S,over voltage can cause damage
Name
FC+ESC
Receiver
Camera
VTX
Input Voltage
Battery
Weight
Wheelbase
Motor
Prop
User manual and video please visit：WWW.LDARC.COM
TINY GT8
Instruction Manual
TINY GT7
Betaflight SPRACINGF3+4in1 ESC 10A BLHeliS
RX2A PRO,DSM2,AC900(S-FHSS+D16)
Q25OSD(25mW 16CH Smart OSD V1)
40.5g(no receiver and battery)
75mm
XT0803-9000KV
1535
2S
2S
Power
。
OV231(800TVL 150
NTSC)
Only 2S
7.4V 380mAh 50C
47.8g(no receiver and battery)
TINY GT8
87.6mm
XT0804-7500KV
1935
180920

Advertisement

loading
Need help?

Need help?

Do you have a question about the TINY GT7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LDARC TINY GT7

Summary of Contents for LDARC TINY GT7

  • Page 1 OV231(800TVL 150 NTSC) Q25OSD(25mW 16CH Smart OSD V1) Input Voltage Only 2S Battery 7.4V 380mAh 50C Weight 40.5g(no receiver and battery) 47.8g(no receiver and battery) Wheelbase 75mm 87.6mm Motor XT0803-9000KV XT0804-7500KV Prop 1535 1935 User manual and video please visit：WWW.LDARC.COM 180920...
  • Page 2 Camera：OV231(800TVL 150 NTSC) Motor：XT0803-9000KV Prop：1535 Battery：7.4V 380mAh 50C(XH2.54) Weight：40.5g(no receiver and battery) Receiver：RX2A PRO,DSM2,AC900(S-FHSS+D16) 图形中所有白色部份为透明 图形中所有黑色部份为透明 图形中所有红色部份为透明 1535Prop*4Pairs TINY GT7 PNP*1 7.4V 380mAh ５0C*1 USB Cable*1 Wire transfer*1 Sticker*1 (Color random) TINY GT8 Wheelbase：87.6mm FC+ESC： Betaflight SPRACINGF3 4in1 ESC 10A BLHeliS VTX：Q25OSD(25mW 16CH Smart OSD V1)
  • Page 3 FC+ESC FC Firmware:Betaflight SPRACINGF3 ESC Firmware:BLHeliS C-H-50(16.7[Official]) 1.The FC output voltage 4V can power 5V receiver and LED. 2.Supports only 2S battery input (maximum voltage 8.7V), single-channel 10A battery output when ESC 2S power supply. Receiver 3V3 GND S.BUS Micro USB DSM2 3V3 GND BOOT...
  • Page 4 Motor M4(CW) M2(CCW) Note:Pay attention to the direction of rotation of the motor when installing the prop.The connecting line of the motor is placed below the card position, in case the connecting line and prop touch M3(CCW) M1(CW) VTX+Camera OSD:Smart OSD V1 VTX input voltage:2-3S(7.2-13V)Lipo battery, VTX:5.8G 25mW 16CH (PNP only supports 2S)

  • Page 5: Battery Voltage

    Operating Instructions Short press button,select menu and configuration Press and hold the Enter the OSD Settings screen button,then power on Long press button,enter menu and configuration Button Short press button,Change frequency Power on,then hold the button Press and hold the button 30s,VTX restore factory settings(white LED flashing) Open , Close...
  • Page 6 Receiver AC900(S-FHSS+D16) bind,transmitter(FRSKY X9D/Futaba T18SZ) Bind:Check receiver mode before bind,the first blink after power on indicate the setting, is S-FHSS, is D16 FUTABA S-FHSS BIND:Turn on the TX then power on AC900 while pressing the key, green LED fast blink meaning already in bind mode, user can release the key.

  • Page 8: Battery Charger

    Product and Factory Code TINY GT7 TINY GT8 Factory Code Factory Code Name Name TINY GT7 PNP NO RX PNP.TINY GT7.NO RX TINY GT8 PNP NO RX PNP.TINY GT8.NO RX TINY GT7 PNP AC900 PNP.TINY GT7.AC900 TINY GT8 PNP AC900 PNP.TINY GT8.AC900...
  • Page 9 3.Open UART2，then saved 4.Select ESC protocol“DSHOT600”，set up the receiver protocol,open LED. Please refer to the receiver section to set the receiver protocol...
  • Page 10 5.PID setting 6.Setting the receiver lever neutral position...
  • Page 11 7.Default angle mode,setting of receiver is 5th channel ARM(AUX1) 8.LED setting,then saved When the drone is not flying properly, try to load FC firmware,then restore factory settings 1.Open ，then click ，select firmware SPRACINGF3 3.4.1- SPRACINGF3 -02-08-2018 17:39(stable) 2.Click ，then click to download FW to FC，...

  • Page 12: After-Sale Service

    After Sale Service 1.Provide free reparation service when find the product defect after purchase. 2.Provide pay-needed reparation service when product damage because improper operation. 3.China customers please contact with the after-sales service,overseas client please contact the dealer. PNP/RTF Test report ID : Flight test Package check...
