Feature

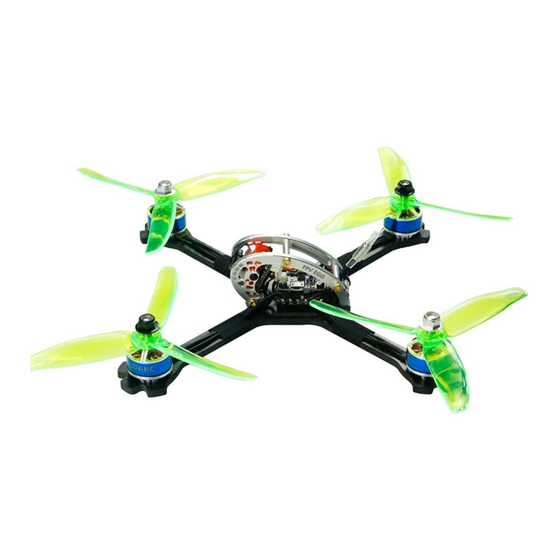

* Extreme light weight 5 inch prop racing drone.
*
FPVEGG PRO used CCD600 camera(1/3 SONY CCD)
* The structure uses 4.0mm thick carbon fiber and 7075 aviation aluminum
alloy material, light weight, high strength.
* Product performance and wheelbase for indoor through the special design.
* BLheliS 4in1 20A ESC ,support MULTISHOT,ONESHOT and DSHOT provedes
a better user experience.
* Modular design, KK TOWER FC(F4+OSD), with the betaflight firmware.
LDARC
200GT Instruction Manual
Weight:190g
Instruction Manual
2017-12-06
8 Pages-Page 1
Advertisement
Related Manuals for LDARC 200GT
Summary of Contents for LDARC 200GT
- Page 1 * Product performance and wheelbase for indoor through the special design. * BLheliS 4in1 20A ESC ,support MULTISHOT,ONESHOT and DSHOT provedes a better user experience. * Modular design, KK TOWER FC(F4+OSD), with the betaflight firmware. LDARC 200GT Instruction Manual 2017-12-06 8 Pages-Page 1...
- Page 2 200GT Configuration Stop using big pithch propeller NOTE: , Suggest using small pitch propeller（LDARC 5*4*3 PROP）, big pithch propeller will cause the motor to overheat. 200GT(with buzzer and LED) Wheelbase:200mm Input voltage:3~4S Lipo KK TOWER(2 Layer) 20*20: F4+OSD 4in1 20A BLheliS...
- Page 3 VTX when 3V3 RC IN DSMX use 2L tower(FC+ESC) RC IN S.BUS/PPM Motor M4(CW) M2(CCW) M3(CCW) M1(CW) Note:pay attention to the direction of rotation of the motor Power 2~4S when installing the prop LDARC 200GT Instruction Manual 2017-12-06 8 Pages-Page 3...
- Page 4 3. Open remote control Bind, press “Enter” and wait a few seconds, then stop Bind when red light flash and green light constant lighting. 4. Disconnect receiver power and power-on again, green light constant lighting means bind success. FS-RX2A Receiver example LDARC 200GT Instruction Manual 2017-12-06 8 Pages-Page 4...
- Page 5 FM800 Receiver example Please select MULT LDARC 200GT Instruction Manual 2017-12-06 8 Pages-Page 5...
- Page 6 KK TOWER ESC(20A) ESC.KK TOWER 20A Motor protector for 18 PART.MOTOR PROTECTOR FOR 18 KK TOWER FC(F4+OSD) FC.KK TOWER(F4+OSD) PART.BOTTOM PLATE.200GT Carbon fiber plate(200GT part) VTX.Q100 PART.FPV EGG 7075 ALUMINUM FRAME Q100 VTX FPV EGG 7075 Aluminum frame CCD600 Camera CAM.CCD600 PLASTIC CARRYING CASE PART.PLASTIC CARRYING CASE...
-
Page 7: Firmware Update
FW updating finish into settings menu. Connect 3.Setting,select , select ESC/Motor Feature,then select DSHT600，then open (LED_STRIP,OSD,DYNAMIC_FILTER). 4.Buzzer setting,select ，then open VBAT 5.Default setting of receiver is 5th channel ARM,6th channel mode switching. 6.PID Default setting 200GT PID LDARC 200GT Instruction Manual 2017-12-06 8 Pages-Page 7... -
Page 8: After-Sale Service
Transmitter functions properly Flying in good condition Camera OK VTX OK Package check Frame Transmitter ID is the same All parts of the installation Insulating sleeves have been installed manual Complete accessories,total packages LDARC 200GT Instruction Manual 2017-12-06 8 Pages-Page 8...
