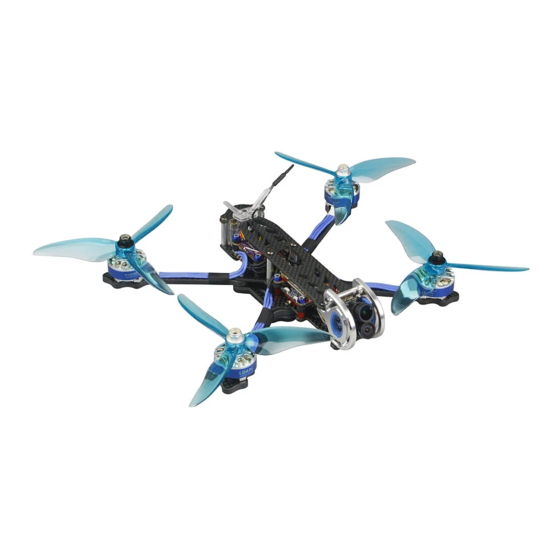

- Page 1 DJ220 PNP Manual User manual and video please visit：WWW.LDARC.COM PRODUCE>>MULTIROTOR>>HD CINE MULTIROTOR>>DJ220 DJ220 manual DJI FPV Digital RunCam 4K 191217...
- Page 2 Damping*6（blue,red clear both 2pcs） Damping*6（blue,red clear both 2pcs） Antenna rack*1 Antenna rack*1 ST2*6*2 ST2*6*2 Video rack*2 Video rack*2 ST1.2*4*4 ST1.2*4*4 M2*6*4 M2*6*4 DJ220 DJ220 PNP*1 51499-3blade*2pairs Sticker*2 battery strap*1 Fixed seat*6 Damping*6（blue,red clear both 2pcs） Antenna rack*1 ST2*6*2 Video rack*2 ST1.2*4*4 M2*6*4...
- Page 3 FC pin definition LED 5V DJI FPV Digital +5V nT2 BAT+ GND GND nR2 GNE BAT- /B08 Supply voltage is 5V Supply voltage is 3.3V S.BUS和PPM接收机连接方式 S.BUS and PPM receiver connection DSM2和DSMX接收机连接方式 DSM2 and DSMX receiver connection PPM or invert RX2 signal input NOT invert RX2 signal input +5V nT2 BAT+...
- Page 4 VTX(IRC-Tramp) 描述 - Wide input voltage and low power consumption 7-24V - 5V@1A high load output - Up to 600mW of output power - 48CH , With self-test output power function - 30.5*30.5mm mounting size - IRC-Tramp Frequency and power control - Button frequency control：shot press once to switch CH（CH1-CH8）...
- Page 5 DJ220（NO CAM+VTX） DJI220-4K pin definition RunCam 4K Video GND VCC(5-20V) 7-24 5V out GND Video DJI220-Digital DJI FPV Digital...
- Page 6 DJI FPV Install 1.Remove the upper plate, and then stick the EVA 2.Remove the aluminum parts, then refer the picture to on the upper plate install the camera 20#fixed seat TPE(40HA) 3. Connect the FC and DJI FPV Digital well 4.The antenna is pre-installed with heat shrink tube DJI FPV Digital 5.
- Page 7 Mounting screw M2*6 M2*6 M2*6 M2*6 M2*6 M2*6 M3*20 M3*6 M2*6 M2*6 M3*20 M3*8 ST2*6 M3*20 M3*6 M3*10 M3*20 M3*20 ST2*6 ST2*6 M3*8 M3*8 ST2*6 M3*6...
- Page 8 Receiver bind AC900(S-FHSS+D16) bind,transmitter(FRSKY X9D/Futaba T18SZ) Bind:Check receiver mode before bind,the first blink after power on indicate the setting, is S-FHSS, is D16 FUTABA S-FHSS BIND:Turn on the TX then power on AC900 while pressing the key, green LED fast blink meaning already in bind mode, user can release the key.
- Page 9 RX2A PRO Bind(S.BUS),transmitter(FLYSKY FS-i6) BIND:Power on the receiver while pressing the key,green LED fast blink meaning already in bind mode, user can release the key,then set your TX into bind mode.Green LED turn off and red LED solid mean bind finished, exit TX from bind mode,receiver’...
-
Page 10: Firmware Update
Firmware Update BETAFLIGHT firmware allready flash before leave the factory,user just need connect PC to adjust the parameter 1.Open betaflight configuration ,then click ,select FW version BETAFLIGHTF4 4.0.4- BETAFLIGHTF4 -01-07-2019 20:36(stable) 2.Click ,then click to download FW to FC, click after FW Connect updating finish into setting menu... - Page 11 5.Select ESC protocol is DSHOT600,then follow the steps to set up 6.PID setting -10-...
- Page 12 7.Mode setting 8.OSD setting -11-...
- Page 13 9.LED setting -12-...
-
Page 14: After-Sale Service
Product and Factory Code Name Factory Code DJ220-Digital PNP.DJ220-DIGITAL DJ220-4K NO RX PNP.DJ220-4K NO RX DJ220 PNP.DJ220 DJ220 KIT KIT.DJ220 DJ220 arm frame PART.DJ220 ARM FRAME XT2306-2500KV MOTOR.XT2306-2500KV KKT30-C2 FLYTOWER.KKT30-C2 KKT30-F4D FC.KKT30-F4D KKT30-E40A ESC.KKT30-E40A KKT30-V600 VTX.KKT30-V600 After Sale Service 1.Provide free reparation service when find the product defect after purchase. 2.Provide pay-needed reparation service when product damage because improper operation.
