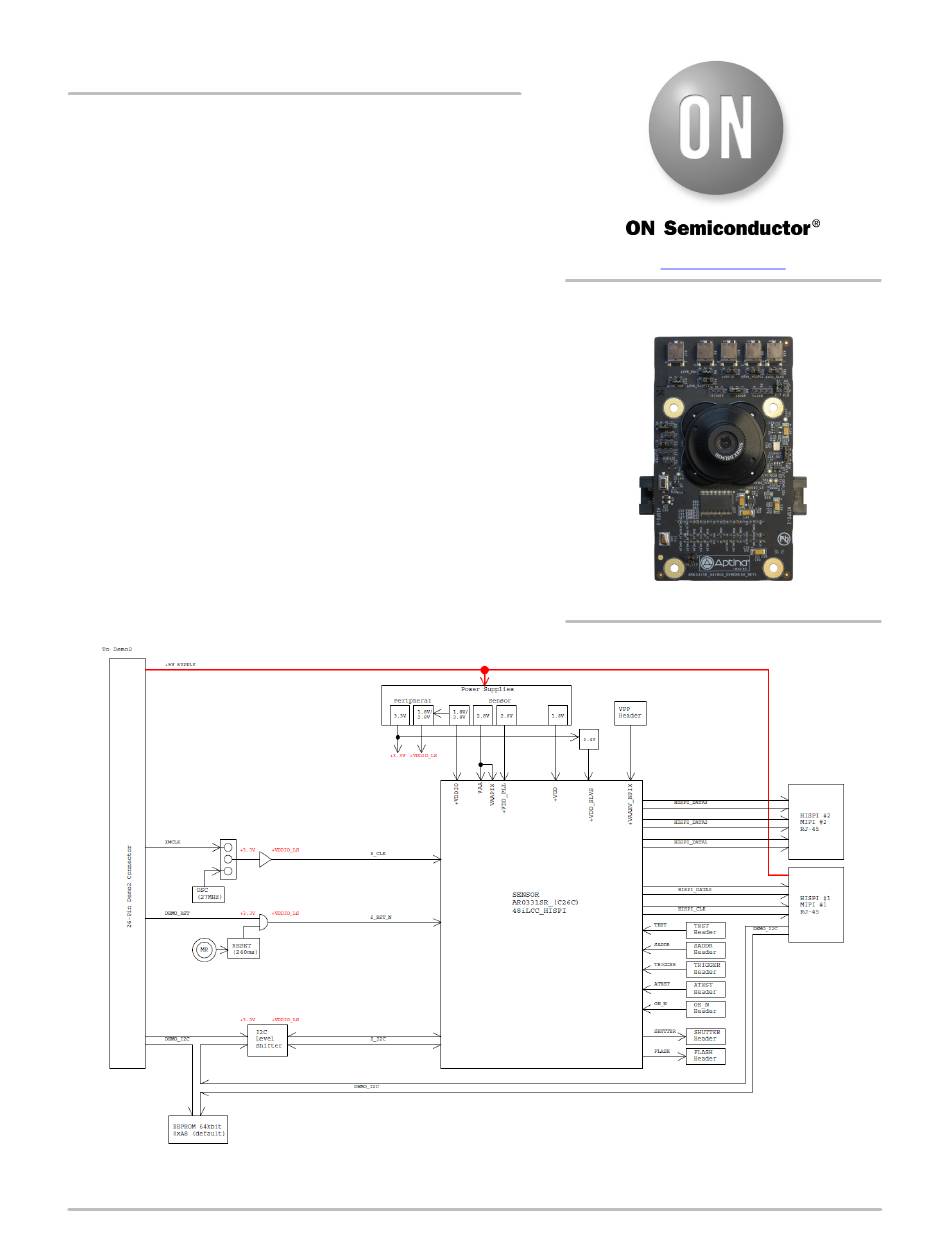

AR0331SRSC00SUCAH-GEVB
AR0331SR Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.

Features

Clock Input
Default – 27 MHz Crystal Oscillator
Optional Demo 2X Controlled MClk
Two-wire Serial Interface
Selectable Base Address
Parallel Interface
HiSPi (High Speed Serial Pixel) Interface
ROHS Compliant

Block Diagram

© Semiconductor Components Industries, LLC, 2016
February, 2016 − Rev. 0
Figure 2. Block Diagram of AR0331SRSC00SUCAH−GEVB
EVAL BOARD USER'S MANUAL

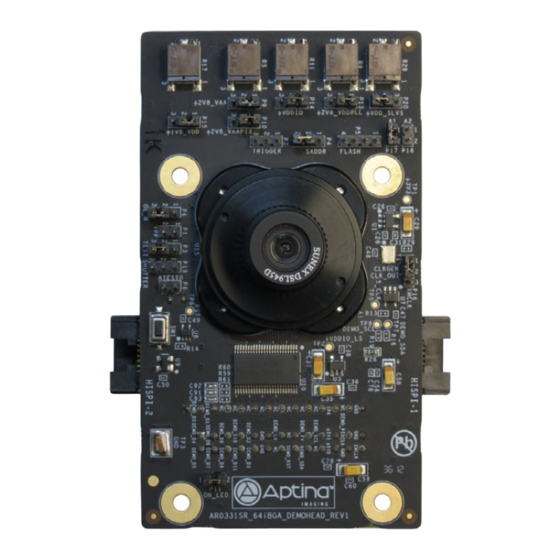

Figure 1. AR0331SR Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2377/D
