  • Page 1 User’s manual...

  • Page 2: Table Of Contents

    CONNECTING TO A VIDEO SCREEN..........1 4 CONNECTING TO A COMPUTER..........1 6 DESCRIPTION OF THE CONNECTION BOXES........1 8 MAINTENANCE..............2 1 AFTER-SALES SERVICE............2 3 TECHNICAL FEATURES............2 6 SOPRO 717 First • User’s manual...

  • Page 3: Foreword

    WARNING: the term WARNING refers to the incidents likely to disturb the smooth running of the imaging system. NOTE : the term NOTE highlights particular points in order to facilitate the system maintenance or to clarify important information. SOPRO 717 First • User’s manual...

  • Page 4: Dental Camera Introduction

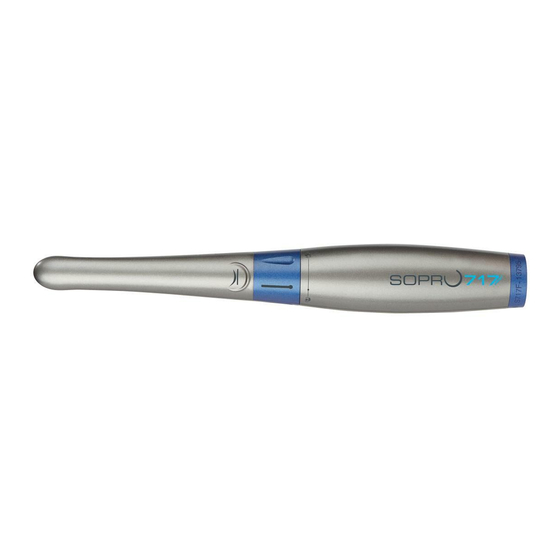

    This fl uorescence Imaging device is composed of a handpiece (SOPRO 717 First) and a connection box (DOCK M_USB2, DOCK M_VIDEO, DOCK MU_USB2, DOCK U_USB2, DOCK MU_VIDEO, DOCK USB2) as well as various accessories necessary for it to work.
  • Page 5 The device was designed and developed with its accessories in order to guarantee to you safety and performance maximum. The use of different origin accessories can represent a risk for you, your patients and your device. SOPRO 717 First • User’s manual...

  • Page 6: Safety Instructions

    Modifi cation of the product, without the permission of the manufacturer, is prohibited. CAUTION: If the medical equipment is changed, an appropriate control and test should be performed to ensure that the medical equipment still can be used safety. SOPRO 717 First • User’s manual...

  • Page 7: Regulatory Requirements

    • Reposition the product according to the receiver. • Take the computer away from the receiver. The SOPRO camera is designed and tested to be used in a home environment, class B Group 1, according to CISPR11 standard. SOPRO 717 First • User’s manual...
  • Page 8 Please respect the standards relative to waste disposal in force in the installation country. For more details about the device treatment, recuperation and recycling, please contact your dental device distributor (or failing that, the group ACTEON site www.acteongroup.com), so that you can be informed of the procedure.
  • Page 9 SOPRO device may be used in all domestic environments, including Harmonic emissions Not applicable the ones directly connected to the public low voltage power EN 61000-3-2 distribution network used to supply household buildings. Voltage fl uctuations / Flicker Applicable EN 61000-3-3 SOPRO 717 First • User’s manual...
  • Page 10 3 A/m 3 A/m be at a characteristic level of a location in a traditional (50/60 Hz) commercial or hospital environment. Note: Ut is the power voltage nominal value applied during the trial. SOPRO 717 First • User’s manual...
  • Page 11 Note 1 : At 80 MHz and 800 MHz, the higher frequency band applies. Note 2 : These recommendations may not apply in every situation. Electromagnetic wave propagation is modifi ed by the absorption and refl ection due to the structures, objects and persons. SOPRO 717 First • User’s manual...
  • Page 12 Note 1 : At 80 MHz and at 800 MHz, the separation distance given in the higher frequency band applies. Note 2 : These recommendations may not apply in every situation. The electromagnetic wave propagation is modifi ed by absorption and refl ection due to the structures, objects and persons. SOPRO 717 First • User’s manual...

  • Page 13: Installation

    (or when you put the handpiece on its holder), the last stored image is displayed on the screen or the last four if you were in four-image mode, or the colour-bar pattern if no image was stored (except on Dock USB2 and Dock U_USB2). SOPRO 717 First • User’s manual...
  • Page 14 On the handpiece, there is a rotating ring used to focus from “0” to infi nite. To simplify handling, we have pre-set four positions corresponding to the main camera uses. Extra-oral (Portrait). Intra-Oral (1 to 5 teeth). Macro (details that cannot be seen with naked eye). SOPRO 717 First • User’s manual...

  • Page 15: Connecting To A Video Screen

    • When powering on, the camera automatically selects the one-image mode. • To switch to four-image mode, press SoproTouch or more than three seconds (until a black fl ash appears on the screen or, if SOPRO 717 First • User’s manual...
  • Page 16 A third little slight touch (or press) will store a second image in another quarter of the screen and so on until obtaining the four images. NOTE : The footswitch must be conformed IPX1 according to IEC 60529 standard (Article 15.4.7.3 of IEC 60601-1 ed3 standard). SOPRO 717 First • User’s manual...

  • Page 17: Connecting To A Computer

    MAC® Book Pro 13.3’’ ou iMac® 21.5’’ iMac® 27’’ Operating system MAC® OS X 10.6 Snow Leopard MAC® OS X 10.7 Lion Processor Intel® Core 2 Intel® Core i7 Memory 2 GB 4 GB SOPRO 717 First • User’s manual...
  • Page 18 Refer to the Sopro Imaging owner’s manual that is on the Sopro Imaging CD-ROM in the document directory. 7.6. SOPRO IMAGING SOFTWARE CONFIGURATION WITH THE CAMERA Refer to the Sopro Imaging owner’s manual that is on the Sopro Imaging CD-ROM in the document directory. SOPRO 717 First • User’s manual...

  • Page 19: Description Of The Connection Boxes

    24 V~; 50 Hz - 60 Hz; 15 VA. 8.4. DOCK USB2 POWER SUPPLY The dental camera electrical supply is directly performed through the computer USB port. The voltage powering the camera is of continuous 5 V low voltage type (0.5 A). SOPRO 717 First • User’s manual...
  • Page 20 Class II power supply not grounded. The plug of the power supply is used as the disconnecting device on the network. Only for M_USB2 and M_VIDEO docking stations. Dental barriers for single use. Video output. Handpiece connection. Footswitch connection. Continuous voltage. USB2 output. SOPRO 717 First • User’s manual...
  • Page 21 Product compliance according to the European directive 93/42/EEC relative to medical devices. Grounding (for MU_USB2 and MU_VIDEO docking stations). The devices that connect to video or USB outputs should comply with IEC 60950 standard. SOPRO 717 First • User’s manual...

  • Page 22: Maintenance

    Do not directly spray disinfecting products on SOPRO products. WARNING: Infection control procedures must be observed when using accessories such as SOPROTIPS and dental barriers in order to prevent cross contamination risk from one patient to another. SOPRO 717 First • User’s manual...
  • Page 23 Do not rinse.  Pierre Rolland. the equipment until visible Do not immerse in a  cleanliness is obtained. disinfecting liquid. Allow to dry in the open air.  Carefully close the packaging  box. SOPRO 717 First • User’s manual...

  • Page 24: After-Sales Service

    This warranty does not apply to misused, modifi ed, untended, or accidentally damaged products, or products subject to abnormal use and handling conditions. The distributors, othVer than ACTEON Group’s subsidiaries, are not authorized to apply an extended warranty period on behalf of SOPRO.
  • Page 25 2. Check the camera is correctly detected in the device driver (correct installation of its driver). • Connection problem. 3. Check the USB cable coming from the DOCK is correctly connected to the HUB. SOPRO 717 First • User’s manual...
  • Page 26 If any material we sent was damaged during transportation, the repair charges will be billed either to the carrier (if the discrepancies were made within the period) or to the recipient. Check as soon as possible that all material is correctly working. SOPRO 717 First • User’s manual...

  • Page 27: Technical Features

    • 1 PAL or NTSC video output. • 1 PAL or NTSC S-video output. • 1 digital USB output 2.0. • Controller dimensions: L: 145; W: 130; H: 35 mm. • Controller weight: 245 g. SOPRO 717 First • User’s manual...
  • Page 28 • 1 PAL or NTSC video output. • 1 PAL or NTSC S-video output. • 1 digital USB output 2.0. • Controller dimensions: L: 100; W: 72; H: 36 mm. • Dock weight: 190 g. SOPRO 717 First • User’s manual...
  • Page 29 • Not adapted to the use in presence of an anaesthetic mixture fl ammable with air, oxygen or dinitrogen monoxide. • Complies with the European directive 93/42/EEC. • Complies with IEC60601-1 standard. • Complies with IEC60601-2-18 standard. • Complies with UL 60601-1 et CSA 60601-1 standard. SOPRO 717 First • User’s manual...
  • Page 30 SOPRO • A company of ACTEON Group • ZAC Athélia IV - Avenue des Genévriers - 13705 LA CIOTAT cedex • FRANCE Tel + 33 (0) 442 98 01 01 • Fax + 33 (0) 442 71 76 90 E-mail : info@sopro.acteongroup.com • www.acteongroup.com...
