Summary of Contents for Acteon Piezotome 2 LED

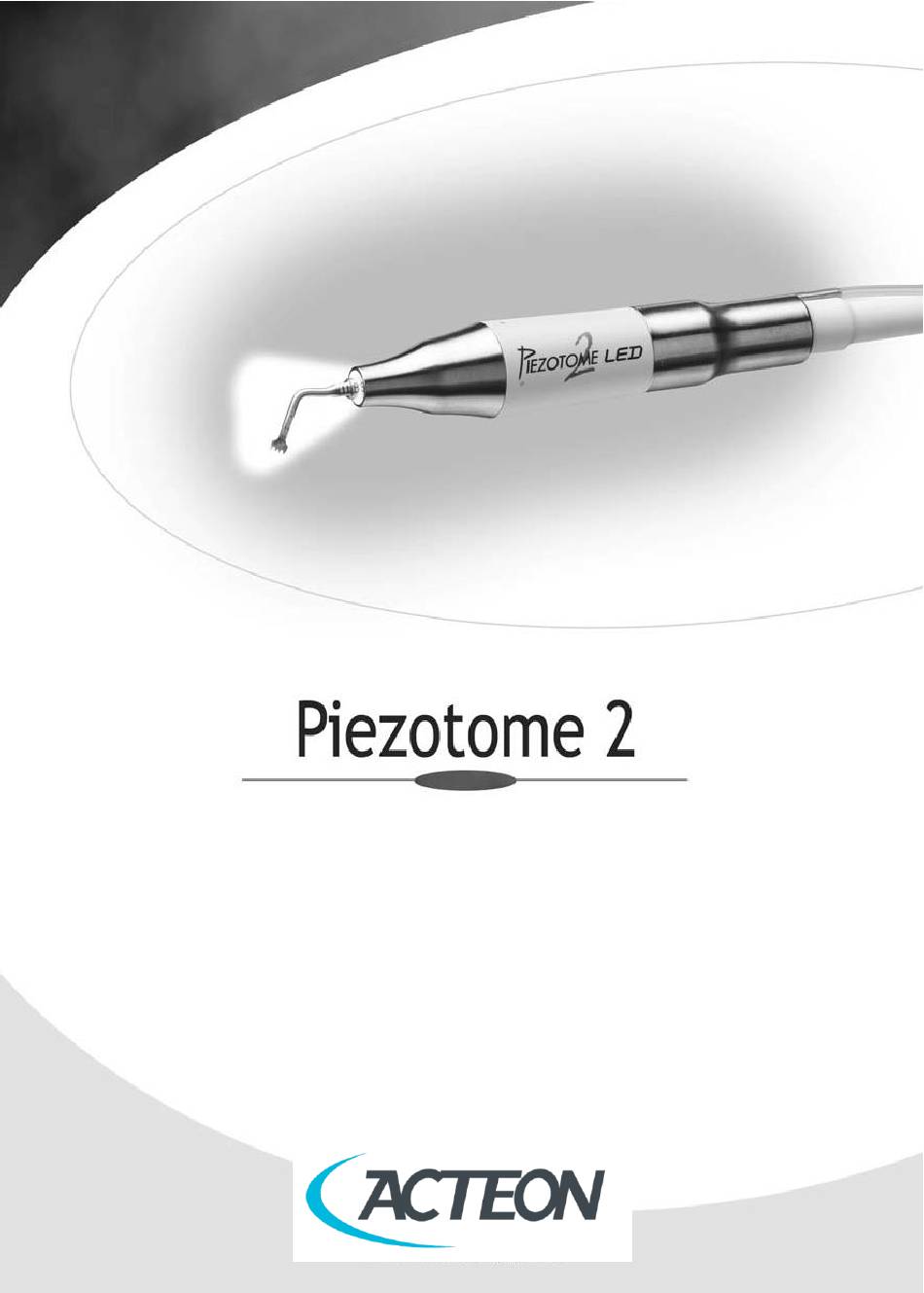

  • Page 1 User’s manual...
  • Page 2 Fig. / Abb. 1 2 / 12 – User’s manual | Piezotome 2 Handpiece | J12821 | V4 |09 | 04/2018 | NO40EN050D...
  • Page 3 This document is an English translation of the original French version. Reference J12820 version V4 and drawing number NO40FR050D User’s manual | Piezotome 2 Handpiece | J12821 | V4 |09 | 04/2018 | NO40EN050D - 3 / 12...
  • Page 4 4 / 12 – User’s manual | Piezotome 2 Handpiece | J12821 | V4 |09 | 04/2018 | NO40EN050D...
  • Page 5: Associated Documentation

    ASSOCIATED DOCUMENTATION This document must be used in association with the following documents: Document title References Consulting electronic user instructions J00007 Implant Center 2 user’s manual I27200 Piezotome 2 user’s manual I57420 Piezotome Solo user’s manual I57500 ELECTRONIC DOCUMENTATION The user instructions for your device are available in electronic format on the specified website and not in printed format.

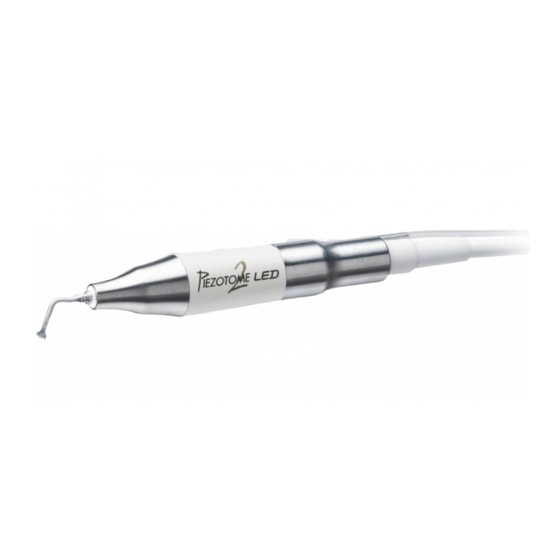

  • Page 6 The P LED handpiece is equipped with a piezoelectric transducer. IEZOTOME It has a light function for optimal lighting of the procedure site. This light function is achieved by a LED ring consisting of high-performance LEDs, giving a considerably longer life than conventional optical fiber or bulb technologies.
  • Page 7: Maintenance

    II - MAINTENANCE Precaution: rinse the water circuit of the P LED handpiece-insert assembly under running water for 20 to IEZOTOME 30 seconds after each use. Caution: do not connect the P LED handpiece- cord assembly from the unit when the instrument is IEZOTOME powered and the control pedal is activated.
  • Page 8 c) Drying Dry with a clean, non-woven single-use cloth, so as to remove any traces of liquid. d) Sterilization conditions Place in single-use sterilization pouches or bags in compliance with the specifications defined in standard EN ISO 11607-1, or in any equivalent standard required by the national regulations. It is essential to sterilize the handpiece, with the tip removed.
  • Page 9: Troubleshooting

    2. 3 TROUBLESHOOTING Refer to the table AULT OSSIBLE AUSE EMEDY No spray Incorrect irrigation line connection Check the irrigation line connection Obstructed tip Remove obstruction No water at tip but vibration present Incorrect spray adjustment Adjust spray Insufficient power - Worn or deformed tip Replace tip Low vibration...
  • Page 10: Manufacturer Identification

    MANUFACTURER IDENTIFICATION SATELEC A Company of ACTEON Group 17, avenue Gustave Eiffel BP 30216 33708 MERIGNAC cedex France Tel. +33 (0) 556.34.06.07 Fax. +33 (0) 556.34.92.92 E.mail : satelec@acteongroup.com www.acteongroup.com BRANCH ADDRESSES AUSTRALIA/NEW ZEALAND CHINA ACTEON AUTRALIA/NEW ZEALAND ACTEON CHINA...
  • Page 11 CAMBS PE19 8EP - UK info.hk@acteongroup.com Tel. +44 1480 477 307 THAILAND Fax. +44 1480 477 381 ACTEON (THAILAND) LTD info.uk@acteongroup.com 23/45 Sorachai Building 16th floor - Sukumvit 63 LATIN AMERICA Road, Klongton Nua - Wattana, BANGKOK 10110 ACTEON LATINA AMERICA - THAILAND Bogotà...
  • Page 12 User’s manual | Piezotome 2 Handpiece | J12821 | V4 |09 | 04/2018 | NO40EN050D...
