Dimensional Drawing - progressive automations FLT-04 User Manual

Hide thumbs Also See for FLT-04:
Table of Contents

Advertisement

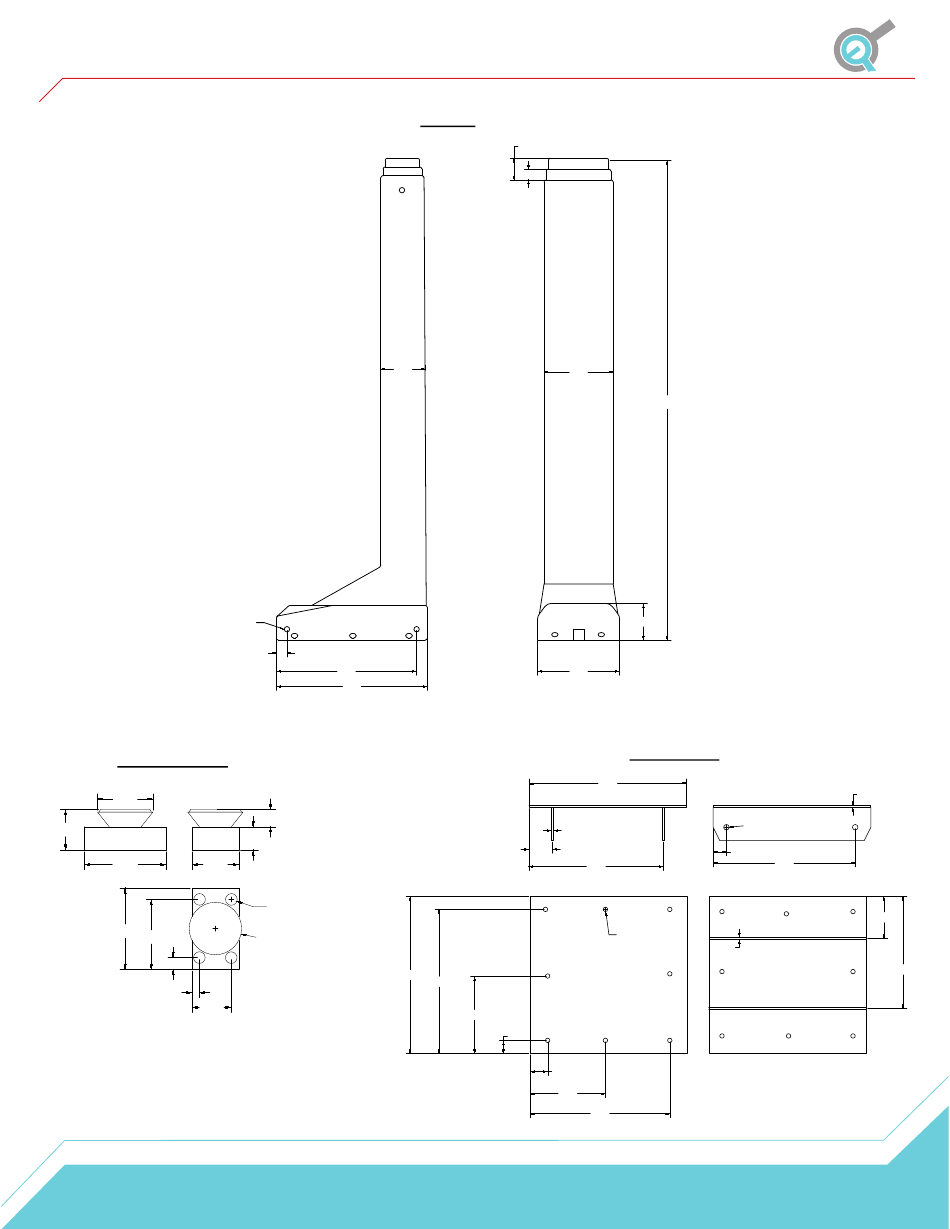

Dimensional Drawing

M6X10
Stand-Offs
1.9"
1.4"
2.8"
1.6"
2.8" 2.4"
0.4"
0.2"
1.3"
Legs
2.0"
0.5"
6.5"
7.0"
0.6"
0.8"
Ø0.4"
Ø1.8"
7.1"
1.0"
0.5"
3.2"
3.8"
7.1"
0.1"
1.0"
6.1"
6.5"
3.5"
0.6"
0.8"
3.4"
6.3"
22.0"
1.7"
Brackets
Ø0.25"
0.6"
6.4"
Ø0.20"
0.1"
0.1"
1.9"
5.1"
