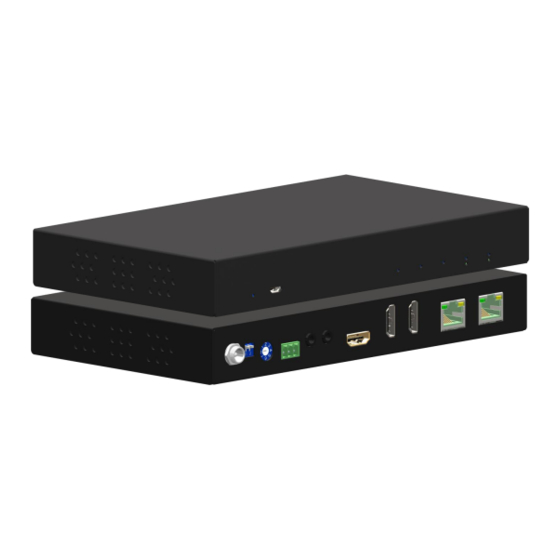

SP-5002VZC
1x2 4K-HDR HDMI Splitter over Single
Cat.X with HDBaseT-Lite, IR, RS-232,
PoC & Loopout
User Manual
The SP-5002VZC
PoC & Loopout
been certified for international use. However, like all electronic equipments, the SP-5002VZC should
be used with care. Please read and follow the safety instructions to protect yourself from possible
injury and to minimize the risk of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION ................................................................................................................. 1
FEATURES ......................................................................................................................... 1
PACKAGE CONTENTS ...................................................................................................... 2
SPECIFICATIONS .............................................................................................................. 3
PANEL DESCRIPTIONS ..................................................................................................... 4
IR PASS-THROUGH ........................................................................................................... 6
CONNECTION DIAGRAM ................................................................................................... 7
NOTICE............................................................................................................................... 8
WARRANTY ...................................................................................................................... 10
rev: 190529
Made in Taiwan
1x2 4K-HDR HDMI Splitter over Single Cat.x with HDBaseT-Lite, IR, RS-232,
has been tested for conformance to safety regulations and requirements, and has
Advertisement
Table of Contents
Related Manuals for Gomax SP-5002VZC
Summary of Contents for Gomax SP-5002VZC
- Page 1 PoC & Loopout has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the SP-5002VZC should 1x2 4K-HDR HDMI Splitter over Single be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 2 ● 1x DC 12V 3.33A without losing quality. SP-5002VZC supports all 3D formats, the true 4K 2K video and provides two HDMI ● 1x User Manual local loopouts. In addition, SP-5002VZC is also equipped with bi-directional IR pass-through path and ●...
- Page 3 SPECIFICATIONS PANEL DESCRIPTIONS Front Panel Model Name SP-5002VZC Technical Role of usage 1x2 Distribution Amplifier (Splitter) HDMI compliance HDMI 2.0a HDCP compliance Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) Transmission over 1080p@60 60m (198ft) [CAT5e]...
- Page 4 IR PASS-THROUGH EDID Management Rotary control: Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 7.1ch audio MODE 0 Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 2ch audio MODE 1 IR Extenders Ultra HD(4K2K@30)(4K2K@60 420) – 8/10/12bit 3D HDR video & 7.1ch audio MODE 2 Ultra HD(4K2K@30)(4K2K@60 420) –...
- Page 5 CONNECTION DIAGRAM NOTICE 1. While connecting a new monitor to the splitter, experiencing a short period of time without display might be expected. The splitter will do Automatic EDID learning which analyzes the newly connected monitor to see if the EDID for the HDMI input is necessary to update! 2.
- Page 6 SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the SP-5002VZC features and specifications is subject to change without further notice.
