Summary of Contents for MONDEX Tahko M

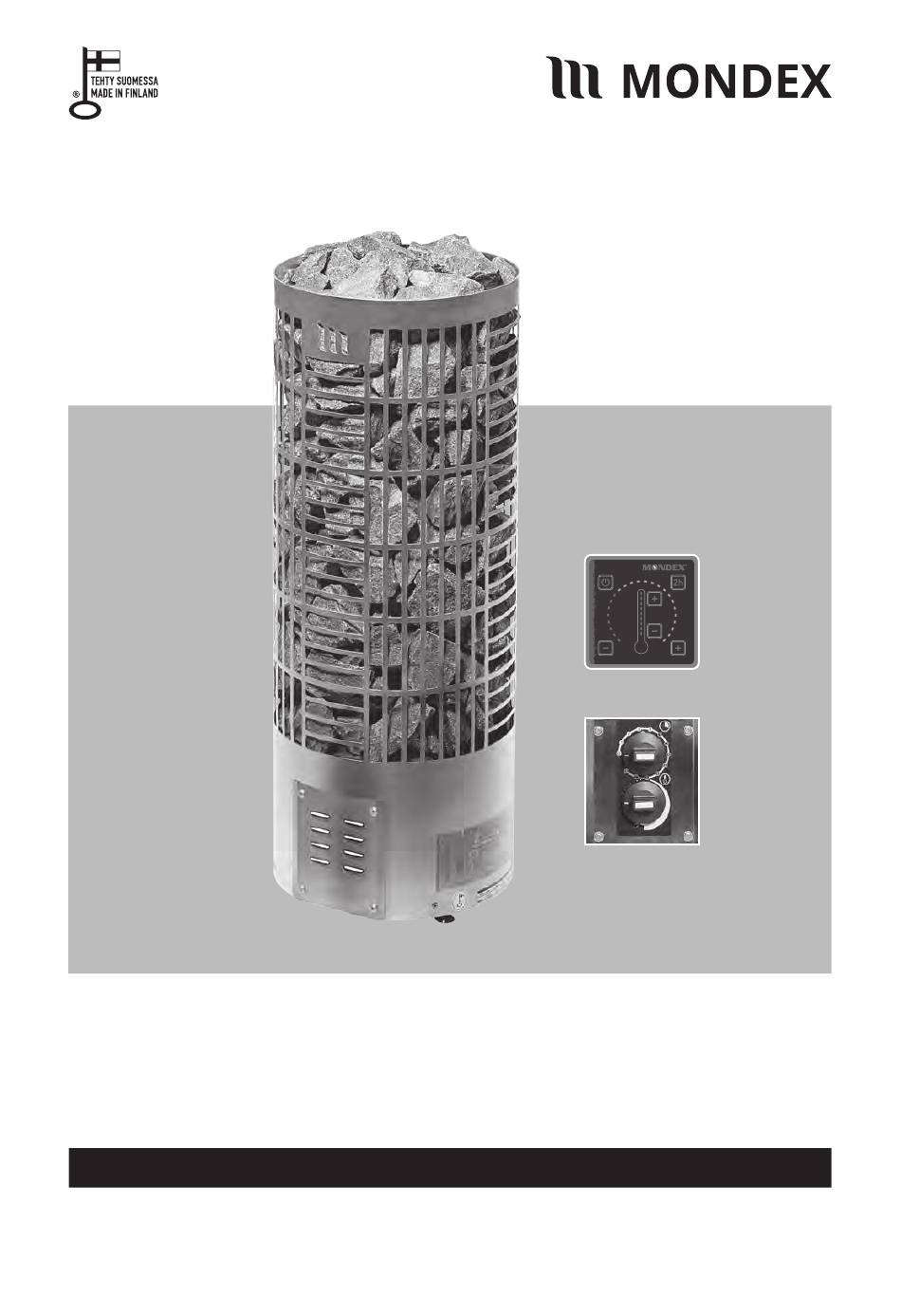

- Page 1 InstallatIon and operatIng InstructIons tahko M and E Types 12/2017...
-
Page 2: Table Of Contents
Contents 1 general safety instructions 2 tahko heater M and e types 3 Heater assembly and installation Stacking the stones 4 technical specifications Heater power and voltage Heater dimensions Required amount of stones Minimum distances to inflammable material 5 general instructions for users of tahko heaters Note Installation cable Additional connection options... -
Page 3: General Safety Instructions
Electrical connections may only be carried out by an electrician with valid installation authorization according to the current regulations. The Mondex electric heater is suitable for use in a family sauna, one (1) heater per sauna room. Retain the installation and operating instructions for further reference. -
Page 4: Tahko Heater M And E Types

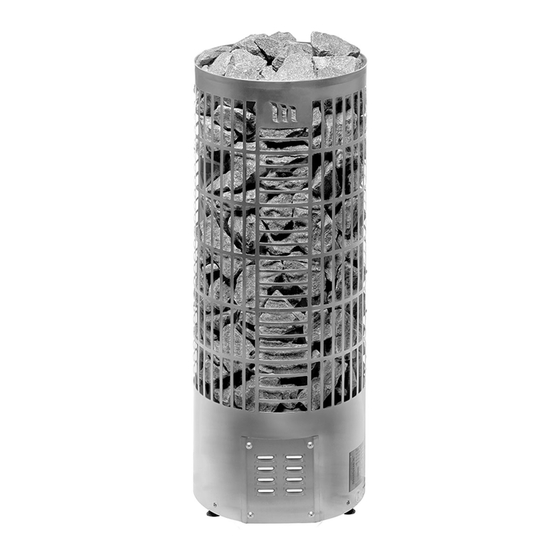

2. Tahko heater models M type heater E type heater Installation and Operating Instructions Tahko... -
Page 5: Heater Assembly And Installation
When stacking the stones, be careful to avoid damaging or denting the heater’s metal or painted surfaces. Dents caused by the user are not covered by Mondex’s warranty or other product liability. Installation and Operating Instructions Tahko... -
Page 6: Technical Specifications
4. Technical specifications Heater tahko 6.6 tahko 9.0 tahko 10.5 Power kW 10.5 Voltage 400 V 3N 400 V 3N 400 V 3N Connecting cable 5 x 1,5 mm² 5 x 2.5 mm² 5 x 2.5 mm² Fuse 3 x 10 A 3 x 16 A 3 x 16 A Sauna size... -
Page 7: Minimum Distances To Inflammable Material
Minimum distances to inflammable material (mm) type Volume Tahko 6.6 1900 6–9 m³ Tahko 9.0 1900 8–15 m³ Tahko 10.5 2000 12–22 m³ Table 4.4 Minimum distances to inflammable material (mm) Installation and Operating Instructions Tahko... -
Page 8: General Instructions For Users Of Tahko Heaters
5. General instructions for users of Tahko heaters Note Electrical connections may only be carried out by an electrician with valid installation authorization according to the current regulations. The Tahko electric heater is suitable for use in a family sauna, one (1) heater per sauna room. -
Page 9: Sauna Room Structure
Sauna room structure The sauna and its ceiling, in particular, should have good thermal insulation, as heat tends to escape through the ceiling. Due to the moisture, we recommend that you use aluminium paper. The size of the heater should be selected according to the size of the sauna (in cubic metres). In addition to calculating the power need for the regular sauna structure (glass wool–foil–wood), the following should be taken into consideration. -
Page 10: Time Switch And Thermostat Operation M Type
8. Time switch and thermostat operation M type Time switch Thermostat Overheat protector reset switch The time switch (4+8 h) is also the heater’s main switch. After a set time, the time switch automatically switches the heater off. With the timer function, the heater can be set to switch on in 1–8 hours. The maximum warm-up time is 4 hours. -
Page 11: Installation Instructions E Type
9. Installation instructions E type Changing room Utility room Controller Sauna Sensor Switch- board Supply cable 5 x 1.5 mm / 5 x 2.5 mm ca. 250 mm Sensor ca. 250 mm Controller Installation and Operating Instructions Tahko... -
Page 12: Installation Of External Control And Sensor
Installation of external control and sensor The type E heater package includes: Controller Sensor The most suitable location for installing the wall sensor is on the wall where the benches are mounted. Its distance to the ventilation duct should be at least 50 mm. Drill a 3.5 mm hole in the wall panel and route the wire under the panel to the heater. -
Page 13: Wiring Diagram E Type
10. Wiring diagram E type OVERHEATING PROTECTION controller card wiring, heater controller card wiring, controller Quick connector White Grey To the controller Green Blue To the overheating protector White White To the temperature sensor Black Black Installation and Operating Instructions Tahko... -
Page 14: Heater Control And Operation E Type
11. Heater control and operation E type Power switch Quick start Temperature control Operating time Temperature The heater is operated by adjusting its operating time and temperature, and then by switching the heater on from the Operating time adjustment power switch. normal start: Select the operating hand corner has turned off, the heater calibration is complete. -
Page 15: Troubleshooting
In case of a fault that cannot be solved, please contact the store where you purchased the heater or email info@mondex.fi. Spare parts can be purchased from Mondex distributors and the manufacturer. When purchasing spare parts, please refer to the name, power, serial number and manufacturing date of the heater to ensure you receive the correct parts. -
Page 16: Service History
Heater maintenance history We recommend changing the heater stones at one-year intervals. date procedure Premec Oy Kettukallionkatu 4 84100 Ylivieska, Finland info@mondex.fi www.mondex.fi technical support: info@mondex.fi...
