Page 1: Operating Instructions

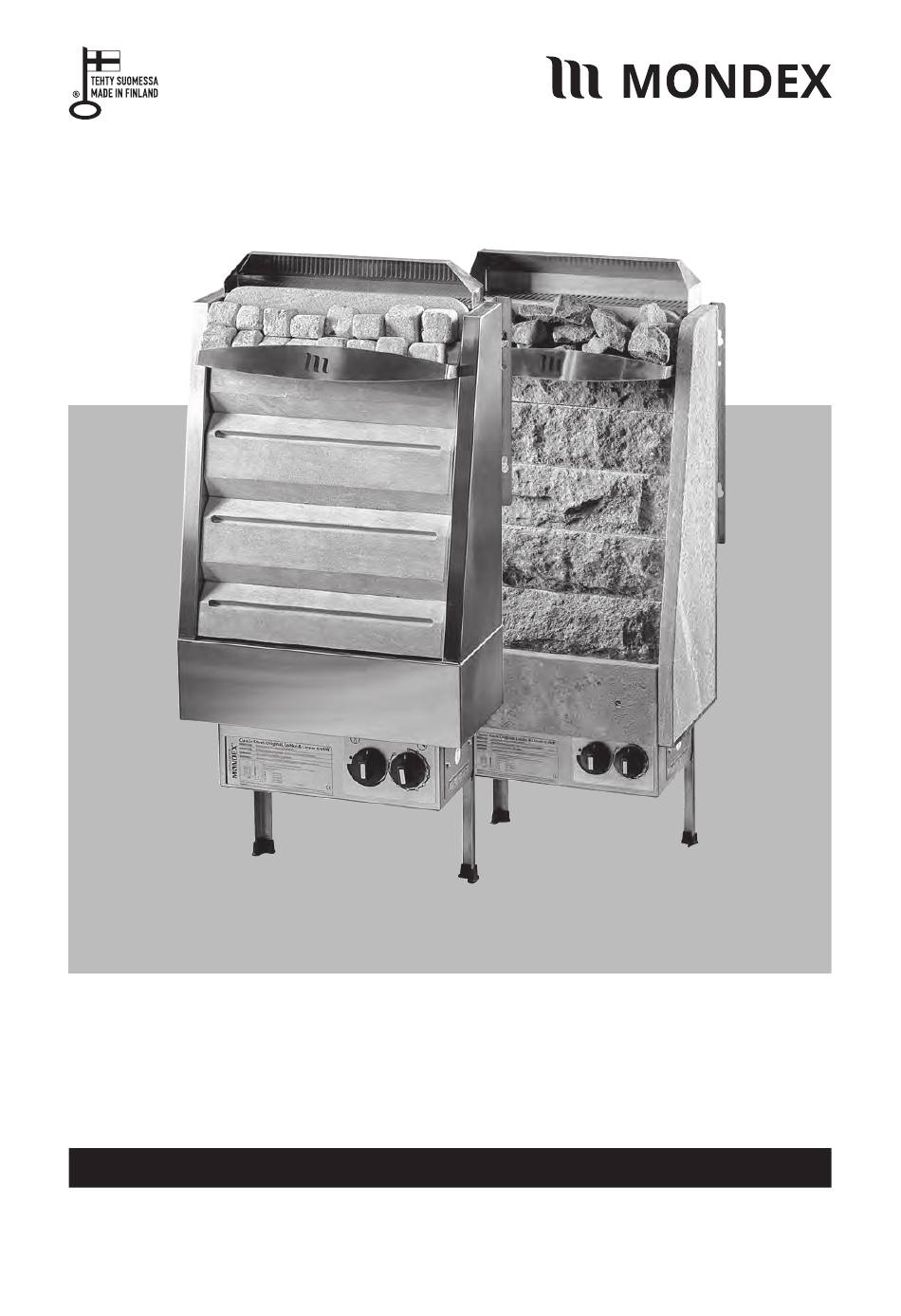

InstallatIon and operatIng InstructIons ahti and ukko heaters 12/2017... -
Page 2: Table Of Contents
Contents 1 general safety instructions 2 ahti and ukko heaters Heater components 3 Heater assembly and installation Heater assembly 4 technical specifications Heater power and voltage Heater dimensions and required quantity of stones Minimum distances to inflammable material Attachment points for heater installation 5 general instructions for users of ahti and ukko heaters Note... -
Page 3: General Safety Instructions
Electrical connections may only be carried out by an electrician with valid installation authorization according to the current regulations. The Mondex electric heater is suitable for use in a family sauna, one (1) heater per sauna room. Retain the installation and operating instructions for further reference. -
Page 4: Ahti And Ukko Heaters

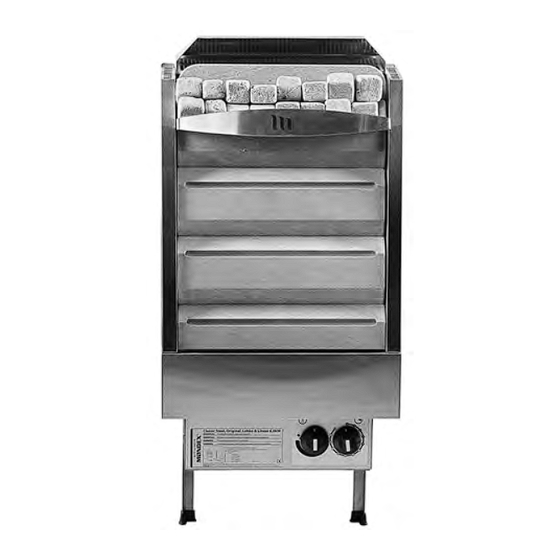

2. Ahti and Ukko heaters Ahti heater. Ukko heater. 6.0 kW and 8.0 kW. 6.0 kW, 8.0 kW and 10.5 kW. Installation and Operating Instructions Ahti & Ukko... -
Page 5: Heater Components
Ahti and Ukko heater components 1) Background stone 2) Small heater stones 3) Steel shelf 4) Side stone / stainless steel 5) Front and side bottom stones / stainless steel 6) Overheating protector reset switch 7) Thermostat 8) Time switch 9) Connection box 10) Heater blocks min. -
Page 6: Heater Assembly And Installation
3. Heater assembly and installation Heater assembly 1) The package includes the heater, heater blocks (a) and small heater stones (b). Unpack the components with the box placed horizontally (see Figures 3.1 and 3.2). Inspect the heater components visually. If you notice any discrepancies or deficiencies, please contact the store where you purchased Figure 3.1... - Page 7 After the assembly, remove all plastic films, including those from behind the deflector. Dents caused by the user or others are not covered by Mondex’s warranty or other product liability. When stacking the stones, be careful not to dent the heater’s metal or painted surfaces to avoid damaging them.
-
Page 8: Technical Specifications
4. Technical specifications type power (kW) Voltage connecting cable Fuse Ahti, Ukko 6.0 400 V 3N 5 x 1.5 mm² 3 x 10 A Ahti, Ukko 8.0 400 V 3N 5 x 2.5 mm² 3 x 16 A Ukko 10.5 10.5 400 V 3N 5 x 2,5 mm²... -
Page 9: General Instructions For Users Of Ahti And Ukko Heaters
5. General instructions for users of Ahti and Ukko heaters Note Electrical connections may only be carried out by an electrician with valid installation authorization according to the current regulations. The Ahti and Ukko electric heaters are suitable for use in a family sauna, one (1) heater per sauna room. -
Page 10: Heating Time
Heating time An excessive heating time consumes energy and does not improve the steaming properties. The best steam is achieved by keeping the sauna’s heating time relatively short, at about 30–60 min., according to the size of the sauna and the heater’s power. The size of the sauna, the glass door, windows, or materials used may require a longer heating time. -
Page 11: Wiring Diagram
7. Wiring diagram Heating control Indicator “Heater on” Installation and Operating Instructions Ahti & Ukko... -
Page 12: Time Switch And Thermostat Operation
8. Time switch and thermostat operation Time switch Thermostat Overheat protector reset switch The time switch (4+8 h) is also the heater’s main switch. After a set time, the time switch automatically switches the heater off. With the timer function, the heater can be set to switch on in 1–8 hours. The maximum warm-up time is 4 hours. -
Page 13: Troubleshooting
9. Troubleshooting Heater does not warm up Is the power on? Has the overheating protector tripped? > This is reset by pressing the overheating protector reset switch powerfully with a sharp object until a click is heard. The cause of overheating must always be determined before the heater is switched on again! If necessary, contact the dealer or manufacturer. -
Page 14: Warranty
In case of a fault that cannot be solved, please contact the store where you purchased the heater or email info@mondex.fi. Spare parts can be purchased from Mondex distributors and the manufacturer. When purchasing spare parts, please refer to the name, power, serial number and manufacturing date of the heater to ensure you receive the correct parts. -
Page 15: Service History
10. Heater maintenance history date procedure Installation and Operating Instructions Ahti & Ukko... - Page 16 Premec Oy Kettukallionkatu 4 84100 Ylivieska, Finland info@mondex.fi www.mondex.fi technical support: info@mondex.fi...
