Summary of Contents for MONDEX Klapi

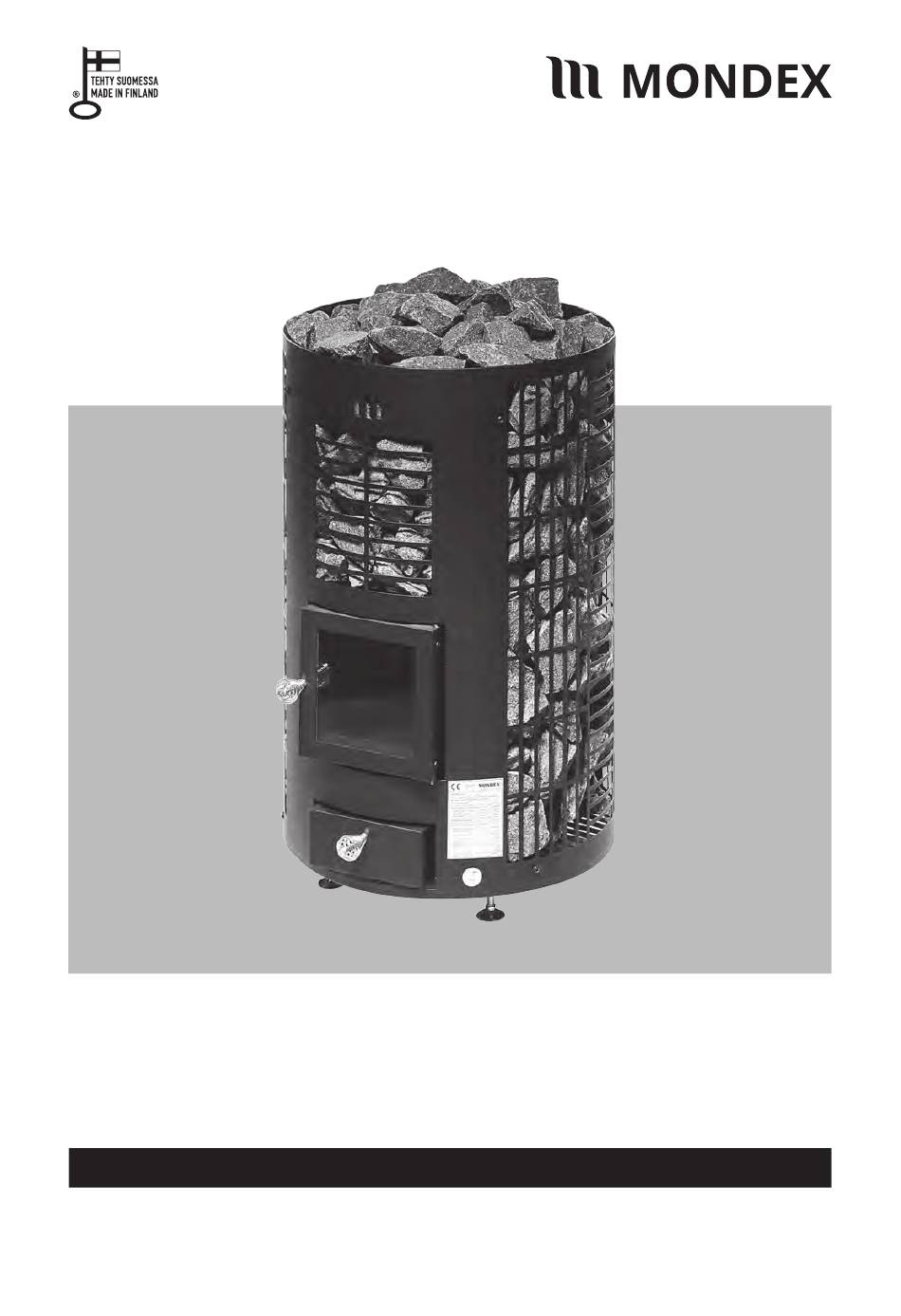

- Page 1 InstallatIon and operatIng InstructIons Klapi heater 12/2017...
-
Page 2: Table Of Contents
Connecting the heater to a brickwork flue via the upper chimney duct opening Changing the operating direction of the door 6 use of Klapi heater Warming up the heater Adjusting the chimney draft Checking the sweeping doors... -
Page 3: General Safety Instructions
This device complies with the requirements of: Mondex pursues an active policy of product development and continuous improvement. For this reason, Mondex reserves the right to make changes relating to the design and technical specifications of their products without prior notice. -
Page 4: Klapi Heater
2. Klapi heater Klapi heater, steel Klapi heater, black Klapi heater components 1) Firebox door (the operating direction can be changed) 2) Ash pan 3) Upper chimney duct 4) Rear chimney duct 5) Sweeping doors (3) Installation and Operating Instructions Klapi... -
Page 5: Technical Specifications
Total amount of wood / fillings / heating time 9.5 kg / 3 / 90 min Table 3.1 Mondex Klapi. The sauna heater has been tested in accordance with standard EN 15821. Test report No. VTT-S-01932-15. Heater dimensions, weight and required quantity of stones type... -
Page 6: Sauna Room
(C) Floor glues and plasters and waterproofing materials used under the tiles do not withstand thermal radiation emitted by the heater. Protect the floor with a fireplace safety pad or equivalent protection against thermal radiation. Installation and Operating Instructions Klapi... -
Page 7: Safety Distances
Klapi 16 1250 8–16 m³ Table 4.3 Safety distances to inflammable material (mm) The safety distances are measured from the outer surfaces of the product. Installation and Operating Instructions Klapi... -
Page 8: Light Protective Material
Screw the adjustable feet downwards so that you can rotate them with an open-end wrench, for example, when the heater is in place. NOTE! The adjustable feet may scratch the surface of the floor if the heater is moved on the floor. a (min) B (min) 62.5 Installation and Operating Instructions Klapi... -
Page 9: Heater Assembly And Installation
Do not throw water on the heater during the preheating. Doing so may damage the paint coating. Observe the safety distances between the heater and any inflammable material in accordance with the instructions (see page 7) when installing the heater. Installation and Operating Instructions Klapi... -
Page 10: Stacking The Stones
Continue stacking gradually in this manner until all stones have been placed. Dents caused by the user are not covered by Mondex’s warranty or other product liability. When stacking the stones, be careful not to dent the heater’s metal surfaces to avoid damaging them. For more information on the warranty and replacing stones, see page 14. -
Page 11: Connecting The Heater To A Brickwork Flue Via The Rear Chimney Duct Opening
Seal the chimney pipe to the opening in the firewall with fireproof mineral wool, for example. Ensure that the chimney pipe connection is tight and, if necessary, add more fire-resistant mineral wool. Straight 45° 90° Installation and Operating Instructions Klapi... -
Page 12: Changing The Operating Direction Of The Door
2) Lift the door off and turn it 180°. 3) Replace the hinge shaft. 6. Use of Klapi heater Warming up the heater Before warming up the heater, ensure that there are no foreign objects that could create a fire hazard in the sauna or within the safety distances of the heater. -
Page 13: Adjusting The Chimney Draft
Using seawater corrodes the heater in an instant, so seawater or any other saltwater may not be used. Quality requirements of drinking water Humus content < 12 mg/l Calcium content < 100 mg/l Iron content < 0.2 mg/l Manganese content < 0.05 mg/l Installation and Operating Instructions Klapi... -
Page 14: Chimney Flue
In case of a fault that cannot be solved, please contact the store where you purchased the heater or email info@mondex.fi. Spare parts can be purchased from Mondex distributors and the manufacturer. When purchasing spare parts, please refer to the name, power, serial number and manufacturing date of the heater to ensure you receive the correct parts. -
Page 15: Troubleshooting
- When the installation instructions provided by the manufacturer are followed, the heater does not cause the inflammable materials of the sauna room to become dangerously hot. Installation and Operating Instructions Klapi... -
Page 16: Service History
Mondex Oy EN 15821:2010 Multi-firing sauna stoves fired by natural wood logs for space heating in residential buildings Mondex Klapi Fire safety: (Ignition, fire risk) Approved - including the declared In the rear 250 mm safety distance to...
