THORLABS ELL7 Operating Manual page 7

ELL7K Linear Stage Evaluation Kit

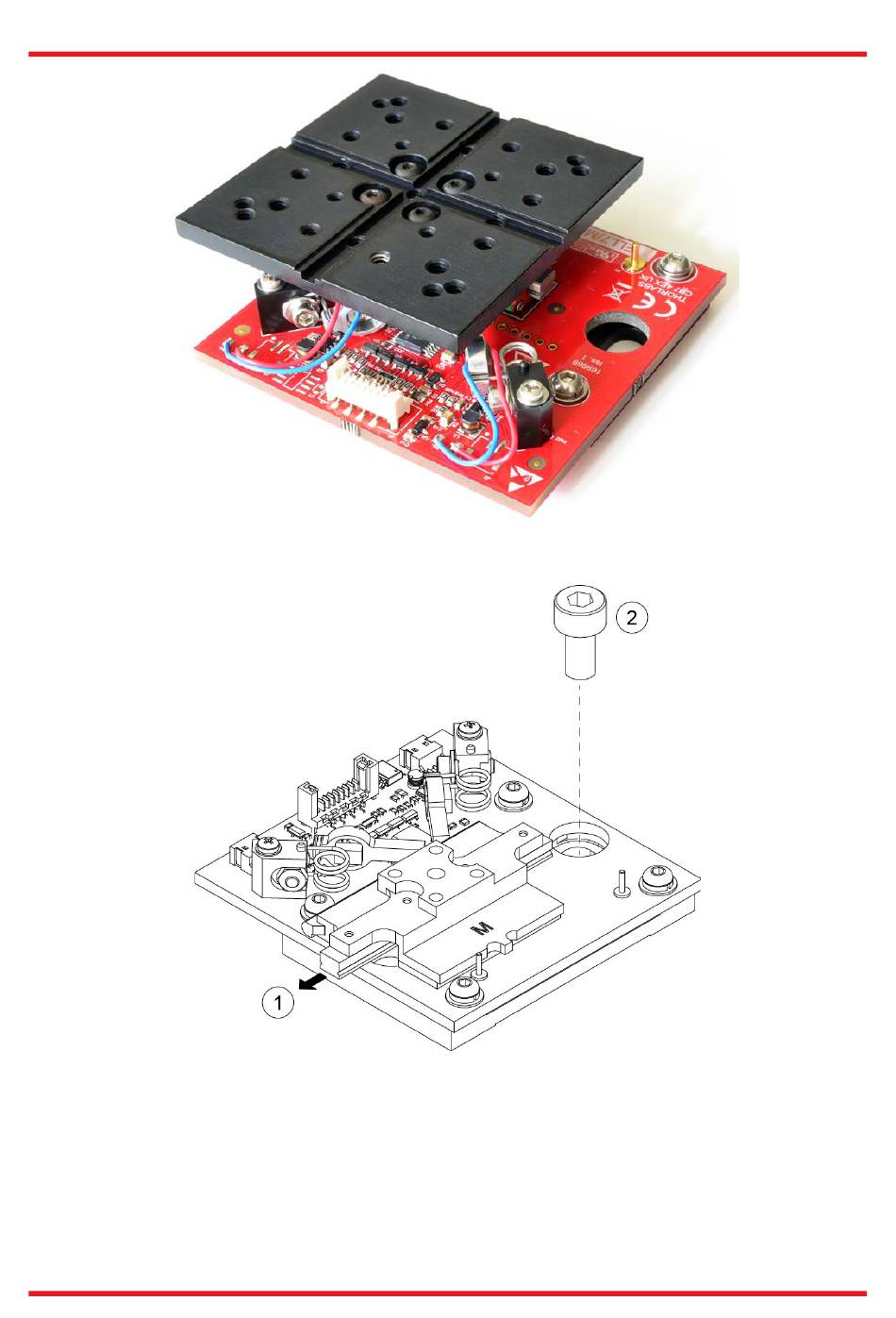

Figure 2 ELL7 with MMP1 top plate fitted, showing stage in backwards/home position
1. Slide the moving world to one end of travel to gain access to the mounting holes as shown above.
2. Attach the stage to the work surface by passing appropriate standard fixings (not supplied) through
the exposed hole in the PCB and base plate.
3. Slide the moving world to the other end of travel, and repeat item (2).
Rev DJanuary 2018
Figure 3 Fixing the ELL7 to the work surface
Chapter 3: Description
Page 5
