Wen 5500 (13 hp engine) carburetor assembly

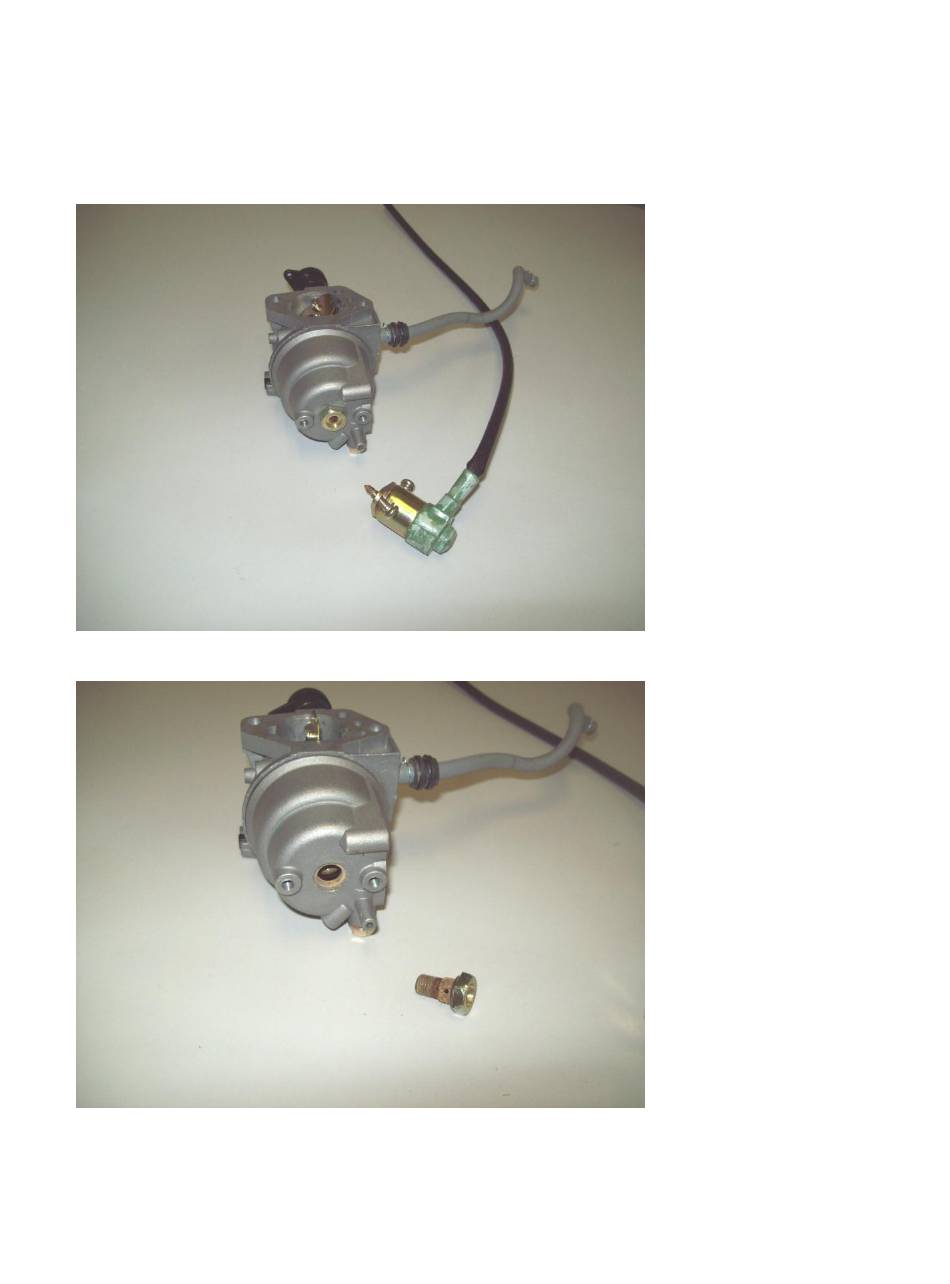

To disassemble the carburetor on a Wen 5500 generator, do the following:
Remove the two P2 (#2 PoziDrive) head screws holding the solenoid to the bottom of the
carburetor bowl.
Remove the 14mm hex head bolt from the bottom of the carburetor bowl.
