BEFORE YOU BEGIN:
To avoid any confusion with your new
shed build, we strongly suggest that you
unpack and identify each part before you
begin to put it together.
ASSEMBLY
INSTRUCTIONS
YOU SHOULD HAVE TWO PACKAGES:
• 1 cardboard package
• 1 channel pack
TOOLS SUPPLIED:
• 1 riveter
• 3.3mm double ended drillbit
TOOLS REQUIRED:
• Battery or electric drill (drill bits supplied)
• Tape measure
• Ladder
• Non-slip gloves, good shoes and goggles
• A set of helping hands
SCAN TO
WATCH OUR
ASSEMBLY VIDEO
HERE
Some parts have sharp edges and should be handled
very carefully. We recommend the use of protective
gloves and footwear when assembling.
DO NOT attempt to erect this shed in windy weather.
All dimensions are approximate.

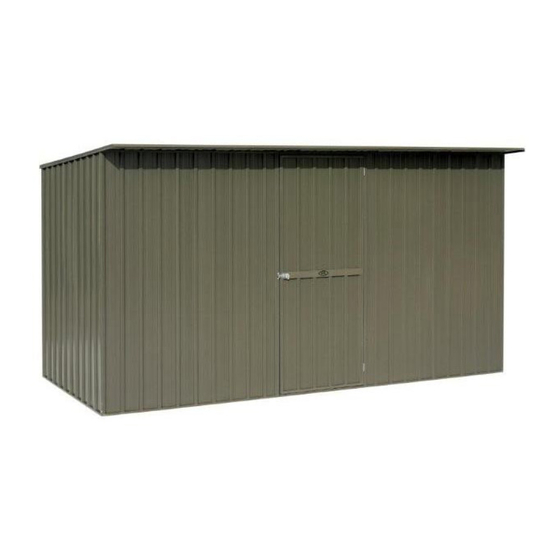

SLOPING ROOF SHED
3770mm wide x 1530mm deep x 1980mm - 1830mm high
25
EST.
1974
YEAR
WARRANTY
GM3815
THIS SHED
WAS PROUDLY
PACKED BY:
Please quote
this code for any
correspondence back
to the supplier
CALL 0508 454 873
for an installer near you
Advertisement
Table of Contents
Related Manuals for GARDEN MASTER GM3815
Summary of Contents for GARDEN MASTER GM3815
- Page 1 GM3815 SLOPING ROOF SHED 3770mm wide x 1530mm deep x 1980mm - 1830mm high BEFORE YOU BEGIN: THIS SHED WAS PROUDLY To avoid any confusion with your new PACKED BY: shed build, we strongly suggest that you unpack and identify each part before you...
-
Page 2: Components Checklist
COMPONENTS CHECKLIST Please check the parts carefully and advise immediately if any are damaged or missing. 5 x 1830mm sheets for the back and 4 x 1980mm - 1830mm sloping sheets 5 x 1830mm sheets for the roof 2 x 1980mm sheet for the front for side walls (2 left, 2 right) 1 x 780mm wide sheet with door Door pre-hinged to 700mm sheet with... -
Page 3: Front Wall
B Drill through to the underside. Rivet top and underside. FITTING CHANNELS CHANNELS WITH CUTOUTS GARDEN MASTER TIP The cutouts go to the inside of the panel to The higher side of the channel goes to the To hinge the door on the opposite side, inside of the shed. - Page 4 Make sure you put at least 1 rivet per sheet up through the underside of the channel into the pan of the sheet. GARDEN MASTER TIP SCAN TO WATCH OUR ASSEMBLY VIDEO Put extra rivets in for high wind areas, HERE particularly on the underside.
- Page 5 STEP 4: END WALLS YOU WILL NEED: 4 x 1980mm - 1830mm sloping sheets Cap the sloping sheets with 1515mm channels. (2 left, 2 right) Rivet the channels at the corners and every 2nd rib in between. 4 x 1815mm channels (2 per side) 2 rivets up underneath through channel into pan of sheet.
-
Page 6: Installation
FIT THE DOOR BRACES AND INSTALL SHED Fit the door braces, if not already done so. Check that all filings/swarf is removed. IMPORTANT GARDEN MASTER HINTS & TIPS DIAGRAM 9 IMPORTANT:... -
Page 7: Specifications
INTERNAL DIMENSIONS RECESSED FLOOR CLAMPS For poured floors with a recess around the perimeter. Available from your shed dealer. INTERNAL DIMENSIONS FOR THE GM3815: FLAT FLOOR CLAMPS For existing concrete only. Water can seep underneath. 3725MM X 1485MM Available from your shed dealer. - Page 8 What did you like best about your garden shed purchase? Are there any parts of our service that you think we could improve upon? THANKS FOR YOUR HELP! GARDEN MASTER SHED OPTIONAL EXTRAS 1. SHELF BRACKETS 2. TOOL RACKS 3. FLOORS 4.
