GARDEN MASTER GM3818 Assembly Instructions

If you feel confident that you do not need to read through these instructions, see page 2.... If you choose to vary from these instructions your warranty will be impaired.
Well done you have finished the panels....
Points to note as you construct your shed:
Do not attempt to assemble panels in windy conditions
Make sure your foundations are squared and level before erecting panels.
It is easier to remove all swarf (filings) before you stand your walls up
Complete all panels before erecting your shed.
Keep a firm grip on panels when handling. If they slip they will cause damage.
Always wear non slip gloves protective footwear and eyewear
5: Now to join your corners and put your roof on....
1st: Stand up the back wall and as your helping hand is holding it up bring the Left end wall into meet it
at the left corner overlapping the corners as Fig 1. Drill & Fix at approx 100mm down from the top
and up from the bottom drilling and fixing from the outside.
2nd: Bring the Right end wall into the right back corner and perform the same again checking to make
sure the walls are sitting flat at the bottom
3rd: Bring the front wall into place and join the front corners to the end walls same as the back.
4th: Finish joining corners by fixing at approx 300mm apart. You will find it easier to drill
these corners if they are supported on the inside. Use the handle end of a hammer
into the inside of the corner, but beware of drilling holes in the end of your hammer.

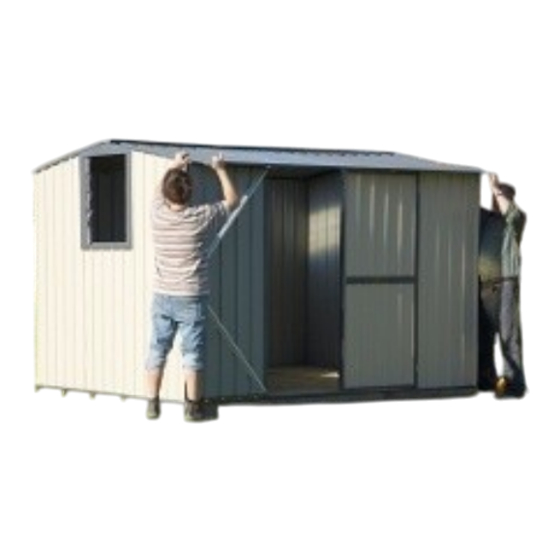

5th: With a person at each end of the roof, waft it over top of your upright walls and lower
down on top with an overhang that looks best to you. At the left end fix thru the "L"
flashing into the top channel of the left end wall. Measure the overhang at the back and
fix the right end "L" to the right end wall with the same overhang as the Left end. If the
roof is difficult to get to the same overhang at each end this will be caused by unlevel
site or walls are not square. Adjust accordingly. Fix "L"s at approx 500mm's apart.
6th: Using your ladder and tape measure, fix down thru the top of the roof, thru the pan
into the top channel of front and back walls. (10mm more than the overhang). Fix be-
side every 2nd rib. (Fig 2). You will not need to worry about these fixings leaking as
any water seeping thru these fixings will end up on the outside of the walls.
7th: Attach padbolt to door strap and fit door braces if not already done so. Check that all
swarf is removed and most importantly....
8th: Fix your shed down to its foundations. If your foundations are unlevel or bowed, you
will have problems with your padbolt and door levels. This can be fixed by slipping a
spade under either door jamb and lifting. You will soon get a feel for which side needs propping up.
It is utmost essential that every shed has
Recessed floor clamps Flat floor clamps
For especially poured floors For existing concrete only.
a floor, but the only way to make sure
with recess around perimeter. Water can seep underneath.
your shed is there to stay on windy sites is
with a recessed concrete floor and phone
0800 80 SHED for more free advise
Feedback....
As we are forever trying to make sure you are our happiest customer, we are always on the look-
out for ways in which we could do better. Please fax us on 06 878 5758 or send us an email to
feedback@gardenmastersheds.co.nz with your thoughts. To help you we have listed a few aspects
that we would like you to comment on. You do not have to include your details, but if you do we
will forward you a free gift.
1.Finding out about our range of garden sheds and the various options we offer....
2.The store and the sales person that you purchased from....
3.The delivery and the overall dealings for the purchase of your shed....
4.The assembly of your shed and clarity of instructions....
5.Did the shed fit your needs? What will you order differently next time?
January 09
.
Well done!
.
Pg 4
If you feel confident that you do not need to read through these instructions, see page 2....
Drill and drill bits - 3.3mm (1/8th") for shed and 5mm (3/16th") for padbolt
Screwdriver or Riveter. (Note: all colour sheds come with rivets only)
Tape measure for roof overhang.
Ladder for fixing down thru the top of the roof.
Tin snips for a small nik on top channel of gable end walls only. (If applicable)
Non slip gloves, good shoes, goggles, a helping set of hands and no gusty winds!
Fig 1
Quick Tips to keep in mind as I build my shed:
Try to remove swarf (drill filings) from panels as I assemble them.
My basic job is to cap the sheeting to make the panels. Drill & Fix.
All components are cut to length. Do not cut any parts unless instructed.
They are only a phone call away 0800 807 433 or email to info@gardenmastersheds.co.nz
Fixings thru the inside of the channels into the sheeting are just as important as the outside.
5 x 1830 mm Sheets for back
5 x 1980 sheets for roof.
2 x 1980 for Front
1 x 740mm wide sheet with
door jamb attached
4 x 1815mm channels for End walls
2 x 3745mm channels for
the Roof
2 x 1980mm "L"s for flashing the
roof to the side walls
Fig 2
GM3818
- Sloping Roof Shed
3720mm W x 1830mm D x 1980 -1830mm H
ASSEMBLY INSTRUCTIONS
" 1 Box
This shed has
What tools will I need?
4 x Sloping sheets and 2 x 1/2
sheets for end walls. 2 & 1/2 Left
and 2 & 1/2 Right.
Door pre-hinged to
2nd 740mm sheet
with door jamb
4 x 3745mm channels with ends cut
for Front & Back walls
2 x 793mm Door
spacers
1 x Pack of fixings with padbolt
Screws for Zincalume sheds
Rivets for Colour sheds
2 x "Z" Door braces
Pg 1
January 09
1 Channel pack "
