1. Suspension Mounting
Suspension mount your EasyReader display in a clean, dry environment.
The mounting screws you use should have a diameter between 3.2 and 3.8 mm and should
be suitable for the supporting material. You may need to use screw plugs or other screw
accessories, if the material is not suitable to take screws directly.
Mount the brackets first, then fit the display to the brackets.

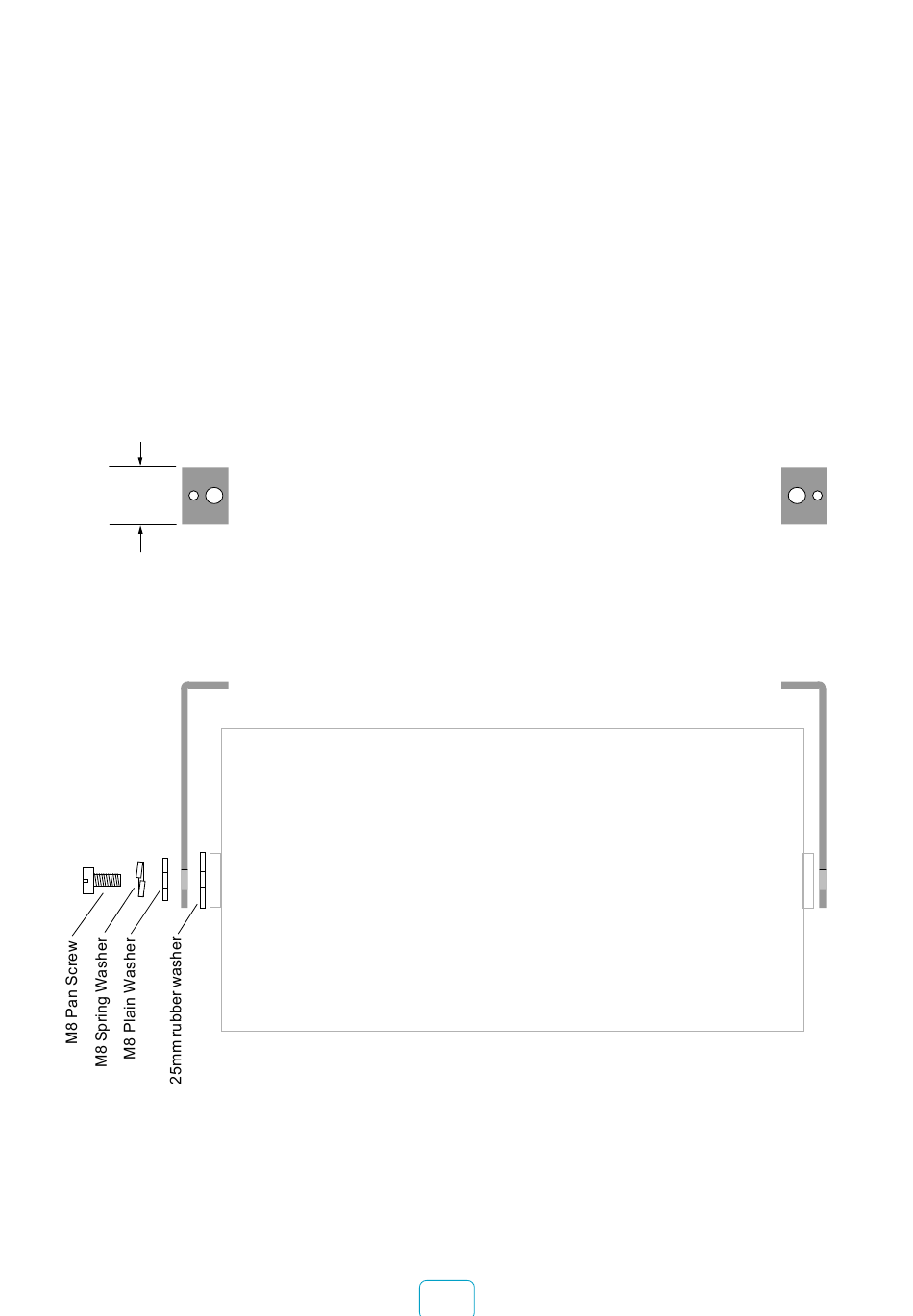

View down onto top of bracket
25.0 mm
3 holes 4.5mm diameter
85.0 mm 85.0 mm
Route cables neatly away from the display. If the cables may become damaged in the
environment, protect them with suitable conduit or trunking.
