London Electronics EasyReader ER4C Instruction Manual page 17

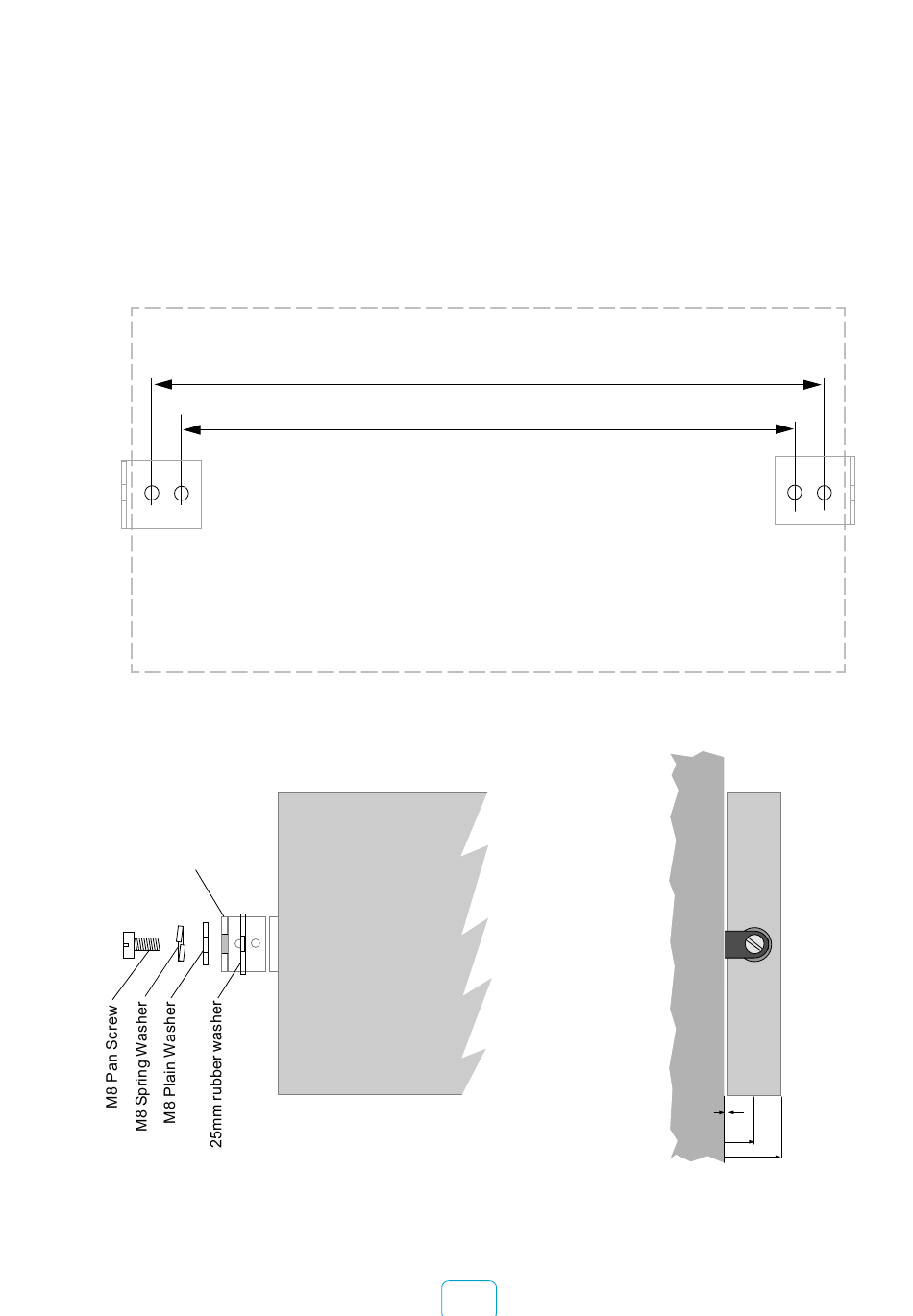

How to Mount your display
1. Wall Mounting
Wall mount your EasyReader display in a clean, dry environment.
Drill 4 holes in your wall, spaced as you see in this diagram...
The mounting screws you use should have a diameter between 3.4 and 4.6 mm and should
be suitable for the material of the wall. You may need to use wall plugs or other screw
accessories, if the wall material is not suitable to take screws directly.
Wall bracket
Route cables neatly away from the display. If the cables may become damaged in the
environment, protect them with suitable conduit or trunking.
407 mm
The 4 bracket holes are all 5mm diameter
Fit the brackets to the wall.
Then, fit the display between the brackets.
Place the brackets as shown, so that the display covers
the 4 mounting screws
365 mm
14
Side View
Wall
2.5mm
25.0 mm
47.5 mm
