CHG: Pressing CHG once shows the user menu. Once the desired menu item is selected, you
can do one of the following:
 To change the set points
 Press SET to choose the particular menu item.
 Consecutive pressing of SET will cycle through the different digits of the set point.
 Press UP or DOWN to increase or decrease the particular digit. Pressing SET will set
the digit.
 Long press SET until "SAVED" is displayed on the upper row of the LCD.
 Press CHG to exit out of current menu item and change the next item.
 To change Gas Setting
 Consecutive pressing of SET will cycle through the different Gas options.
 Once the desired gas is selected, keep holding the SET button down until "SAVED"
is displayed on the upper row of the LCD.
 To exit out of the menu
Navigate to "EXIT" menu item with consecutive CHG presses. Press SET to exit out. An
alternative option is to not touch any buttons for 5 seconds, as the program will exit the
user menu after 5 seconds of inactivity. Note: this option does not save the recent
settings.

USER MENU

FLOW HI: High set point for flow alarm. (This example shows the detailed steps for changing
a set point. All other menu items use the same method.)
Press the SET button to change. Range is 0-100% FS. If set to 0, alarm is disabled. Alarm
hysteresis is 1% FS.
FDMAN-1-190214

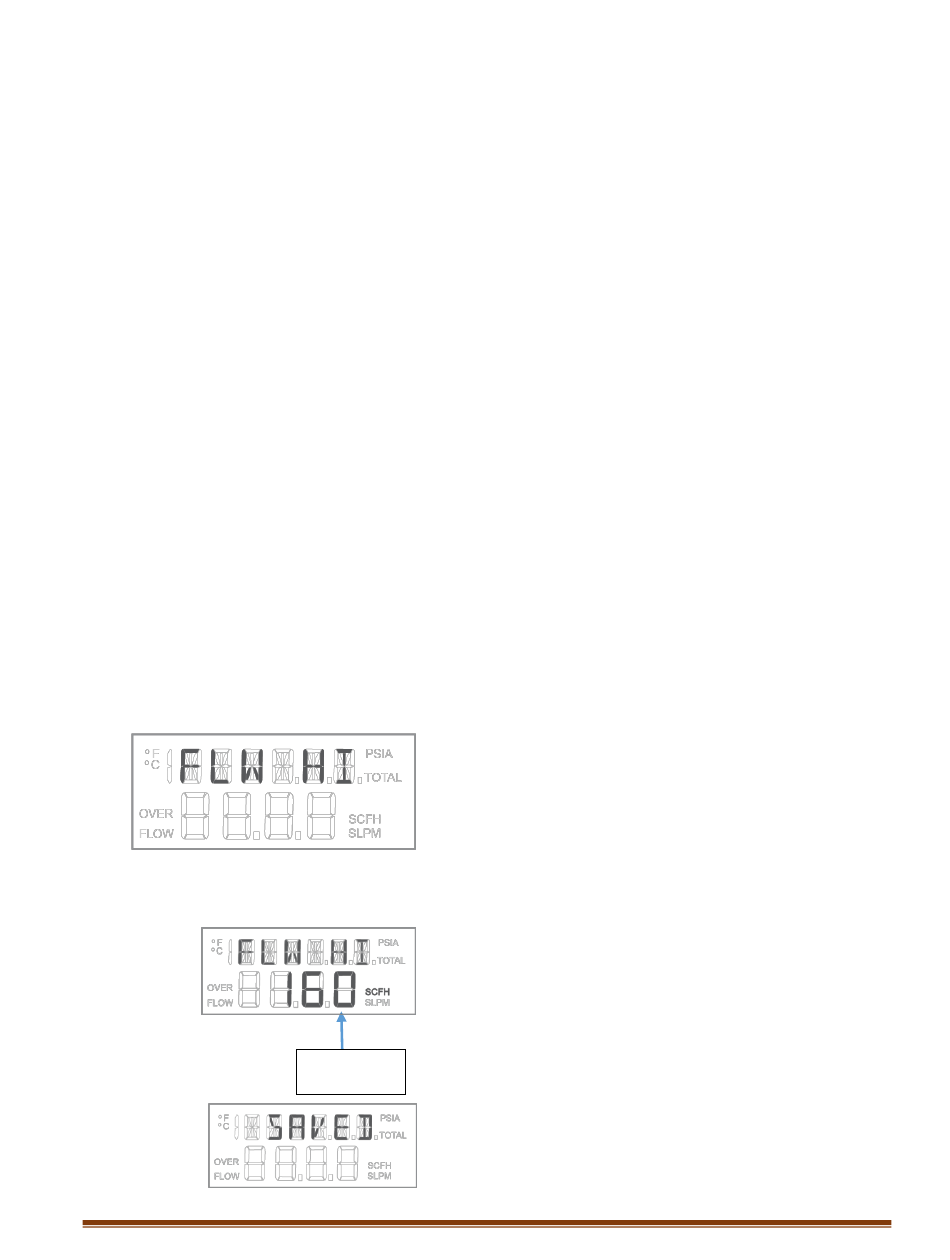

When first digit starts blinking, use the UP and
DOWN buttons to adjust the digit, then press SET to
move to the next digit.
Blinking
When finished, keep holding the SET button down
until "SAVED" is displayed, then release the SET
button.
Page 11
