- Page 1 USB 3.0 to VGA Adapter with Gigabit Ethernet Model 202051 User Manual (Available in a PDF file) Email: support@cablematters.com...
-
Page 2: Table Of Contents
USB 3.0 to VGA Adapter with Ethernet Table of Contents 1. INTRODUCTION ..............1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW 2.1 Package Contents 2.2 Product Description ................. 2 2.3 Product Features 2.4 System Requirements 3. -
Page 3: Introduction
1.2 Copyright and Trademarks Specifications are subject to change without notice. Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their respective owners. 1.3 FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 4: Product Description

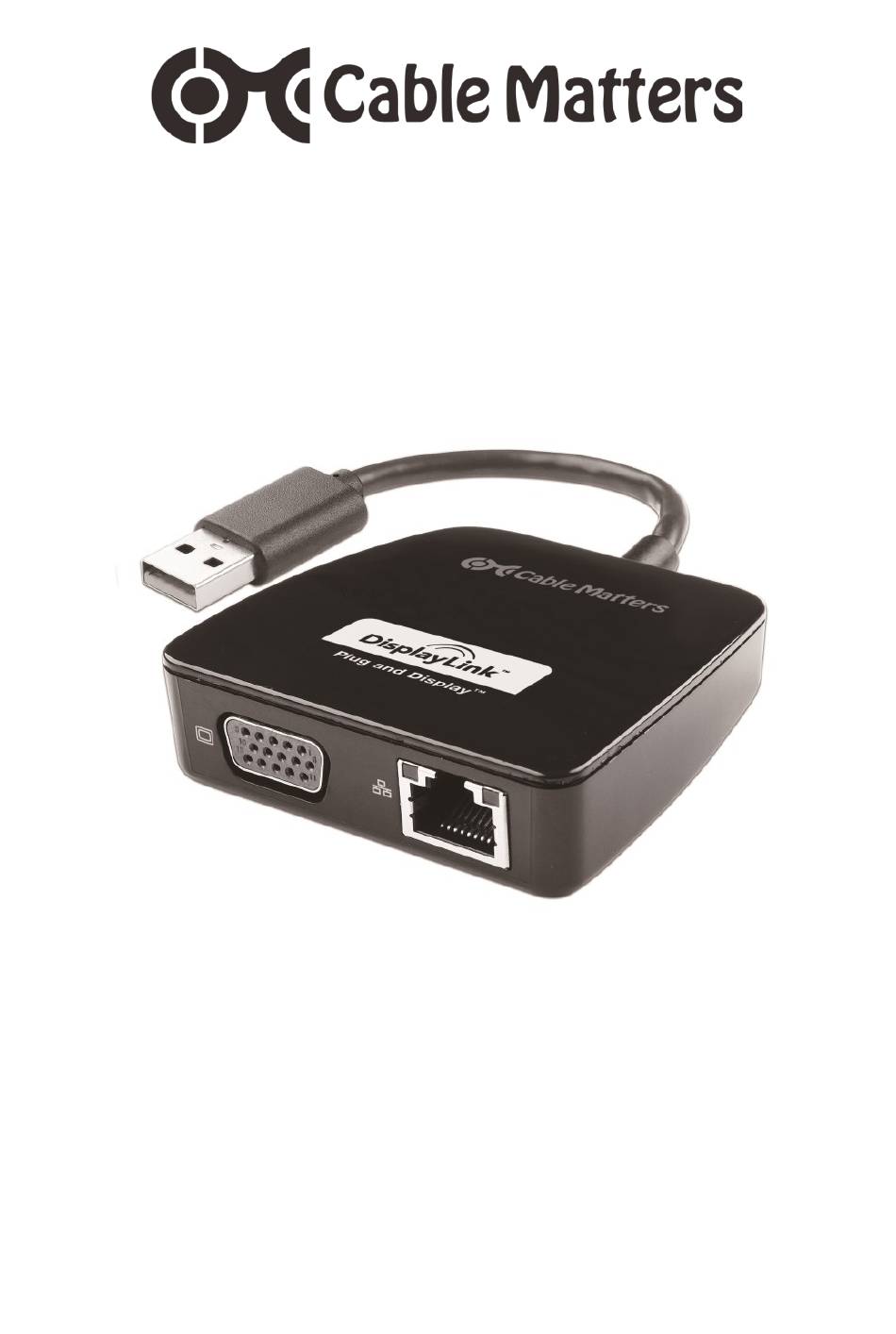

USB 3.0 to VGA Adapter with Ethernet 2.2 Product Description The Cable Matters USB 3.0 to VGA Adapter with Gigabit Ethernet is a simple way to connect a display with VGA input plus a Gigabit Ethernet network to a computer with USB. Add a monitor to a computer without a VGA port and connect to a secure wired network with a single adapter. -
Page 5: Connection And Operation
DisplayLink software installer checks for any incompatible drivers • Windows and Mac users with the latest OS versions can check for • updated drivers from the Cable Matters download link For questions: Contact support@cablematters.com with a description of your hardware configuration and your computer OS... -
Page 6: Connection Instructions
USB 3.0 to VGA Adapter with Ethernet 3.3 VGA Display Connection Instructions CONNECTING TO A DISPLAY WITH VGA 1) Install the DisplayLink software drivers 2) Connect the adapter to the computer 3) Connect a VGA cable to the display and the adapter 4) Configure the video from the computer 5) Select the video input from the display 3.4 Configuring a display with Windows OS... - Page 7 USB 3.0 to VGA Adapter with Ethernet COMPUTER CONFIGURATION 1) Select a Screen Resolution that is compatible with both your computer and the connected display 2) Set the connected display as Extended or Mirrored Use the Fit to TV option when connecting to an HDTV •...
-
Page 8: Configuring A Display With Mac Os
USB 3.0 to VGA Adapter with Ethernet 3.5 Configuring a display with Mac OS Video Settings 1) Open the Apple Menu 2) Select System Preferences 3) Click the Displays icon 4) Click the Arrangement tab Choose to Mirror or Extend the display NOTE: Refer to the user manual of your monitor, TV, or projector for changing the video and sound settings. - Page 9 USB 3.0 to VGA Adapter with Ethernet 3.6 Connecting to an Ethernet Network Link LED Status LED Green Yellow 1) Install the DisplayLink software drivers and plug in the adapter 2) Connect an RJ45 cable to the adapter and a network/router port 3) Link and Status LEDs should blink to indicate a connection 4) Check the documentation of your router to configure network access Troubleshooting Tips...
-
Page 10: Troubleshooting Notes
USB 3.0 to VGA Adapter with Ethernet 3.7 Troubleshooting Notes CABLING Check that all cable and adapter connections are secure • Inspect the adapter and cable to check that no pins are damaged • Test the VGA cable by connecting it directly with other equipment •... -
Page 11: Technical Specifications
USB 3.0 to VGA Adapter with Ethernet 4. TECHNICAL SPECIFICATIONS Input SuperSpeed USB 3.0 Male Video Output 15 pin VGA Female Network Output: RJ45 8P/8C 568-B Female OS Support USB Host Windows 7, 8, 8.1, 10 Mac OS 10.8.5 and above Chipset Video &... -
Page 12: Warranty And Support
USB 3.0 to VGA Adapter with Ethernet 5. Warranty and Support 5.1 Customer Support and Contact Information Cable Matters offers lifetime technical support as an integral part of our commitment to provide industry leading solutions. Email us with any questions at support@cablematters.com.
