USB-C™ to DisplayPort™ Multiport
Adapter with Power Delivery
Locate instructions and driver information is at:
cablematters.com/dl/201046
Locate troubleshooting information at:
support@cablematters.com
Model 201046
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 201046 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for cable matters 201046

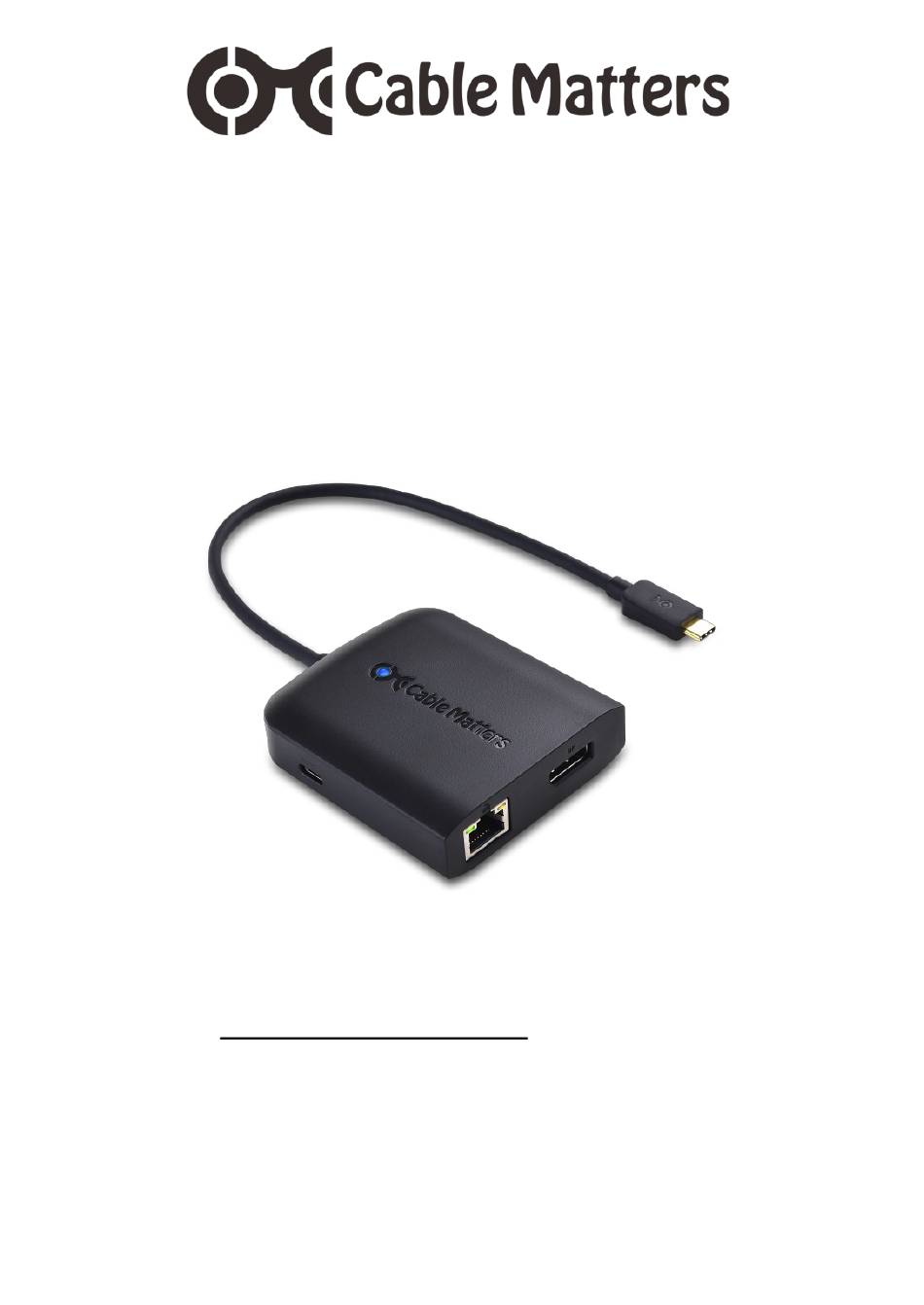

  • Page 1 USB-C™ to DisplayPort™ Multiport Adapter with Power Delivery Model 201046 Locate instructions and driver information is at: • cablematters.com/dl/201046 Locate troubleshooting information at: • User Manual support@cablematters.com...
  • Page 2: Table Of Contents

    USB-C™ to DisplayPort™ Multiport Adapter with Power Delivery Table of Contents 1. INTRODUCTION ..............1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW 2.1 Package Contents 2.2 Product Description ................ 2 2.3 Product Features 2.4 System Requirements 3.
  • Page 3: Introduction

    1.2 Copyright and Trademarks Specifications are subject to change without notice. Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their respective owners. Thunderbolt and the Thunderbolt Logo are trademarks of Intel Corporation in the U.S. and/or other countries.
  • Page 4: Product Description

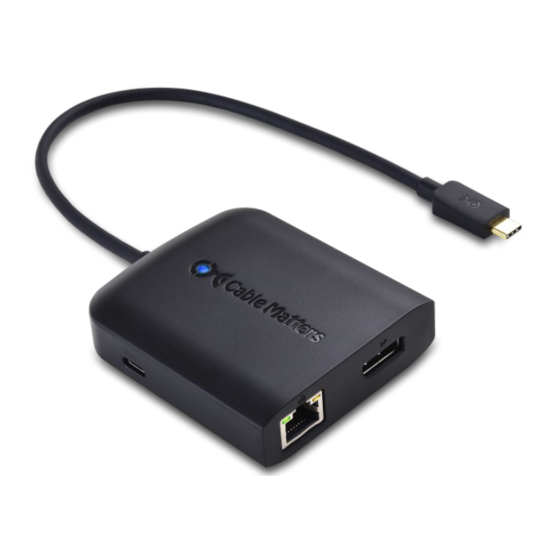

    USB-C™ to DisplayPort™ Multiport Adapter with Power Delivery 2.2 Product Description The Cable Matters® USB-C™ to DisplayPort Multiport Adapter with Power Delivery is an essential companion for computers with a USB-C or Thunderbolt™ 3 port. Connect to a Fast network, a USB peripheral device, and a monitor with DisplayPort.
  • Page 5: Connection And Operating Instructions

    USB-C™ to DisplayPort™ Multiport Adapter with Power Delivery 3. Connection and Operating Instructions 3.1 Application Diagram Note: All cables to connect to the Adapter are sold separately Connect to a Fast Ethernet network • Connect two USB 3.0/2.0 peripheral devices •...
  • Page 6: Connecting The Adapter To A Laptop With Power Delivery

    USB-C™ to DisplayPort™ Multiport Adapter with Power Delivery 3.2 Connecting the Adapter to a Laptop with Power Delivery The Multiport Adapter can be connected to a USB-C charger to provide power to the Adapter or charge a laptop while in use (with P.D.
  • Page 7: Connecting To A Lan Or Router

    Some USB-C devices may not support an Ethernet connection over USB-C • Windows Search ‘Device Manager’ > Click on: Universal Serial Bus devices > Cable Matters USB- C Multiport Adapter Search: About this Mac > System Report > Hardware > USB > USB 3.0 Bus > USB 2.0 Hub >...
  • Page 8: Connecting A Display With Displayport

    USB-C™ to DisplayPort™ Multiport Adapter with Power Delivery 3.4 Connecting a Display with DP Installation Instructions 1) Connect an DisplayPort cable (sold separately) to the Adapter 2) Connect the cable to the DisplayPort input of the monitor 3) Connect the Adapter P.D. port to a USB charger for the best performance 4) Connect the Adapter to a USB-C port on the computer 5) Select the DisplayPort video and audio input from the display menu 6) Select the audio output from the computer (optional)
  • Page 9: Connecting A Usb Peripheral Device

    USB-C™ to DisplayPort™ Multiport Adapter with Power Delivery 3.5 Connecting a USB Peripheral Device USB 2.0 data transfer rate up to 480 Mbps Installation Instructions 1) Connect a USB 2.0 or 3.0 device to the Adapter (cables sold separately) 2) Connect the Adapter P.D. port to a USB charger for the best performance 3) Connect the Adapter to a USB-C port on the computer 4) The device should be recognized after downloading any needed drivers 5) Always Safely Remove or Eject the device before unplugging...
  • Page 10: Troubleshooting Tips For Windows

    • charger BEFORE connecting the Adapter Check that your computer recognizes the Adapter - Blue LED should be lit • Search ‘Device Manager’ > Click on: Universal Serial Bus devices > Cable Matters • USB-C Multiport Adapter Cabling Check that all cable and adapter connections are secure •...
  • Page 11: Troubleshooting Tips For Mac

    USB-C™ to DisplayPort™ Multiport Adapter with Power Delivery 3.7 Troubleshooting Notes for Mac When using Power Delivery to charge a laptop, first connect all cables and the USB-C • charger BEFORE connecting the Adapter Check that your computer recognizes the Adapter - Blue LED should be lit •...
  • Page 12: Technical Specifications

    Note: Specifications are subject to change without notice 5. Warranty and Support 5.1 Customer Support and Contact Information Cable Matters offers lifetime technical support as an integral part of our commitment to provide industry leading solutions. Email us with any questions at support@cablematters.com.
