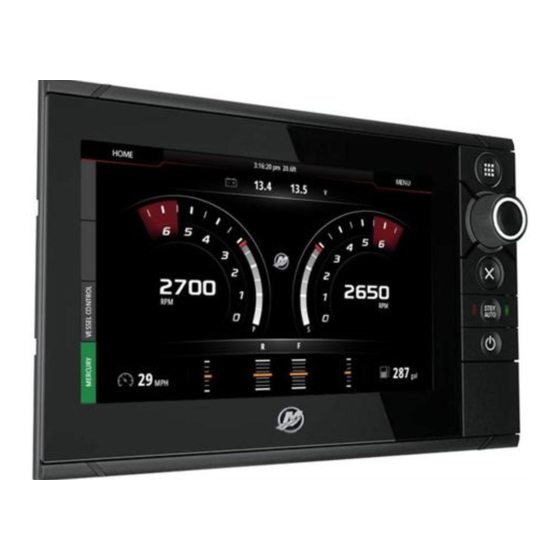

Mercury VesselView702 Quick Manual

Please reference & download a copy of the Users Manual at: www.mercurymarine.com/vesselview

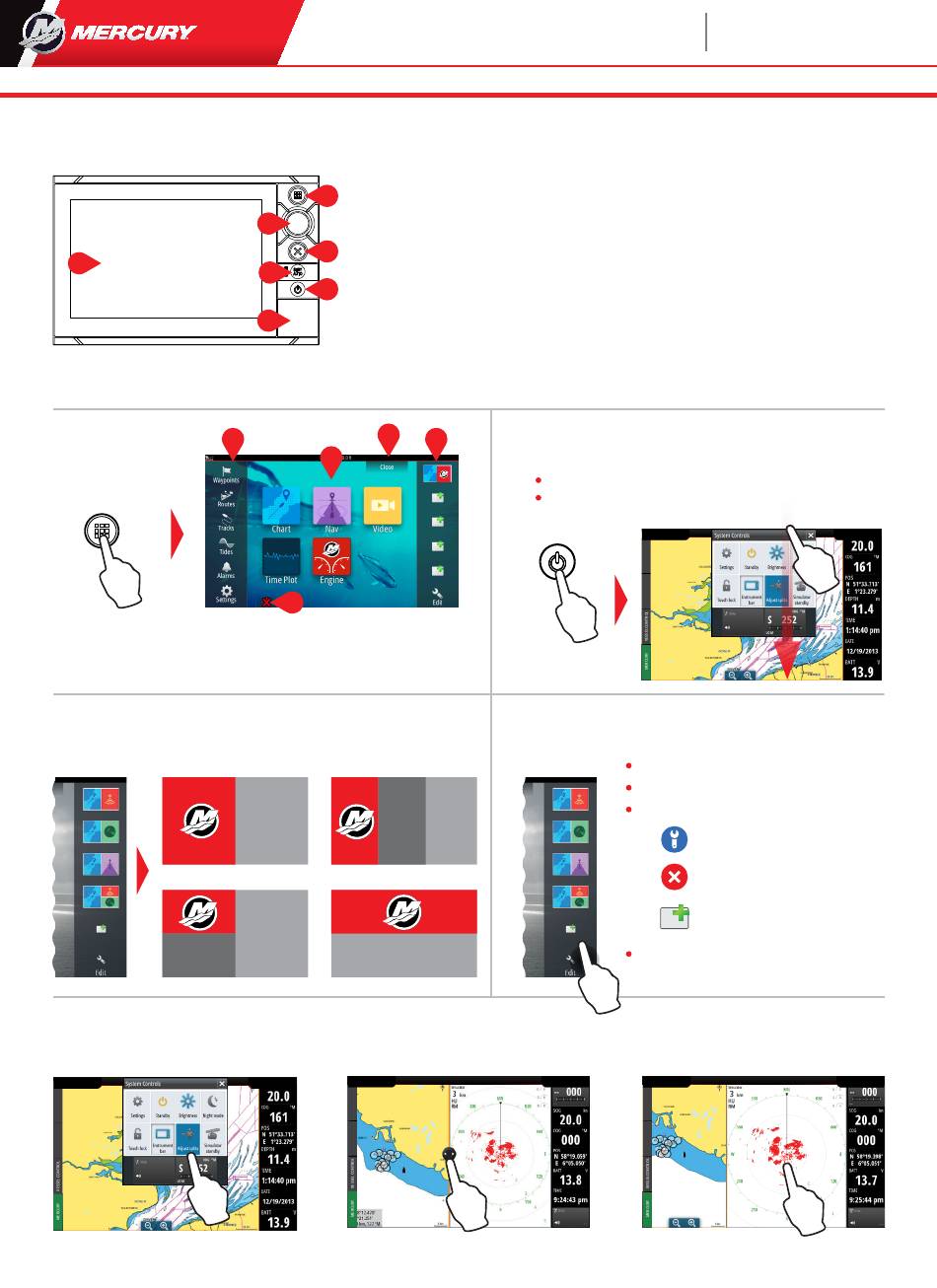

Display Controls
1
Home Page
1
HOME KEY
1 3
Tools Close button
(Return to last
2
Applications
screen)
Favorites
Use favorites to create custom panel configurations with engine data
1/2 vertical
1/4 screen
Adjust split page panel size
1.
- Open the System Control Dialog
- Tap the adjust splits to show the resize icon
3:16:20 pm 20.6ft
HOME
VesselView
1
Touch Screen
2 Home Key - Press once to display the
2
Home page. Repeat short presses to
cycle the favorite buttons. Press and
3
hold to display all favorite buttons as
4
an overlay on active page. Repeat
5
short presses to cycle the favorite
6
buttons.
3
Rotary Knob - Rotate to scroll
7
through menu items, then press to
confirm a selection. Rotate to adjust a
value and to zoom a zoomable panel.
3
4
2
5
4
Favorites
5
Man Over Board
(MOB) button
1/3 vertical
1/2 horizontal
2.
Drag the resize icon
to set preferred panel size
HOME
MENU
702
System Control Dialog
Gain quick access to system settings. Activate by:
POWER
pressing the
swiping from the top of the screen
POWER KEY
Note: Content of the System
Control dialog depends on
connected equipment.
Edit a favorite page
Enter the Favorites edit mode by:
3:16:20 pm 20.6ft
MENU
Quick Guide
4
X Key - Press once to exit a dialog, to
return to previous menu level and to
remove the cursor from the panel.
5
STBY / AUTO Key - Not applicable to
Mercury autopilot system.
6
Power Key - Press once to display the
System control dialog. Repeat short
presses to cycle the backlight bright-
ness.
7
Card Reader Door
or
3:16:20 pm 20.6ft
HOME
Tapping the Edit icon
Pressing and holding a favorite button
Select edit options
Edit favorite page
Delete favorite page
Add new favorite page
Follow on screen instructions to build
custom screens
3.
Save the changes by tapping
the screen
3:16:20 pm 20.6ft
HOME
MENU
MENU
8M0112861
