Mercury VESSELVIEW 704 Instruction Manual

VESSELVIEW 704
IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation
or service of our products. If you have not been trained in the recommended servicing or installation procedures for
these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician.
Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to
those installing or operating the product. Always refer to the appropriate Mercury Marine service manual for component
removal and installation instructions.
NOTE: After completing installation, place these instructions with the product for the owner's future use.

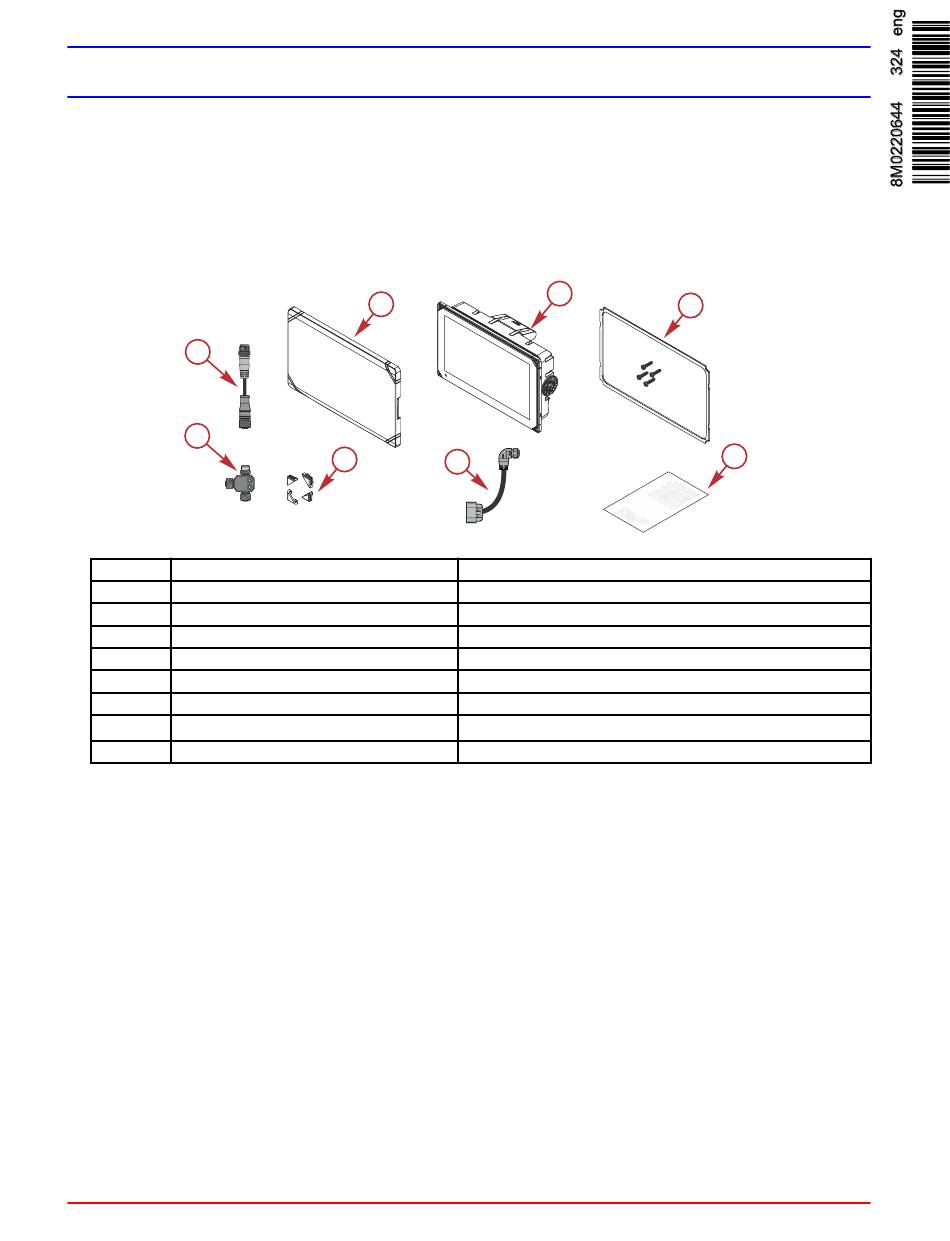

Components Contained in Kit
h
g
Ref.
a
b
c
d
e
f
g
h
Features
Front Controls
• The display will automatically turn on if the key switch is turned to the ON position or if the Power button is pressed.
•
The display will automatically turn off if the key switch is turned to the OFF position. If the Power button is pressed,
the unit will enter standby mode (the screen backlight turns off).
90-8M0220644 eng MARCH 2024
a
f
e
Qty.
1 Sun cover
1 VesselView display
1 Panel mounting kit
1 Documentation package and cutout template
1 Power cable
4 Corner clips
1
NMEA 2000
1 NMEA harness extension
