Mercury NMEA 2000 Instructions Manual

NMEA 2000 GATEWAY MODULE ASSEMBLY
CAN P MULTIENGINE (SINGLE THROUGH
QUAD APPLICATIONS) AND CAN H
MULTIENGINE (DUAL THROUGH QUAD
APPLICATIONS)
IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or
service of our products. If you have not been trained in the recommended servicing or installation procedures for these or
similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper
installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or
operating the product. Always refer to the appropriate Mercury Marine service manual for component removal and installation
instructions.
NOTE: After completing installation, place these instructions with the product for the owner's future use.
Gateway Module Assemblies
a
b

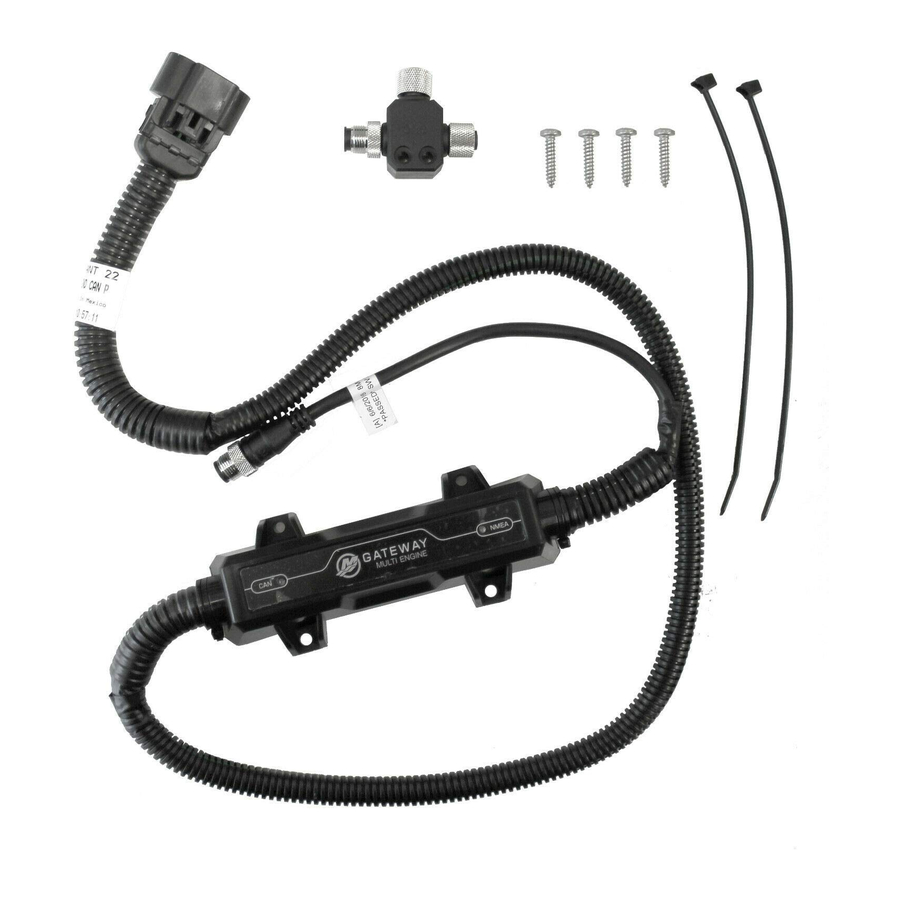

Components in Kit
b
Features
The CAN light and NMEA light will turn on when data is being transmitted through the Gateway.
NOTE: This installation instruction covers the installation of CAN P multiengine Gateway module used on single engine
through quad engine applications. It also includes CAN H multiengine applications, dual through quad used with autopilot
systems.
90-8M0153111 eng SEPTEMBER 2018
a
c
a - Multiengine Gateway (multiengine CAN
P)
b - Multiengine Gateway (multiengine CAN
H)
52145
a - Gateway module
b - Cable ties (2)
c - 10‑16 x 0.88 in. mounting screws (4)
d - NMEA "T" connector
d
50047
© 2018 Mercury Marine Page 1 / 10
