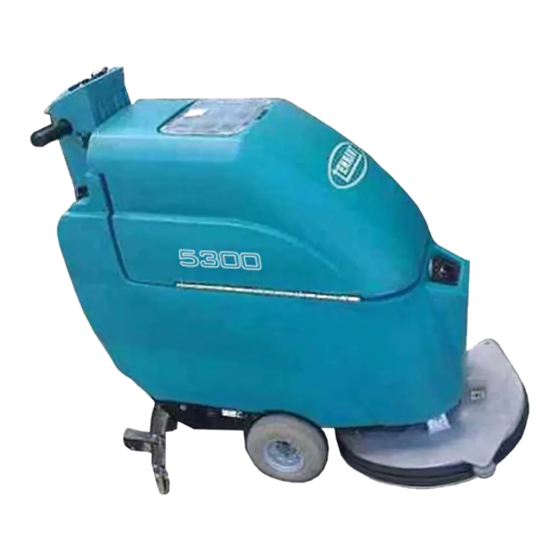

Tennant 5300 Use And Care Manual

Tennant 5300 Use And Care Manual

Floor scrubber
Hide thumbs Also See for 5300:

Advertisement

Available languages

Available languages

FOR SAFETY: READ OPERATOR'S MANUAL BEFORE OPERATING MACHINE.
WARNING: Failure to follow these warnings may result in personal injury, electrocution, electrical shock, fire or explosion: Do not use flammable
liquids or operate machine in or near flammable liquids, vapors or combustible dusts. Do not pick up flammable materials or reactive metals. Keep
sparks and open flame away. Keep battery hood open when charging. Disconnect battery cables before servicing machine.

DAILY: BEFORE EACH USE

1. Check battery meter
charge level. (See Battery
Charging Information
below).
Make sure the recovery
6.
tank float screen is clean.
FOR RECOMMENDED APPROVED CLEANING PRODUCTS, CONTACT YOUR AUTHORIZED DISTRIBUTOR OR SERVICE CENTER.

DAILY: AFTER EACH USE

Drain and rinse out
1.
recovery tank.
6. Check battery fluid level.
(See Battery Charging
Information)

MONTHLY:

1. Lubricate fitting on rear
caster with Lubriplate EMB
grease.
Tennant p/n 01433- - 1
613777 Rev 01 (10- -02)
USE and CARE Guide
2. Install brushes or new
pads on machine.
Check gaskets on
7.
bottom of recovery tank and
clean all debris.
Remove and clean float
2.
screen.
7. Clean machine with all
purpose cleaner and damp
cloth.
2. Check the leveling of the
squeegee assembly. The
full width of the squeegee
should have even contact
on the floor surface.
5300 Floor Scrubber
3. Check all switches and
motors to make sure they
operate properly.
Check solution tank
8.
filter in bottom of solution
tank.
Drain and rinse out
3.
solution tank.
8. Recharge batteries ONLY
if machine is used 30
minutes or more.
3. Clean the battery
corrosion from the top
surfaces of the batteries
and terminals. Use a strong
mixture of baking soda and
water.
Clean squeegee and
4.
check condition of wiping
edge. Turn blade over if
worn.
Check scrub head skirt
9.
adjustment. The skirt
should touch the floor.
Remove pads/ brushes
4.
and clean.
BATTERY CHARGING
INFORMATION:
Before charging, check
battery fluid level. The fluid
level (A) should cover the
battery plates (B) a 1/4". Add
distilled water if needed. DO
NOT OVERFILL.
When disconnecting the
battery charger always
remember to unplug the
charger from the wall outlet
first.
Brush the mixture sparingly
over the batteries, terminals
and cable clamps. Use a
wire brush to clean the
terminal posts. After
cleaning, apply a coating of
clear battery post
protectant to the terminals
and cable connectors. Keep
battery tops clean and dry.
Make sure recovery tank
5.
is empty. Check tank lid and
gasket for defects.
Fill 12 gal. (45.5 L)
10.
solution tank with water and
add approved products.
Wipe clean the squeegee
5.
blades.
B
A
ATTENTION: FOR MACHINE
REPAIRS CONTACT AN
AUTHORIZED SERVICE
CENTER.
