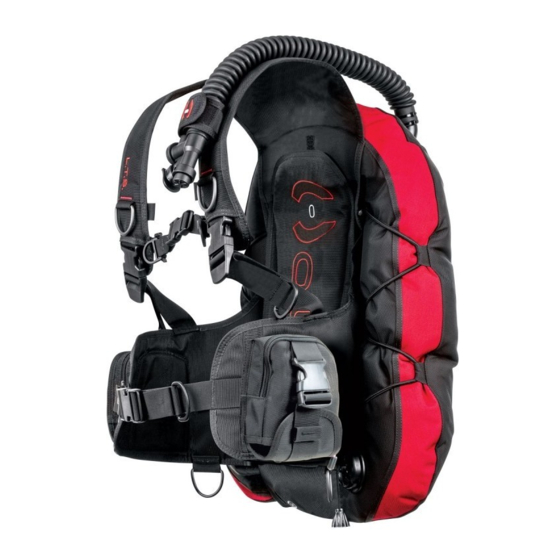

LTS BCD
USER GUIDE
© Hollis (2014)
Doc. 12-4179-r01 (8/29/14)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTS BCD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hollis LTS BCD

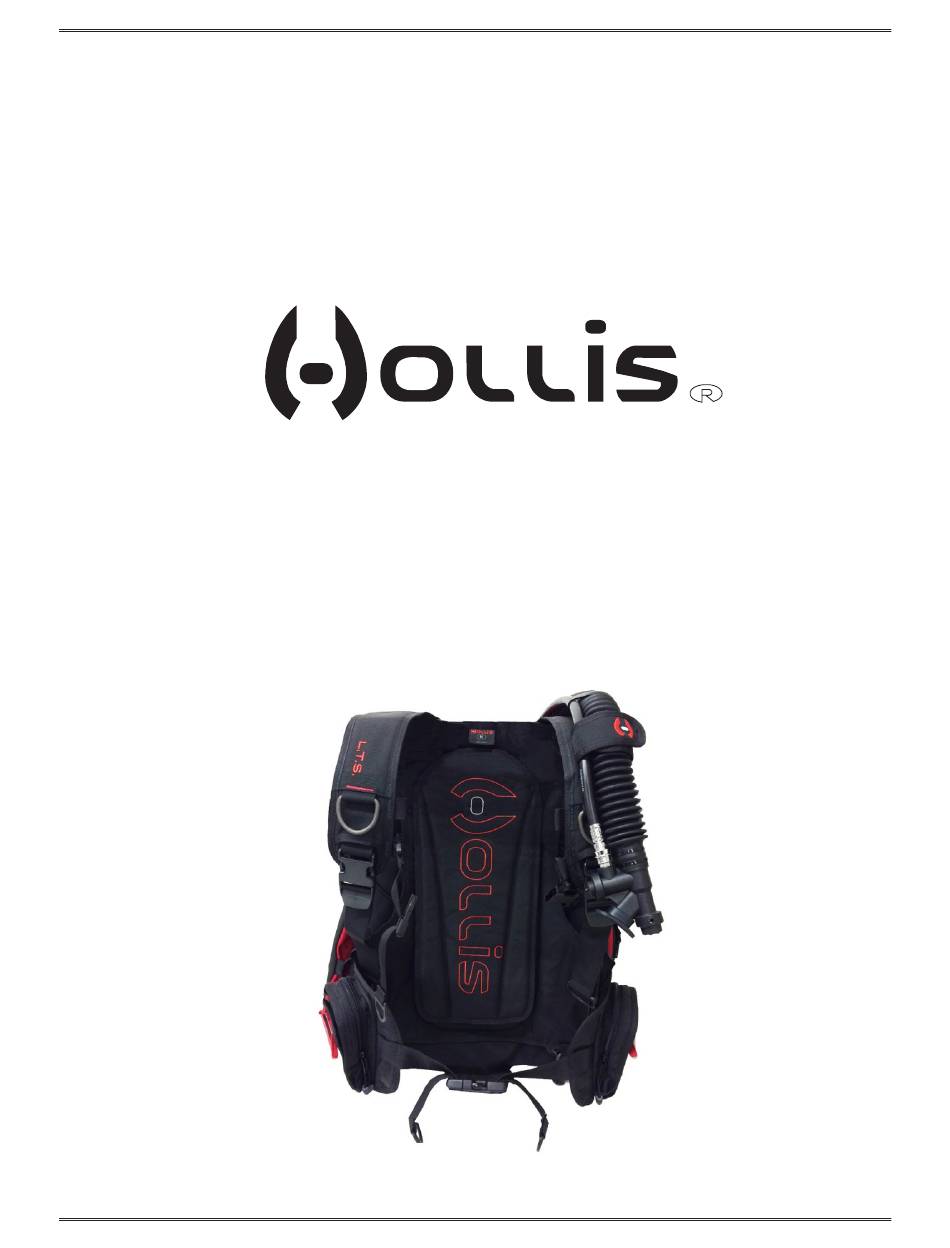

  • Page 1 LTS BCD USER GUIDE © Hollis (2014) Doc. 12-4179-r01 (8/29/14)
  • Page 2: Table Of Contents

    LTS BCD USER GUIDE Contents NOTICES................................3 DANGERS, WARNINGS, CAUTIONS, & NOTES....................3 WARNINGS................................4 INTRODUCTION..............................5 CARE AND MAINTENANCE..........................5 INFLATOR AND DUMP VALVE USE........................6 ATTACHING A TANK.............................7 INTEGRATED WEIGHT SYSTEM...........................9 STERNUM STRAP ..............................10 DONNING AND FITTING............................10 RECORDS................................11 INSPECTIONS AND SERVICE..........................11 NOTES.................................11 © Hollis (2014)
  • Page 3: Notices

    San Leandro, CA USA 94577 (510)729-5110 TRADEMARK, TRADE NAME, AND SERVICE MARK NOTICE HOLLIS, the HOLLIS logo type, and LTS are registered and unregistered trademarks, trade names, and service marks of HOLLIS. All rights are reserved. PATENT NOTICE U.S. Patents have been issued, or applied for, to protect the following design features: Backpack Systems (U.S.
  • Page 4: Warnings

    - DO NOT inhale gases from within any Hollis BC. - If you do not fully understand how to use your Hollis BC, or if you have any questions regarding its functions, you should seek instruction in its use from your authorized Hollis dealer before you utilize this product.
  • Page 5: Introduction

    Care and maintenance Your Hollis BC is a reliable piece of equipment that was designed to withstand the rigors of diving. It will last for many years if cared for properly. Follow the procedures below to ensure a long life for your BC. You should have the entire BC inspected and serviced annually by an authorized Hollis dealer to ensure it is operating properly and no components are showing signs of wear.
  • Page 6: Inflator And Dump Valve Use

    LTS BCD USER GUIDE Inflator and dump valve use W LP Hose Connector Power Inflator Button Mouthpiece Deflate/(Manual Inflate) Button working pressures: min = 120 psi (8 Bar), nominal = 140 psi (9 Bar), max = 160 psi (11 Bar) NOTE: Install the inflator hose to your regulator per your regulator's instructions, or have an autho- rized technician attach the LP hose to the regulator first stage.
  • Page 7: Attaching A Tank

    LTS BCD USER GUIDE attaching a tank The LTS is only designed to handle a single tank and uses a single cam band and guide strap. Use the at- tached adjustable guide strap to position the tank on the LTS by placing it around the neck of the tank (Fig. 1).
  • Page 8 LTS BCD USER GUIDE • Now weave the band through the bottom slot (Labeled 3) of the buckle so the band is against the tank (Fig. 4, 5). Pull the band tight to make sure there is no slack around the tank or in the buckle weave (Fig. 6).
  • Page 9: Integrated Weight System

    LTS BCD USER GUIDE Integrated weight system LOADING WEIGHT POUCHES INTO WEIGHT POCKETS The LTS utilizes removable zippered weight pouches. Each pouch can be filled with up to 5 lbs (2.27) kg hard or soft weight. Once loaded with weight, place the weight pouches inside the pockets on the LTS waist, as shown (Fig.
  • Page 10: Sternum Strap

    Fine tune the fit as needed. NOTE: If you have any questions regarding your Hollis gear, visit your authorized Hollis retailer or con- tact Hollis Inc. and speak with one of our technical support representatives.
  • Page 11: Records

    LTS BCD USER GUIDE Records LTS SERIAL NUMBER: DATE OF PURCHASE: HOLLIS DEALER: DEALER PHONE NUMBER: Inspections and service DATE SERVICE PERFORMED DEALER/TECHNICIAN NOTES: San Leandro, CA USA 94577 (510)729-5110 www.hollisgear.com e-mail: info@hollisgear.com © Hollis (2014) Doc. 12-4179-r01 (8/29/14)
