IntesisBox

BACnet/IP Server – Modbus TCP master

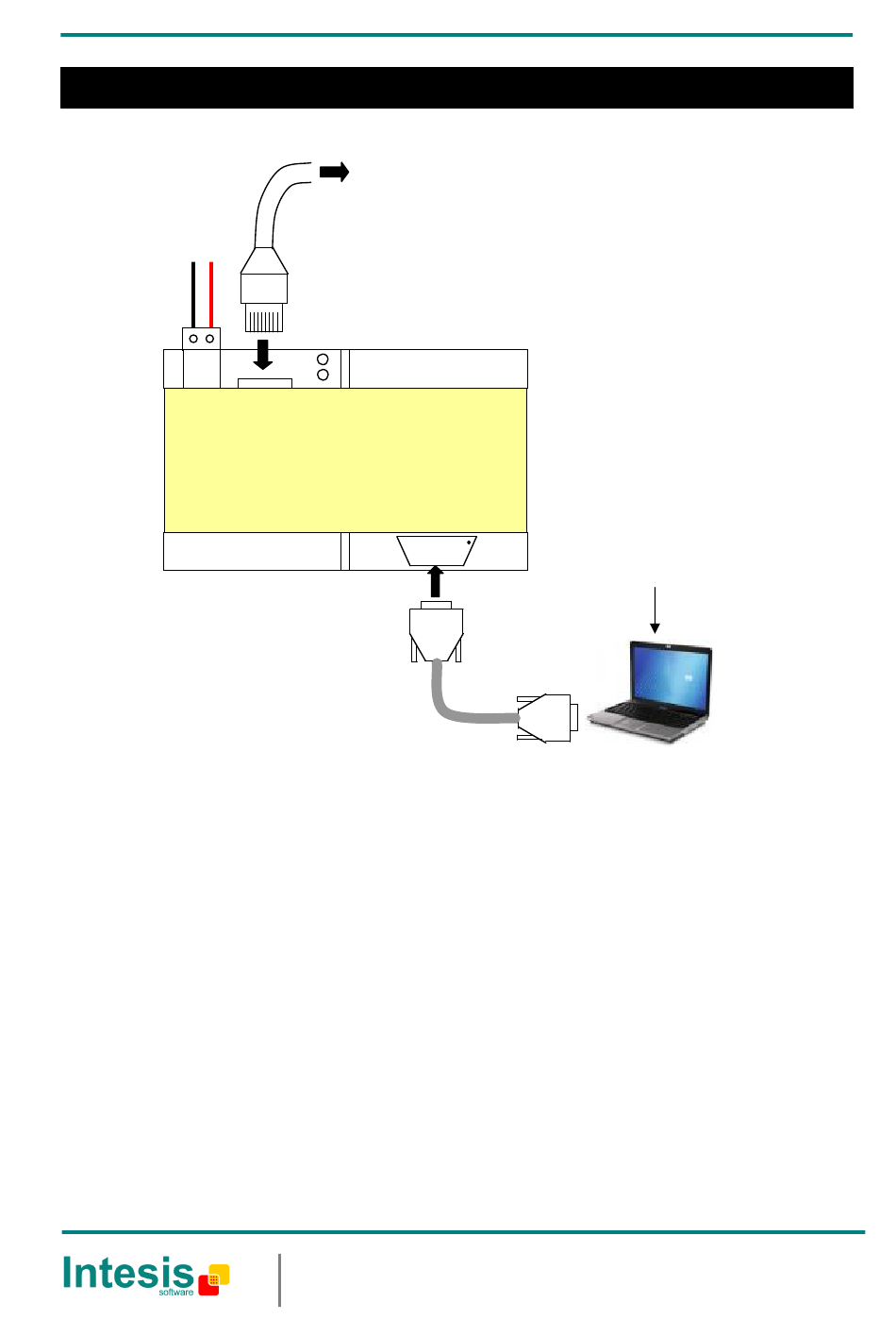

Connections

Power

See Note 1

CMN 24Vac

9 - 30Vdc

Max.125 mA

24Vac

Max.127mA

50-60Hz

________________________________________________________________________________________

Notes:

Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply.

If using DC power supply:

Respect polarity applied of terminals (+) and (-). Be sure the voltage applied is within the range admitted (9 to 30 Vdc). The power supply can

•

be connected to earth but only through the negative terminal, never through the positive terminal.

If using AC power supply:

Make sure the voltage applied is of the value admitted (24 Vac). Do not connect any of the terminals of the AC power supply to earth, and

•

make sure the same power supply is not supplying any other device.

Modbus TCP connection. Connect the cable coming from the Modbus TCP network to the connector ETH of IntesisBox, use a crossover or straight

ethernet CAT5 cable connecting to a switch or hub of the LAN of the building. Contact the network administrator and make sure that TCP/IP traffic and the

TCP port used (502 by default) are allowed through all the LAN path.

BACnet/IP connection: Connect the cable coming from the BACnet/IP client to the connector ETH of IntesisBox, use a crossover or a straight ethernet

CAT5 cable connecting to a hub or switch of the LAN of the building. Contact the network administrator and make sure that UDP traffic and the port used

(47808 by default) are allowed through all the LAN path.

Use the software LinkBoxBacnet to configure IntesisBox. See the user's manual for details.

This information is subject to change without notice.

Modbus TCP

BACnet/IP

See Note 2

Ethernet

RJ45

Ethernet

Modbus TCP

BACnet/IP

IntesisBox
