Design:

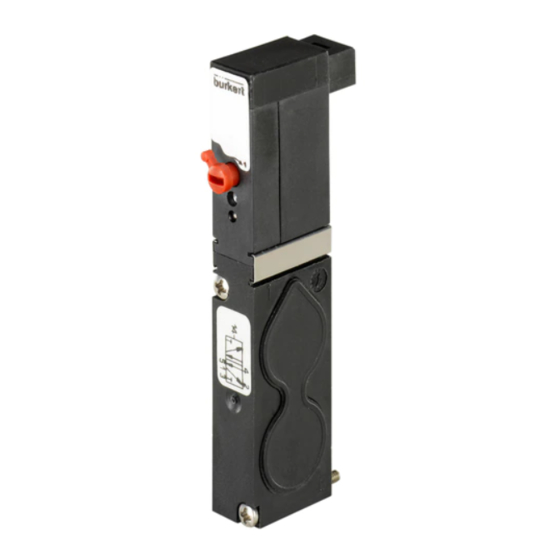

5-way solenoid valve, internally piloted

Seal Materials and Fluids handled:

See Table 1.

Fluid and Ambient Temperature:

For Hazardous Locations Div. 1 (T4 rated)
Max. Ambient Temperature
Max. Fluid Temperature
For Hazardous Locations Div. 1 (T6 rated)
Max. Ambient Temperature
Max. Fluid Temperature
For Intrinsically Safe Apparatus for use in Class I, II and III,
Division 1 Hazardous Locations.
Max. Ambient Temperature
Max. Fluid Temperature
For Hazardous Locations Div. 2 and Ordinary Locations:
See Table 1.

Pressure Range:

Maximum inlet pressure see label on valve.

Installation:

Before installing valve ensure that piping etc. is free of foreign
matter (metal shavings, pipe sealing materials, welding scale
etc.). Installation as required but preferable with coil uppermost.
Installation in this position tends to prevent foreign matter
remaining in core tube (increased life). Do not put any loads on
coil unit.
PTFE tape is recommended for sealing ports. Mounting is
accomplished by means of four M4 x 8 mm tapped holes
located on the valve underside. Letters on valve body indicate
pressure port, exhaust and outlet of the valve.
Table 1
Fluid
Air
Operating Instructions

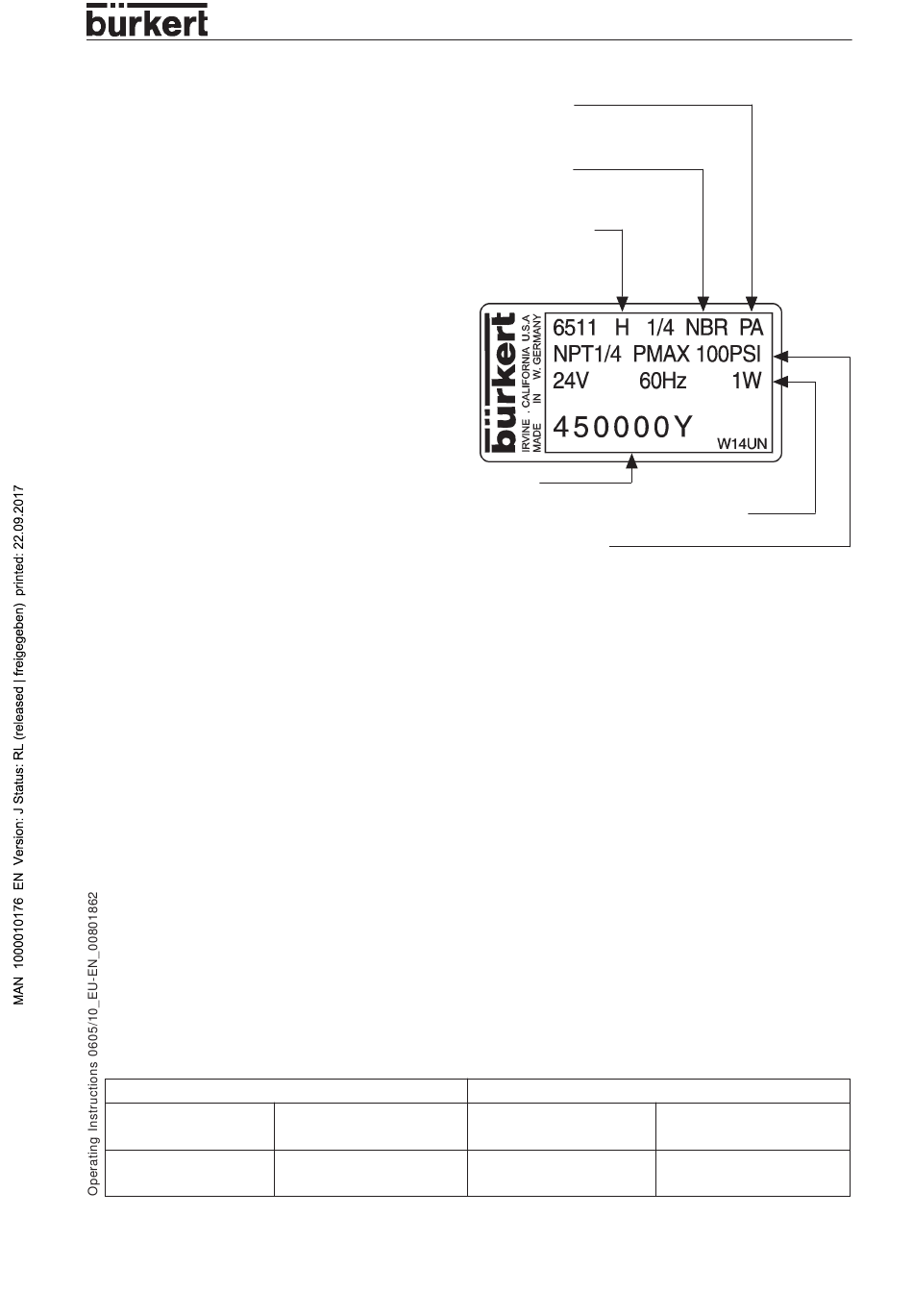

Marking (example):

Body Material
PA
AL
Seal Material
NBR
104 °F (40 °C)
FKM
140 °F (60 °C)
Circuit function
H = 5-way
104 °F (40 °C)
140 °F (60 °C)
140 °F (60 °C)
140 °F (60 °C)
Item No.
Voltage / Frequency / Power Consumption
Maximum Pressure

Approvals

The valve is either approved as
or
or
or
See label on the valve.
Temperatures [°F]
Fluid Temp.
Ambient
=
Polyamide
=
Aluminium
=
NBR
=
FKM
General Purpose valve for Hazardous Locations
Class I, Division 1, Group A, B, C, D
Class II, Division 1, Group E, F, G
Class III, Division 1 and 2
Operating Temperature T 4
General Purpose valve for Hazardous Locations
Class I, Division 1, Group A, B, C, D
Class II, Division 1, Group E, F, G
Class III, Division 1 and 2
Operating Temperature T 6
Intrinsically Safe Apparatus for Hazardous Locations
Class I, Division 1, Group A, B, C, D
Class II, Division 1, Group E, F, G
Class III, Division 1 and 2
Operating Temperature T 6
FM approved as
Nonincendive for Hazardous Locations
Class I, Division 2, Group A, B, C, D
Class II, Division 2, Group F, G
Class III, Division 1 and 2
Operating Temperature T 4
UL listed for General Purpose
CSA approved for General Purpose
Seal Materials
PB
+ 10 to +122
+ 10 to +130
Type 6511
Buna "N"
NBR
+ 10 to +122
+ 10 to +130
