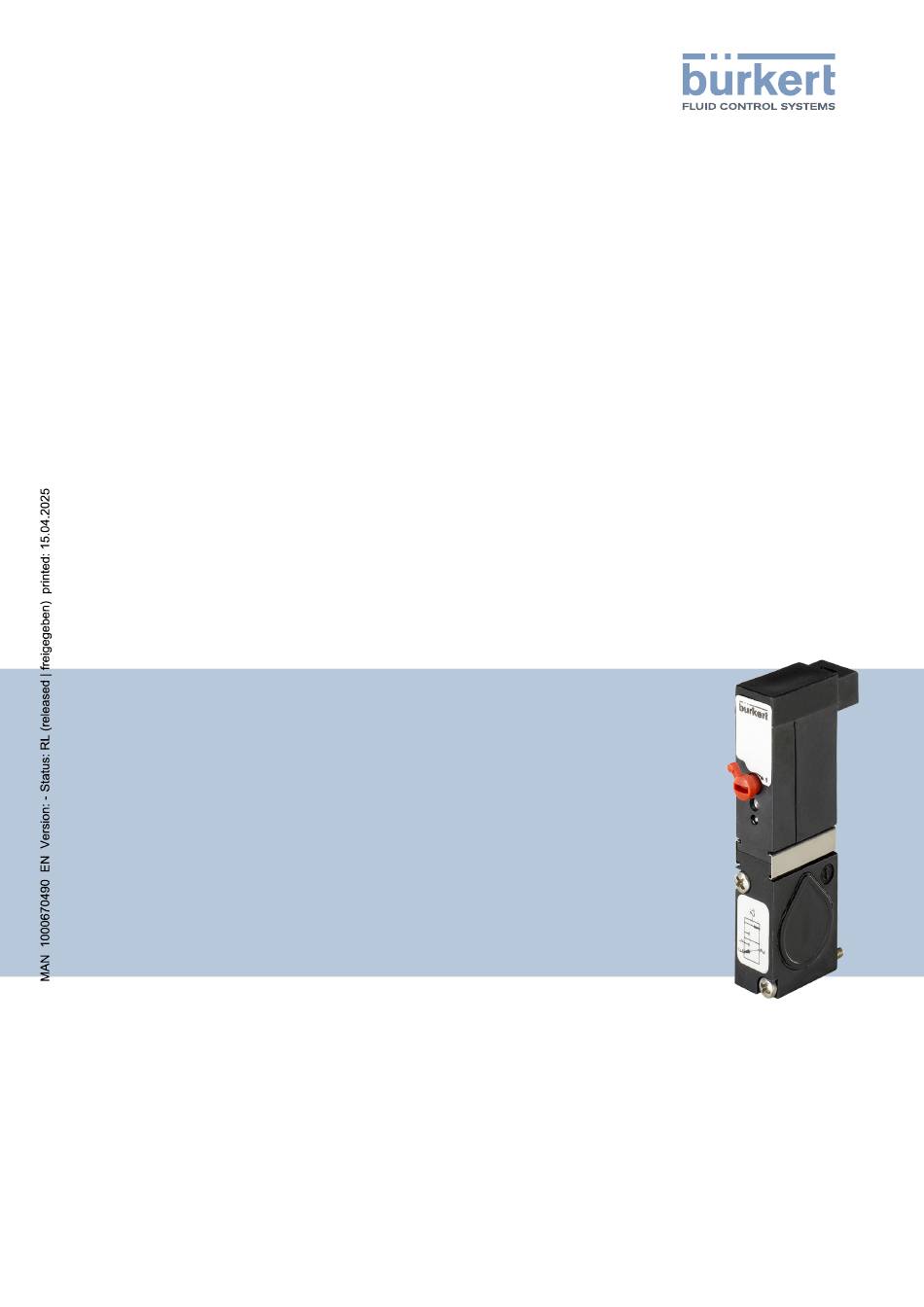

- Page 1 Type 6510 3/2-way solenoid valve for pneumatic applications Operating Instructions for all variants...
- Page 2 We reserve the right to make technical changes without notice. © Bürkert Werke GmbH & Co. KG 025 Technical documentation 2504/00_GBen_60039750_1007813259_1007850379 / Original DE...
-
Page 3: Table Of Contents
Type 6510 Table of contents Table of contents About this document 4 Symbols 4 Terms and abbreviations 5 Manufacturer 5 2 Safety 6 Intended use 6 Safety instructions 6 3 Product description 9 Product structure 9 Type label 10 Circuit function 10... -
Page 4: About This Document
Type 6510 About this document About this document The document is an important part of the product and guides the user to safe installation and operation. The information and instructions in this document are binding for the use of the product. -
Page 5: Terms And Abbreviations
About this document Terms and abbreviations The terms and abbreviations are used in this document to refer to following definitions. Device 3/2-way solenoid valve for pneumatic applications, Type 6510 Unit for relative pressure Manufacturer Bürkert Fluid Control Systems Christian-Bürkert-Str. 13−17... -
Page 6: Safety
Type 6510 Safety Safety Intended use The device is designed to control the flow of media. The permissible media are listed in chapterTechnical data [} 11] Prerequisites for safe and trouble-free operation are proper transport, storage, installation, commissioning, operation and maintenance. - Page 7 Type 6510 Safety ▶ Observe any applicable accident prevention and safety regulations for electrical devices. Changes and other modifications, spare parts and accessories Changes to the device, incorrect installation or use of non-approved devices or components create hazards that can lead to accidents and injuries.
- Page 8 Type 6510 Safety Electrostatically sensitive components and assemblies The device contains electronic components that are susceptible to the effects of electrostatic discharging (ESD). Components that come into contact with electrostatically charged persons or objects are at risk. In the worst case scenario, these components will be destroyed immediately or fail after start-up.
-
Page 9: Product Description
The solenoid valves can be used either individually or as a valve block on modular pneumatic base modules. Product structure Fig. 1: 3/2-way solenoid valve, Type 6510 1 Electrical connection 2 Flipper solenoid valve Type 6144 3 3/2-way pneumatic seat valve... -
Page 10: Type Label
Type 6510 Product description Type label Fig. 2: Type 6510 type label (example) 1 Type 2 Circuit function 3 Orifice 4 CE marking 5 Switch position manual override 6 Operating voltage 7 Manufacture code 8 Article number 9 Operating pressure Circuit function... -
Page 11: Technical Data
Type 6510 Technical data Technical data Standards and directives The device complies with the valid EU harmonisation legislation. The harmonised standards that have been applied for the conformity assessment procedure are listed in the current version of the EU Declaration of Conformity. -
Page 12: Installation
Type 6510 Installation Installation Risk of injury or material damage when working on the device or system. ▶ Read and observe the chapter Safety [} 6] before working on the device or system. Preparatory work Any installation position, preferably actuator face up. -
Page 13: Construction Of Valve Blocks
Installation Construction of valve blocks Pneumatic basic modules are available as accessories (see Type SVVI under country.burkert.com). By combining 2-way and 3-way basic modules, valve blocks of any size can be configured. Further information on the construction of valve blocks can be found at country.burkert.com... -
Page 14: Electrical Connection
Type 6510 Electrical connection Electrical connection Risk of injury or material damage when working on the device or system. ▶ Read and observe the chapter Safety [} 6] before working on the device or system. Connection variants Fig. 3: Connection variants pilot valve Type 6144... -
Page 15: Fluidic Connection
Type 6510 Fluidic connection Fluidic connection Risk of injury or material damage when working on the device or system. ▶ Read and observe the chapter Safety [} 6] before working on the device or system. Pilot valve pin assignment 1/P 2/A 3/R Fig. 4: Working port 1/P is always on the side of the manual override... -
Page 16: Commissioning
Type 6510 Commissioning Commissioning Risk of injury or material damage when working on the device or system. ▶ Read and observe the chapter Safety [} 6] before working on the device or system. Before start-up ▶ Check connections, voltage and operating pressure. -
Page 17: Pilot Valve Manual Override
Type 6510 Pilot valve manual override Pilot valve manual override Fig. 6: Pilot valve manual override To manually switch the valve, turn the manual override in the direction of the arrow to number 1. The valve remains fixed in the switched state until the manual override is turned back to its original position. -
Page 18: Maintenance
Type 6510 Maintenance Maintenance Risk of injury or material damage when working on the device or system. ▶ Read and observe the chapter Safety [} 6] before working on the device or system. 18 | 21... -
Page 19: Troubleshooting
Type 6510 Troubleshooting Troubleshooting 11.1 Valves do not switch Cause Solution Manual override of the valves not in ▶ Bring the manual override into the neutral position. neutral position. Pressure supply insufficient or not ▶ Set up the largest possible volume of pressure supply available. -
Page 20: Spare Parts And Accessories
Type 6510 Spare parts and accessories Spare parts and accessories Risk of injury and/or damage due to incorrect parts. ▶ Use only original accessories and original spare parts from Bürkert. Order the parts directly on our eShop. 20 | 21... -
Page 21: Logistics
Type 6510 Logistics Logistics 13.1 Transport and storage ▶ Protect the device against moisture and dirt in the original packaging during transportation and storage. ▶ Avoid UV radiation and direct sunlight. ▶ Protect connections from damage with protective caps. ▶ Observe permitted storage temperature.
