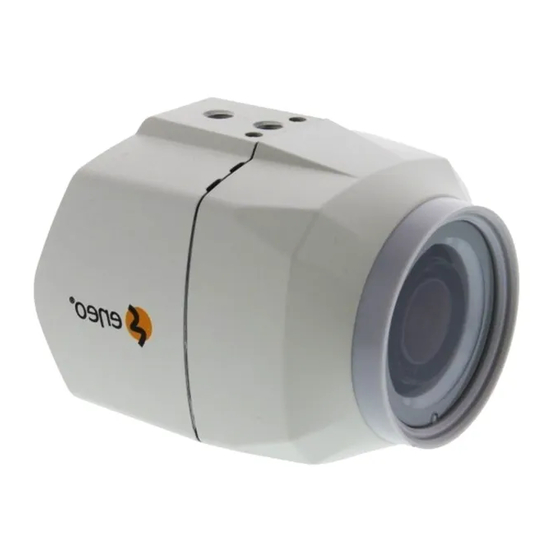

- Page 1 User Manual 1/2.9” HD Camera, 2560x1440, Day&Night, AF Zoom, WDR, 3.2~9mm, Indoor MPC-54A0003M0A...
-
Page 2: Table Of Contents
Table of content Parts supplied ....................... 5 Part names ......................6 Operating instructions ..................7 Power Supply connections........................7 Using OSD Control controller ........................ 7 OSD menu table ............................8 OSD Menu Setup ....................10 1. ZOOM / FOCUS ............................ 10 2. - Page 3 Safety instructions General safety instructions • Before switching on and operating the system, rst read this safety advice and the operating instructions. • Keep the operating instructions in a safe place for later use. • Installation, commissioning and maintenance of the system may only be carried out by authorised individuals and in accordance with the installation instructions - ensuring that all applicable standards and guidelines are followed.
- Page 4 Class A device note This is a Class A device. This device can cause malfunctions in the living area; in such an event, the operator may need to take appropriate measures to compensate for these. WEEE (Waste Electronical & Electronic Equipment) Correct Disposal of This Product (Applicable in the European Union and other European countries with separate collection systems).
-
Page 5: Parts Supplied
Parts supplied • Box camera • Operating instructions... -
Page 6: Part Names
Part names Mount Holes (Top / Bottom) Front Case Rear Case Window ④ HD-ANALOG CONTROL ① ⑤ HD-SDI EX-SDI ⑥ POWER ② ⑦ ③ OSD Control Joy stick Video format selection Switch Power input terminal (AC24V/DC12V) HD-Analog output connector RS-485 / IR connector Power LED HD-SDI/EX-SDI output connector CAUTION:... -
Page 7: Operating Instructions
Operating instructions Power Supply connections Camera can work with either 24VAC or 12VDC, dual voltage power. Primary and secondary grounds are completely isolated to avoid the possible ground-loop problems. Using OSD controller Setup menu can be accessed and controlled by OSD control joystick on the rear of the camera unit. -
Page 8: Osd Menu Table
Operating instructions OSD menu table MENU SUB Menu Con guration ZOOM SLOW, MID, FAST ZOOM SPEED POI ZOOM H/V-POINTER PRESET ZOOM ZONE NUM, ZONE VIEW, H/V POS, ZOOM RATIO SMART MOTION ZOOM ZONE NUM, WINDOW USE, MOTION WIN SET, H/V POINTER, ZOOM/FOCUS ZOOM RATIO, DURATION, SENSITIVITY HOME POSITION... - Page 9 MIRROR / FLIP OFF, HV, Hor., Ver. PRIVACY ZONE NUM, ZONE DISP, H/V-POS, H/V-SIZE, MASK COLOR, TRANSPARENCY POLYGON ZONE NUM, ZONE DISP, POS 0-X/Y, POS 1-X/Y, POS 2-X/Y, SPECIAL POS 3-X/Y, MASK COLOR, TRANSPARENCY OFF, ON RANGE 10% ~ 30% FILTER LOW, MIDDLE, HIGH AUTO-C...
-
Page 10: Osd Menu Setup
OSD Menu Startup Press the ‘OSD menu SET key’ down to access the setup menu mode. • RETURN : Returns to the previous menu. • EXIT : Exits the current menu with SAVE or CANCEL. MENU V1. XX 1. ZOOM/FOCUS 2. - Page 11 POI ZOOM PRESET ZOOM H-POINTER ZONE NUM V-POINTER ZONE VIEW RETURN H-POINTER V-POINTER ZOOM RATIO OZ X1.1 RETURN SMART MOTION ZOOM ZONE NUM WINDOW USE MOTION WIN SET H-POINTER V-POINTER ZOOM RATIO OZ X1.0 DURATION 5 SEC SENSITIVITY llllllllllllllllllllll RETURN 1-1-4.
- Page 12 1-1-6. RATIO DISP : ON enables to display the zoom ratio on the bottom right corner. OZx.x appears during the optical zoom and DZx.x will display by multiplying the optical zoom ratio and the actual digital zoom ratio. 1-2. FOCUS FOCUS FOCUS FOCUS MODE...
-
Page 13: Exposure
2. EXPOSURE 2. EXPOSURE MODE AUTO BRIGHTNESS DAY llllllllllllllllllllll BRIGHTNESS NIGHT llllllllllllllllllllll SENS-UP llllllllllllllllllllll RETURN 2-1. MODE Selects EXPOSURE MODE to AUTO, IRIS PRIOR, SHUT. PRIOR, MANUAL and Flickerless. If you set to WDR in SCENE ENHANCE menu, SHUT. PRIOR, MANUAL and FLICKERLESS modes are disabled. -
Page 14: Scene Enhance
2-4. SENS-UP The brighter video can be obtained by increasing the exposure time in the night with SENS-UP. It can be set to O , x2, x4, x8, x16 or x32. Higher setting can get the brighter video but the slower frame rates with more white pixels. - Page 15 3-1-1. WDR MODE • DOL (Digital OverLap): It is compensated video image by 3 layer data of low, middle and high shutter. • FRAME : It is conventional WDR mode. 3-1-2. ROI MODE (Region Of Interest) : Sets speci c area of WDR by window setting. Select window zone number from 0 to 3 and window use set to on.
-
Page 16: D-Nr
4. 3D-NR (Digital Noise Reduction) DNR function improves picture quality by ltering out signal noise which is generated under the low light conditions. Sets o , low, middle or high level. 3DNR(3-dimensional noise reduction) which reduces the noise by the multi frames. It is e ective at low light. - Page 17 5-1-3. DELAY D→N DELAY is time in second while camera maintains its status before Day to Night switches. DELAY can avoid the unwanted/frivolous switching by a short term lights such as light from the passing car. Sets delay term low, middle or high.
-
Page 18: Pict. Adjust
5-3. COLOR The camera is always in COLOR mode. Forcibly DAY/NIGHT is disabled and outputs color video. 5-4. COLOR DN Forcibly Color mode, optimized for night condition. It is available to recognize colors of car, people and moving objects even at night. Parameters can be controllable & programmable according to circumstance. -
Page 19: Special
6-2. SHARPNESS Sets the Sharpness level 0~10. Increases or decreases the sharpness of the picture. Too much sharpness can make image harsh and show more noise as well as line icker at the edge of object in the picture. 6-3. COLOR GAIN DAY Sets the color gain control level in DAY mode. - Page 20 7-1. MIRROR/FLIP Reverses the video left and right and/or up and down by MIRROR/FLIP. When the video is reversed by Ver. or HV, then the joystick directions are reversed accordingly. This feature is very useful when a camera in installed in upside down. •...
-
Page 21: System
7-2-2. POLYGON • ZONE NUM : Selects mask zone number from 0 to 3 to be adjusted. • ZONE DISP: Displays OFF/ON for the mask area which you selected zone. • POS0-X,Y~POS3-X,Y : Adjusts the mask area H, V position and make polygon shape which you selected zone. -
Page 22: Exit
: Exits SETUP MENU and returns to the normal display. 9-1. SAVE : Save all the setting and exit the setup menu. 9-2. CANCEL : Exit the setup menu without save. Further information The manual is also available from the eneo web site at www.eneo-security.com. - Page 24 VIDEOR E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
