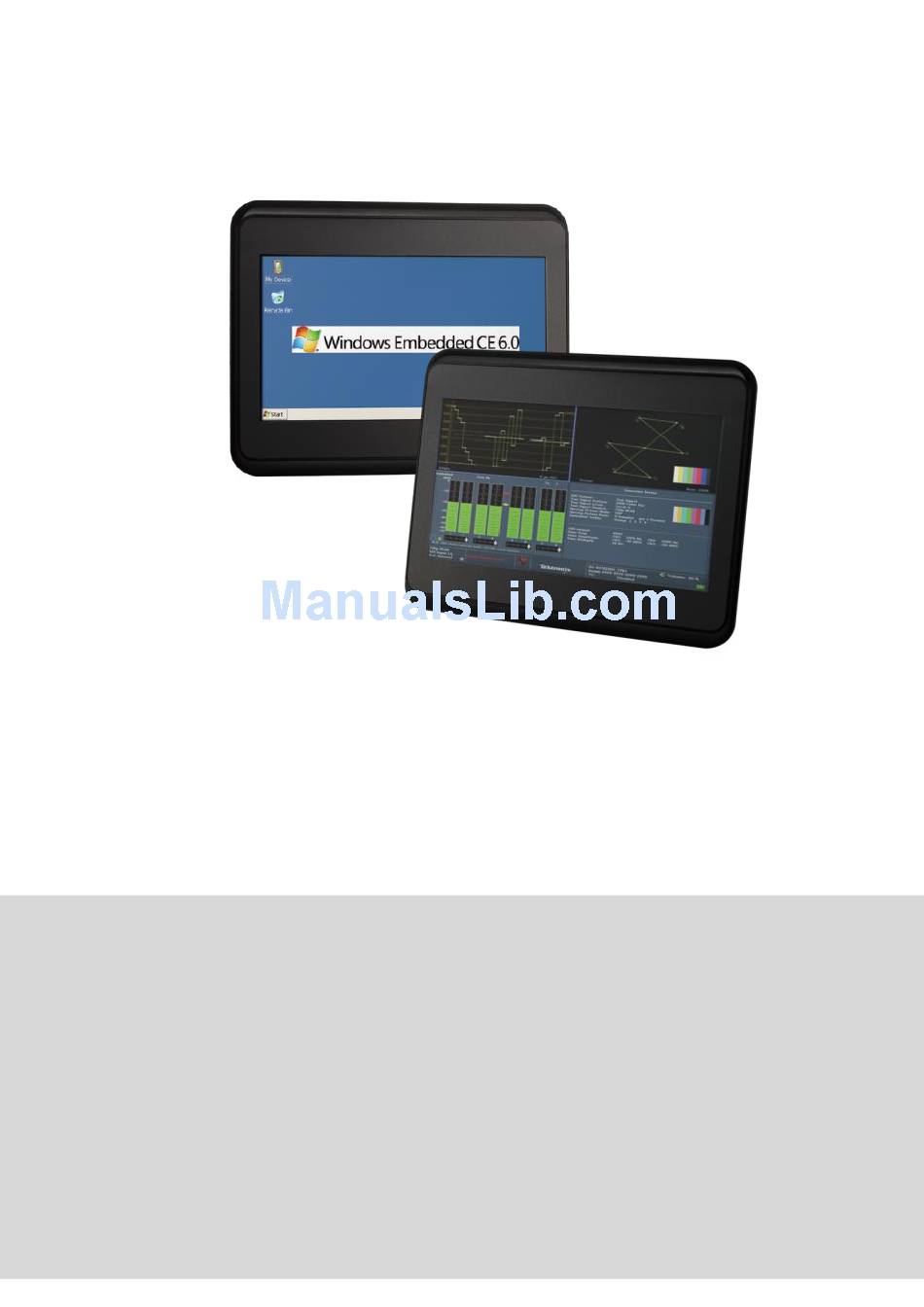

- Page 1 User’s Manual HMI-043T-B DMP Vortex86 EXm Processor Compact Panel PC with 4.3” Touchscreen HMI-043T-EM41N-B HMI-043T-EM41B-B HMI-043T-EM42N-B HMI-043T-EM42B-B (Version 1.8A) HMI-043T User’s Manual IUMHMI043T-01 Ver.1.0A Jul, 2014...
- Page 2 REVISION DATE VERSION DESCRIPTION 2015/02/01 Version 1.0A New Release 2015/12/04 Version 1.1A Correct power input range 1. Correct LED luminance 2016/01/27 Version 1.2A 2. Add ordering part numbers 2016/07/05 Version 1.3A Add USB WLAN solution 1. Correct the website Section 3.1 2016/09/09 Version 1.4A 2.
- Page 3 All names mentioned herewith are served for identification purpose only. For more detailed information or if you are interested in other ICOP products, please visit our official websites at: Global: www.icop.com.tw...
- Page 4 SAFETY INFORMATION Read these Safety instructions carefully. Please carry the unit with both hands, handle carefully. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet. Do not expose your Panel PC to rain or moisture in order to prevent shock and fire hazard.
-
Page 5: Table Of Contents
Content Content ..........................iv Ch. 1 General Information ....................1 1.1 Product Description ....................2 1.2 Product Specifications ..................... 3 1.3 Inspection standard for TFT-LCD Panel ..............5 1.4 Product Dimensions ....................7 1.5 Ordering Information ....................8 Ch. 2 System Installation ....................10 2.1 CPU Board Outline .................... -
Page 6: Ch. 1 General Information
General Information 1.1 Product Description 1.2 Product Specifications 1.3 Inspection standard for TFT-LCD Panel 1.4 Product Dimensions 1.5 Odering Information HMI-043T-B User’s Manual IUMHMI043T-B Ver.1.8A Jun, 2018... -
Page 7: Product Description

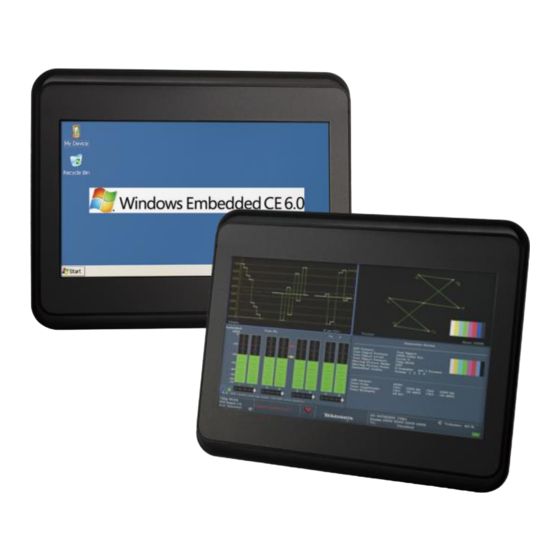

1.1 Product Description ICOP Technology Inc. is proudly going to release a brand new HMI, which offers fanless design, low power consumption, and IP65 front panel. The HMI-043T is powered by DMP Vortex86Exm SoC, the new generation SoC of Vortex86 family, which is included 128MB/256MB memory and eMMC Flash memory. -
Page 8: Product Specifications
1.2 Product Specifications HARDWARE SPECIFICATIONS DMP Vortex86Exm 400MHz BIOS Coreboot BIOS L1:16KB I-Cache, 16KB D-Cache Cache L2: 4-way, 128KB L2 Cache Memory Integrated 128MB / 256MB DDRIII onboard Nand-Flash 512MB/4GB eMMC onboard (Optional) Network Integrated 10/100Mbps Ethernet x 1 Optional upon 10/100Mbps Ethernet x 1 (Optional) Support IEEE 802.3AF, PoE/PD... - Page 9 LCD SPECIFICATIONS 4.3” WQVGA TFT LCD Display Type Backlight life 20,000 hrs Display Resolution 480(W) x 272(H) Luminance (cd/m 280 cd/m Contrast Ratio 450 : 1 Display Color 16.7M Pixel Configuration R.G.B Vertical Stripe Viewing Direction 6 o’clock Viewing Angle Vertical 120 , Horizontal 140 TOUCHSCREEN...
-
Page 10: Inspection Standard For Tft-Lcd Panel
1.3 Inspection standard for TFT-LCD Panel DEFECT TYPE LIMIT Note φ＜0.15mm Ignore 0.15mm≦φ≦0.5mm N≦4 SPOT Note1 0.5mm＜φ 0.03mm<W≦0.1mm, L≦5mm N≦3 FIBER Note1 VISUAL 1.0mm＜W, 1.5mm＜L INTERNAL DEFECT φ＜0.15mm Ignore POLARIZER 0.15mm≦φ≦0.5mm N≦2 Note1 BUBBLE 0.5mm＜φ It’ OK if mura is slight visible through 6%ND filter Mura A Grade B Grade... - Page 11 [ Note 2 ] Bright dot is defined through 6% transmission ND Filter as following. [ Note 3 ] Display area C Area: Center of display area O Area: Outer of display area [ Note 4 ] Judge the defect dot and the adjacent dot as following. Allow below (as A, B, C and D status) adjacent defect dots, including bright and dark adjacent dot.
-
Page 12: Product Dimensions
1.4 Product Dimensions HMI-043T-B User’s Manual IUMHMI043T-B Ver.1.8A Jun, 2018... -
Page 13: Ordering Information
1.5 Ordering Information Product CPU Type CPU Clock Flash onboard Code Size 043T EM(EXm) 3 (300MHz) 1 (128MB) N (No Flash) O (Open Frame) 4 (400MHz) 2 (256MB) B (512MB) B (O type + Case) E (4GB) B01 (B type + I/O board with case) B02 (B type + PoE I/O board with case) BC1(B type + CAN I/O board with case) BF (O type + Case + RFID) - Page 14 PART NUMBER DESCRIPTION HMI-043T-EM41N-B01 4.3" HMI w/128MB/SD/USB/RS232/485/DC+7-24V HMI-043T-EM41N-B02 4.3" HMI w/128MB/SD/USB/POE/RS232/485/DC+7-24V 4.3" HMI w/128MB/512MB eMMC HMI-043T-EM41B-B01 /USB/RS232/485/DC+7-24V 4.3" HMI w/128MB/512MB eMMC HMI-043T-EM41B-B02 /USB/POE/RS232/485/DC+7-24V HMI-043T-EM41B-BC1 4.3" HMI w/128MB/512MB eMMC/USB/CAN/DC+7-24V HMI-043T-EM42N-B01 4.3" HMI w/256MB/SD/USB/RS232/485/DC+7-24V 4.3" HMI w/256MB/512MB eMMC HMI-043T-EM42B-B01 /USB/RS232/485/DC+7-24V 4.3" HMI w/256MB/512MB eMMC HMI-043T-EM42B-B02 /USB/POE/RS232/485/DC+7-24V PACKING LIST...
-
Page 15: Ch. 2 System Installation
System Installation 2.1 CPU Board Outline 2.2 Connector Summary 2.3 Connector Pin Assignments 2.4 Connector I/O Overview HMI-043T-B User’s Manual IUMHMI043T-B Ver.1.8A Jun, 2018... -
Page 16: Cpu Board Outline
2.1 CPU Board Outline HMI-043T-B CPU Board LAN1 HMI-043T-B I/O Board HMI-043T-B User’s Manual IUMHMI043T-B Ver.1.8A Jun, 2018... -
Page 17: Connector Summary
2.2 Connector Summary Description Type of Connections Pin # Expansion slot 1.27mm 32x2-pin female box header 64-pin Expansion slot 1.27mm 32x2-pin female box header 64-pin External USB Connector 6-pin External USB Connector 6-pin COM2 RS232/485 or CAN bus External D-Sub Male Connector 9-pin COM2: RS232/485 setting Pin Header, 2.54mm, 1x2... -
Page 18: Connector Pin Assignments
2.3 Connector Pin Assignments J1A/J1B: Expansion Slot J1A1 J1A2 J1B1 J1B2 Pin# Signal Name Pin# Signal Name Pin# Signal Name Pin# Signal Name RSTDRV VCC_IN VCC_IN GP00 GP01 GP70 GP71 GP02 GP03 GP72 GP73 GP04 GP05 GP74 GP75 GP06 GP07 GP76 GP77 GP90... - Page 19 HMI-043T-B User’s Manual IUMHMI043T-B Ver.1.8A Jun, 2018...
- Page 20 J2/J3: USB J9: Power Connector DC-IN 24V Pin # Signal Name Pin # Signal Name +7~24V USB0- USB0+ RJ45 GGND Signal Signal GGND Name Name J5: COM2 RS-232/485 FTXD+ FTXD- FRXIN+ (Change setting by J6 Jumper) FRXIN- Signal Signal Name Name DCD2/ RXD2/...
-
Page 21: Connector I/O Overview
2.4 Connector I/O Overview SD Slot (Optional) HMI-043T-EM4XX 10/100Mbps Ethernet -BXXX Series Power Switch RS-232/485 or CANbus USB 2.0 PORT CANbus SPK-R SPK-L MIC-IN HMI-043T-EM4XX Series HMI-043T-EM4XX -BXXX Series RS-485 USB 2.0 PORT 10/100Mbps Ethernet RS-485 GPIO RS-232 HMI-043T-B User’s Manual IUMHMI043T-B Ver.1.8A Jun, 2018... -
Page 22: Ch. 3 Driver Installation
Driver Installation 3.1 HMI-043T Development Note HMI-043T-B User’s Manual IUMHMI043T-B Ver.1.8A Jun, 2018... - Page 23 OPERATING SYSTEM SUPPORT The HMI-043T provides the VGA and LAN drivers for DOS, Linux, and Windows CE, Please get the drivers from ICOP technical support URL: tech.icop.com.tw HMI-043T is an open-source embedded platform based on Vortex86EXm SoC, easy-to-use hardware and software integrated.
-
Page 24: Hmi-043T Development Note
3.1 HMI-043T Development Note < WINDOWS DEVELOPMENT GUIDE > Windows Embedded CE 6.0 BSP and development notes, please visit technical website to get more information at http://tech.icop.com.tw/. < LINUX INSTALLATION NOTE> Please visit Linux technical website to get more information at ftp://vxdx:gc301@ftp.dmp.com.tw/Linux_DEMO/Vortex86_Linux_Support... -
Page 25: Warranty
(RMA) number. Returned goods should always be accompanied by a clear problem description. All Trademarks appearing in this manuscript are registered trademark of their respective owners. All Specifications are subject to change without notice. © ICOP Technology Inc. 2018 HMI-043T-B User’s Manual IUMHMI043T-B Ver.1.8A Jun, 2018...
