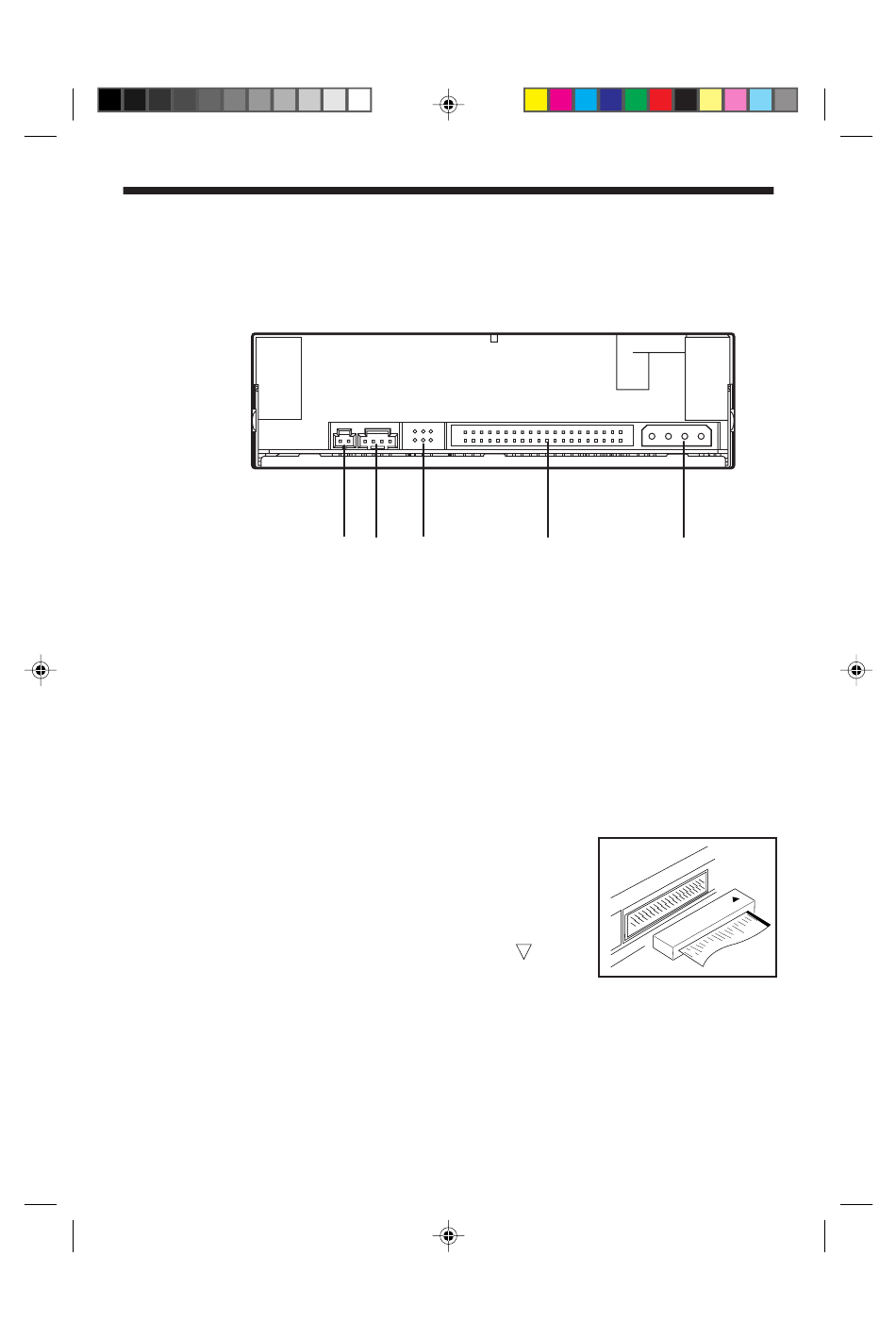

Rear View

7 Jumper Blocks
8 DIGITAL OUT Connector
9 Line Out Connector
10
11
EDV5500A.PM5
8 9
7
These blocks of jumper locations set the configuration for the DVD-
ROM reader. (See page 9, "Jumper Setting" for details.)
This connector is used to connect CD Digital Audio to an audio board.
This connector is used to connect CD-Audio to an audio board.
I/O BUS Connector
This BUS connector is used to control the
DVD-ROM reader and sent data. Use a flat
ribbon cable to connect your computer to
the DVD-ROM reader.
Connect the colored side of the ribbon cable
to the side marked with the arrow ( ).
(See page 12 for details of this connection.)
Power Connector
Use this to provide operating power from the host computer. (See
Page 11 for details of this connection.)
