IBM Security SiteProtector System SP4001 Getting Started
Guide
This document guides you through the process of connecting and performing the initial configuration of
®
your IBM Security SiteProtector

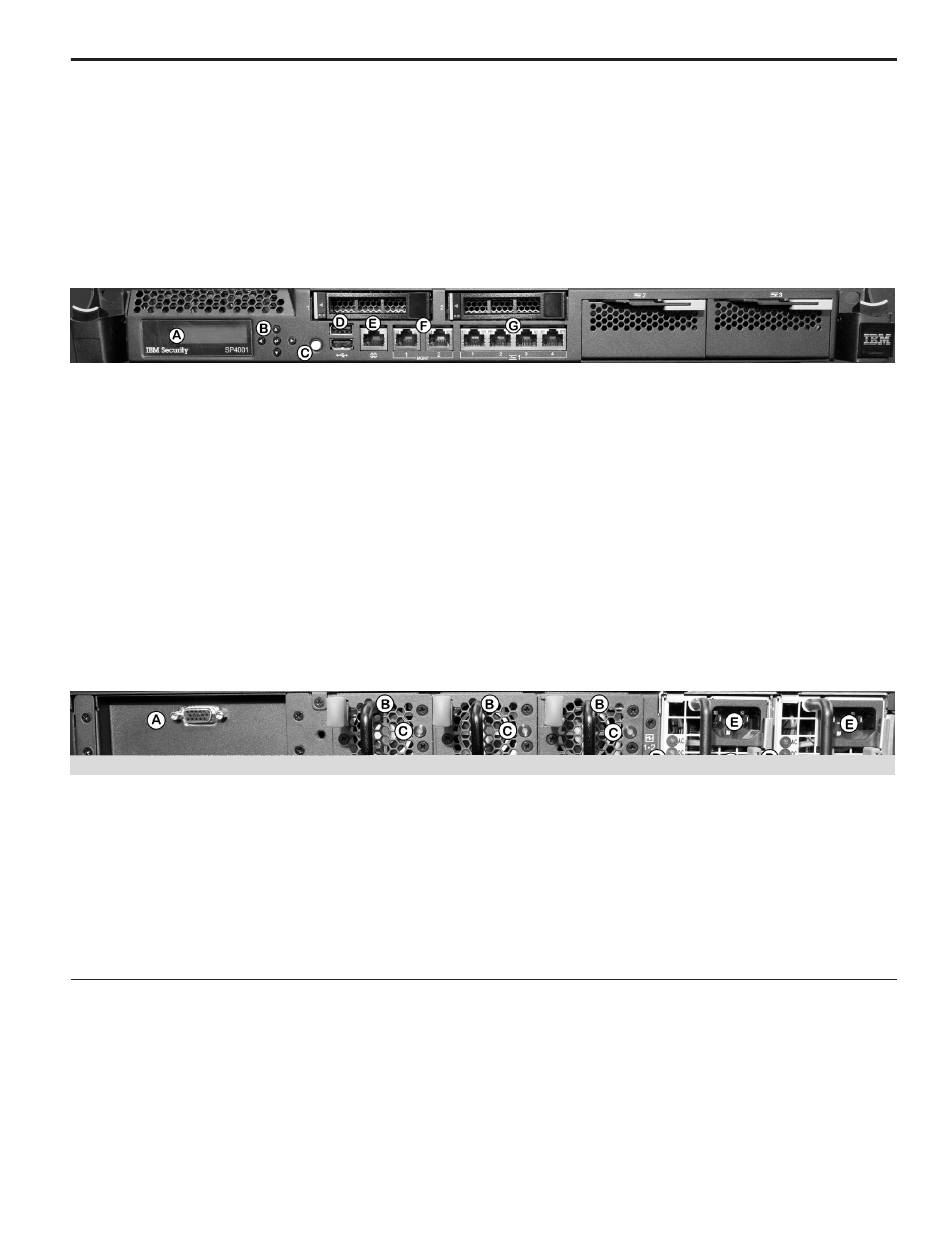

Front panel
Front panel features
v A: LCD panel - use for initial network configuration, restarting or shutting down the appliance,
viewing the serial number of the appliance, and setting the appliance PIN.
v B: Arrow and enter keys - use to select menu choices and interact with the appliance using the LCD
panel.
v C: Power switch - to power the unit on or off.
v D: USB ports (2) - for keyboard, mouse, or external DVD-ROM to retrieve data and install firmware.
v E: Serial console RJ-45 port - use for optional terminal-based setup, diagnostic testing, and recovery.
v F: Management interfaces (2 GbE NICs) - use Management port 1 to manage the SiteProtector
appliance; the Management port handles all network communication. Management port 2 is unused.
v G: Networking interfaces (4 GbE NICs) - unused.
Rear panel
Rear panel features
v A: VGA video port - for external monitor.
v B: Cooling fans (3)
v C: Cooling fan status indicators (3)
v D: Power status indicators (2)
v E: Power connections (2)
v F: Power supplies (2)
