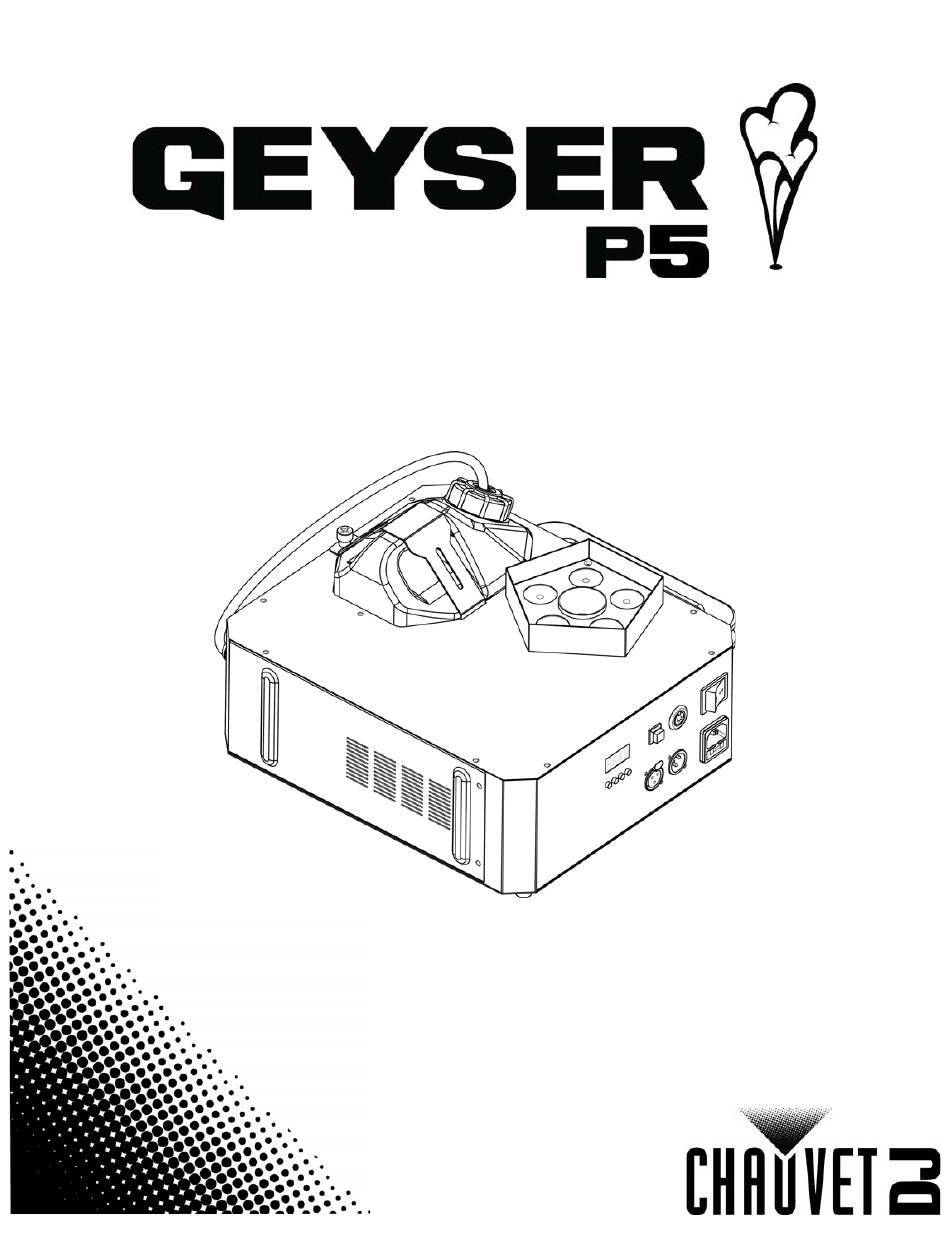

- Page 1 User Manual...
-
Page 2: Table Of Contents
DMX Channel Assignments and Values ............Configuration (Geyser Wireless Remote) ............. Geyser Wireless Remote Control Overview..............Configuration (Manual).................. 5. Maintenance and Storage............Fog Machine Maintenance................Storage......................6. Technical Specifications ............Returns.................... Contact Us ..................Geyser P5 User Manual Rev. 1... -
Page 3: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com. -
Page 4: Safety Notes
• Do not use for space heating purposes. • Use only CHAUVET® DJ water-based fog fluid. • Drain the tank before transporting the product. • Always make sure that the voltage of the outlet to which you are connecting the product is within the range stated in the decal or rear panel of the product. -
Page 5: Introduction
Rubber Feet for Surface Mounting (x4) Manual Button Fuse Power Power Safety In/Out Holder Switch Loop Product Dimensions 14.7 in 375 mm 13.5 in 342 mm 7.5 in 190 mm Geyser P5 User Manual Rev. 1 Page 3 of 11... -
Page 6: Setup
3. Setup AC Power The Geyser P5 has a fixed voltage power supply and it can work with an input voltage of either 120 VAC, 60 Hz or 230 VAC, 50 Hz, depending on the specific model. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Operation
Blue Co 4 Amber Co 5 Ultraviolet CH 1–4 Co 6 Hot pink Co 7 Pink Co 8 Yellow Co 9 Magenta Co10 Cyan Co11 White rand Random color output Geyser P5 User Manual Rev. 1 Page 5 of 11... -
Page 8: Configuration (Dmx)
Operation Configuration (DMX) The Geyser P5 works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 9: Configuration (Geyser Wireless Remote)
Operation Configuration (Geyser Wireless Remote) After connecting power, allow 5 to 6 minutes for the Geyser P5 to heat up before triggering fog output. The included Geyser wireless remote control and receiver allows up to 4 preset colors or programs to be triggered from up to 100 ft (30 m) away. -
Page 10: Maintenance And Storage
Fog Machine Maintenance Do not allow the fog machine to become clogged. After every 40 hours of continuous operation, use CHAUVET Fog Cleaner Quart (FCQ) through the system to prevent the accumulation of particulate matter in the heating element. The recommended cleaning procedure is as follows. -
Page 11: Technical Specifications
Maximum External Temperature Cooling System 104 °F (40 °C) Fan-assisted convection Ordering Product Name Item Code UPC Number Geyser P5 (120 V) 05071324 781462216726 Geyser P5 (230 V) 05071325 781462216733 Geyser P5 User Manual Rev. 1 Page 9 of 11... -
Page 12: Returns
Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box. -
Page 13: Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details. Geyser P5 User Manual Rev. 1 Page 11 of 11...
