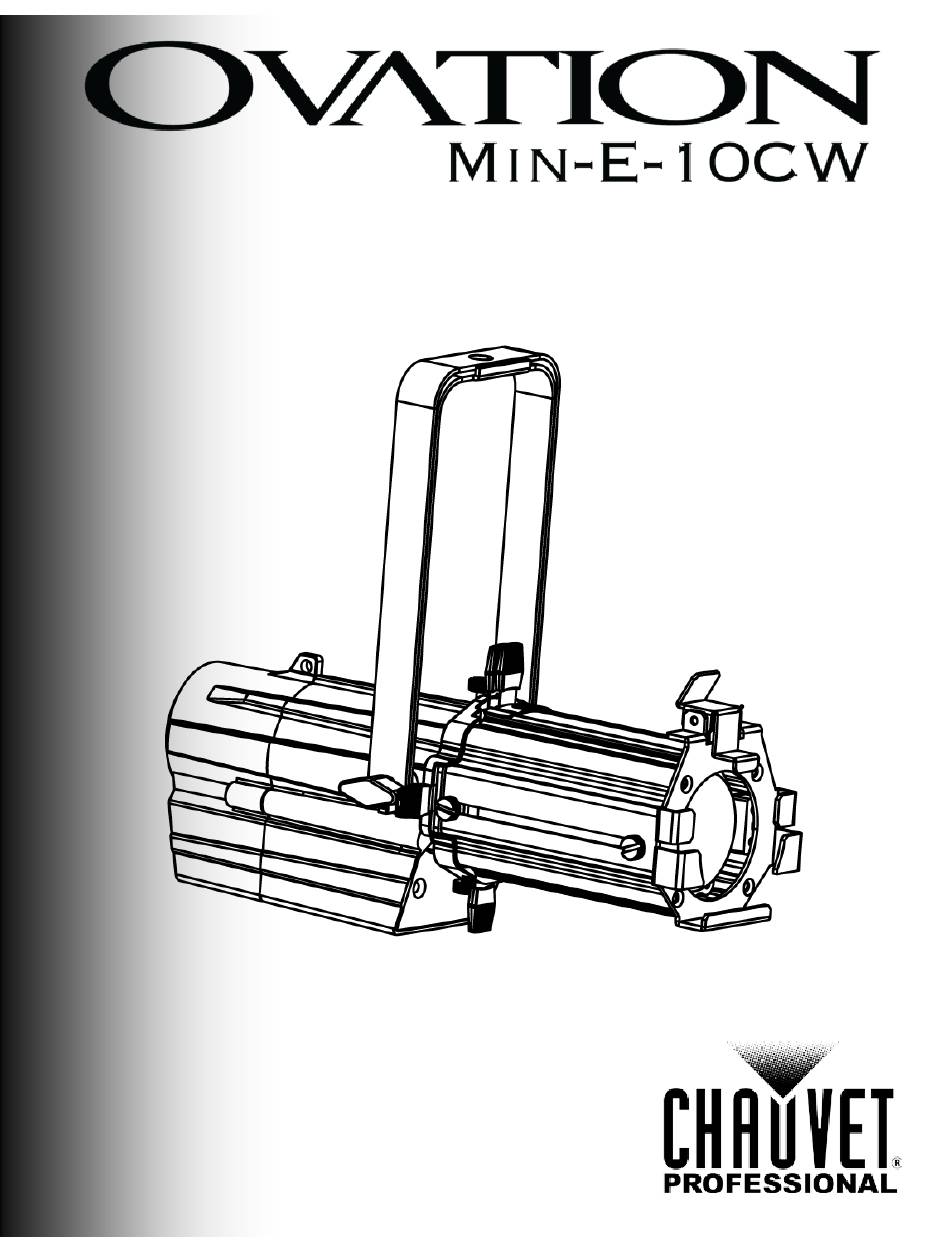

- Page 1 User Manual...
- Page 2 Copyright Notice Chauvet owns the content of this User Manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2016 Chauvet. All rights reserved.
-
Page 3: Table Of Contents
Manual Beam Focus Control ................................ 7 Gel Frame Holder ..................................7 5. Technical Information ..........................8 Product Maintenance ..............................8 Cleaning the Reflector Housing Lens ............................8 6. Technical Specifications ........................... 9 Returns ..................................10 Contact Us ..............................10 OVATION Min-E-10CW User Manual Rev. 2... -
Page 4: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 5: Safety Notes
This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs. -
Page 6: Introduction
Introduction 2. I NTRODUCTION The OVATION Min-E-10CW is a compact cool white LED ellipsoidal product. The OVATION Min- Description E-10CW features standard beam shaping shutters, a gobo/effect slot, lens barrels that are interchangeable, and the capability to run on standard theater dimmers as well as 0–10 VDC dimmers. -
Page 7: Dimensions
Introduction Dimensions 5.12 in 130 mm 11.42 in 290 mm 9.76 in 248 mm 8.9 in 225 mm OVATION Min-E-10CW User Manual Rev. 2... -
Page 8: Setup
Technical Specifications chart in this manual. The OVATION Min-E-10CW has a second power input for a 0–10 V dimmer. The input is a 0–10 VDC push-button terminal connector, with a button for each wire. -
Page 9: Mounting
When hanging this product, always secure to a fastening device using a safety cable. For our CHAUVET® Professional line of safety cables, go to http://trusst.com/products/. The OVATION Min-E-10CW comes with a yoke to which you can either attach a mounting Procedure clamp for hanging. -
Page 10: Operation
Framing Shutters Use the framing shutters to tighten and shape the beam of the OVATION Min-E-10CW, or open them completely to allow the full beam to pass. The gobo holder slot has a sliding cover and is located in front of the top framing shutter. The... -
Page 11: Technical Information
2. Use a Phillips screwdriver to remove the lens from its fixed cover, if necessary. 3. Clean the lens as described in Product Maintenance. Always close the framing shutters when transporting or storing the product. OVATION Min-E-10CW User Manual Rev. 2... -
Page 12: Technical Specifications
134 lux Beam angle 16° 25° Field angle 18° 34° Thermal Max. External Temperature Cooling System 113 °F (45 °C) Convection Ordering Product Name Item Code UPC Number OVATION Min-E-10CW 01121125 781462214739 (120 V) OVATION Min-E-10CW 01121161 781462215095 (230 V) -
Page 13: Returns
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number. DO NOT write the RMA number directly on the box. Instead, write it on a properly affixed label.
