Summary of Contents for Chauvet COLORdash Par-H7IP
- Page 1 User Manual...
- Page 2 Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetprofessional.com...
-
Page 3: Table Of Contents
ABLE OF ONTENTS TABLE OF CONTENTS 1. Be fo re Yo u Be g in ............... What Is Included ................... 3 Claims ......................3 Manual Conventions ..................3 Symbols ......................3 Safety Notes....................4 Personal Safety......................Mounting and Rigging ....................Power and Wiring...................... - Page 4 ABLE OF ONTENTS Fixture Hours/Software Version ..................Factory Reset......................... 5. Te c hnic al Info rmatio n ..............Product Maintenance ..................19 6. Te c hnic al S pe c ific atio ns ............7. Re turns ..................8. Co ntac t Us .................. TOC 2 of 2 COLORdash Par-H7 IP User Manual Rev.
-
Page 5: Be Fo Re Yo U Be G In
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 6: Safety Notes
• In the event of a serious operation problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Expected LED Lifespan LEDs gradually decline in brightness over time, primarily because of heat. LEDs that are arranged in clusters experience higher operating temperatures than single LEDs. -
Page 7: Introduction

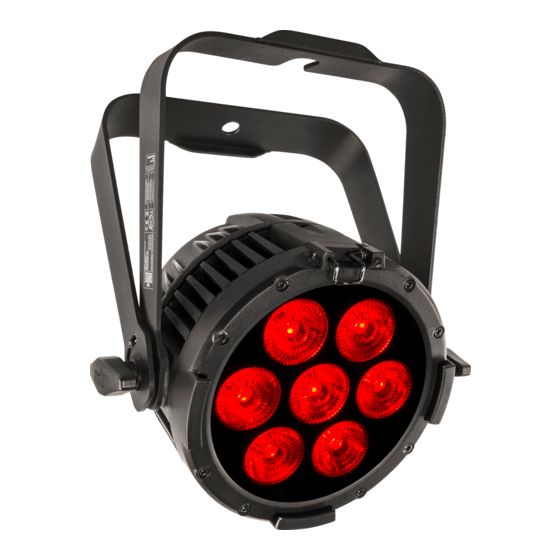

NTRODUCTION 2. I NTRODUCTION Description The COLORdash Par-H7 IP delivers an intense and beautiful RGBAW + UV LED wash in any weather condition. An OLED full text display is easy to navigate and direct IP rated connections for power and DMX make setup a breeze. -
Page 8: Product Overview
NTRODUCTION Product Overview Power In Control Panel Power Out Safety Loop DMX In DMX Out Adjustment Knob Double-Bracketed 13 mm Mounting Yoke Point Page 6 of 22 COLORdash Par-H7 IP User Manual Rev. 1... -
Page 9: Product Dimensions
NTRODUCTION Product Dimensions 6.18 in 157 mm 1.85 in 47 mm 6.93 in 176 mm 9.57 in 243 mm 7.87 in 200 mm 11.26 in 286 mm 5.55 in 141 mm COLORdash Par-H7 IP User Manual Rev. 1 Page 7 of 22... -
Page 10: Setup
The product supports power linking. You can power link up to 26 products at 120 V; up to 46 at 208 V; or up to 50 at 230 V. This product comes with a power input cord. Power linking cables are available from Chauvet for purchase. -
Page 11: Dmx Linking
If you are not familiar with, or need more information about, DMX standards, or the DMX cables needed to link this product to a DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com. To preserve the IP65 rating and the warranty of this product, IP65 data cables must be used. -
Page 12: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products/. Orientation Always mount this product in a safe position, making sure there is adequate room for ventilation, configuration, and maintenance. -
Page 13: Operation
PERATION 4. O PERATION Control Panel Operation Button Function <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the currently selected value in to the <ENTER> current function Navigates upward through the menu list or increases the numeric value when in a <UP>... -
Page 14: Menu Map
PERATION Menu Map Main Level Programming Levels Description Selects DMX address (highest 001–512 Address channelrestricted to personality chosen) 6 CH 6-channel: RGBAWP control 8-channel: RGBAWP control, dimmer, 8 CH and strobe 13-channel: RGBWAP control, dimmer, Channel strobe, color macro/white balance, white 13CH temperature, auto programs, auto speed, dimmer speed... - Page 15 PERATION Main Level Programming Levels Description RGBA Red/Green/Blue/Amber RGBW Red/Green/Blue/White RGBP Red/Green/Blue/UV RGAW Red/Green/Amber/White RGAP Red/Green/Amber/UV RGWP Red/Green/White/UV RBAW Red/Blue/Amber/White RBAP Red/Blue/Amber/UV RBWP Red/Blue/White/UV RAWP Red/Amber/White/UV GBAW Green/Blue/Amber/White Fixed Color GBAP Green/Blue/Amber/UV GBWP Green/Blue/White/UV GAWP Green/Amber/White/UV BAWP Blue/Amber/White/UV RGBAW Red/Green/Blue/Amber/White RGBAP Red/Green/Blue/Amber/UV RGBWP...
-
Page 16: Configuration (Dmx)
PERATION Main Level Programming Levels Description 600Hz 1200Hz 2000Hz Selects the PWM output frequency Frequency 4000Hz 6000Hz 25kHz Display backlight always on Turns off display backlight after 10 sec of inactivity Back Light Turns off display backlight after 20 sec of inactivity Turns off display backlight after 30 sec of inactivity... -
Page 17: Dmx Values
PERATION DMX Values 13Ch Channel Function Value Percent/Setting Dimmer 0-100% 0-100% Green 0-100% Blue 0-100% Amber 0-100% White 0-100% Purple (UV) 0-100% No function Strobe Slow to fast No function R:100% G: 0-100% B: 0... -
Page 18: Configuration (Standalone)
PERATION 8 Ch Channel Function Value Percent/Setting Dimmer 0-100% 0-100% Green 0-100% Blue 0-100% Amber 0-100% White 0-100% Purple (UV) 0-100% No function Strobe Slow to fast 6 Ch Channel Function Value Percent/Setting 0-100%... -
Page 19: White Balance
PERATION White Balance This setting allows for selection of the white balance shown by the COLORdash Par-H7 IP when Static > Manual Color Mixing > Red, Green, Blue, Amber, White, and UV. or the DMX controller’s Red, Green, Blue, Amber, White, and UV faders are set to 255. Go to the White Balance main level. -
Page 20: Back Light
PERATION Back Light This setting allows for selection of the amount of time the backlight on the COLORdash Par-H7 IP’s display stays on after the last button is pressed on the control panel. Go to the Back Light main level. Select On (remains on), 10S (10 seconds), 20S (20 seconds), or 30S (seconds). -
Page 21: Technical Information
ECHNICAL 5. T ECHNICAL NFORMATION Product Maintenance To maintain optimum performance and minimize wear, clean this product frequently. Usage and environment are contributing factors in determining the cleaning frequency. Clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. -
Page 22: Technical Specifications
ECHNICAL PECIFICATIONS 6. T ECHNICAL PECIFICATIONS Dimensions and Weight Length Width Height Weight 11.02 in (280 mm) 9.44 in (240 mm) 6.06 in (154 mm) 7.8 lb (3.6 kg) Note: Dimensions in inches rounded to the nearest hundredth. Power Power Supply Type Range Voltage Selection Switching (internal) -
Page 23: Returns
ETURNS ETURNS Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags. Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. -
Page 24: Contact Us
Fax: +44 (0) 1773 511110 MEXICO General Information Technical Support Address: Av. de las Partidas 34 - 3B, Zona Email: servicio@chauvet.com.mx Industrial Lerma Website Lerma, Edo. de México, CP 52000 Voice: +52 (728) 285-5000 www.chauvet.com.mx Visit the applicable website above to verify our contact information and instructions to request support.
