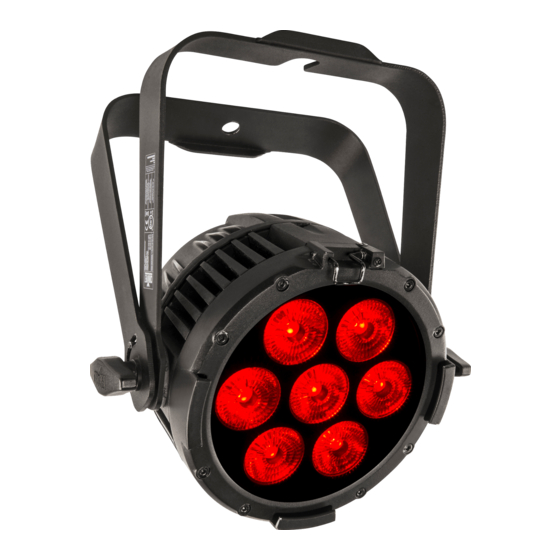

QUICK REFERENCE GUIDE About This Guide The COLORdash Par-H7 IP Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details. Disclaimer The information and specifications contained in this QRG are subject to change without notice. Safety Notes •...
Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/ Product Mounting Diagram...
Page 4
QUICK REFERENCE GUIDE Menu Map Main Level Programming Levels Description Selects DMX address (highest channel DMX Address 001–512 restricted to personality chosen) 6 CH 6-channel: RGBAWP control 8-channel: RGBAWP control, dimmer, 8 CH and strobe DMX Channel 13-channel: RGBWAP control, dimmer, strobe, color macro/white balance, 13CH white temperature, auto programs,...
QUICK REFERENCE GUIDE Main Level Programming Levels Description 600Hz 1200Hz 2000Hz LED Frequency Selects the PWM output frequency 4000Hz 6000Hz 25kHz Display backlight always on Turns off display backlight after 10 sec of inactivity Back Light Turns off display backlight after 20 sec of inactivity Turns off display backlight after 30 sec of inactivity...
Page 7
QUICK REFERENCE GUIDE 13Ch Channel Function Value Percent/Setting No function Warm White 1 Warm White 2 Warm White 3 Neutral White 1 Color Neutral White 2 Temperature Neutral White 3 Daylight 1 Daylight 2 ...
GUÍA DE REFERENCIA RÁPIDA Acerca de Esta Guía La Guía de Referencia Rápida (GRR) del COLORdash Par-H7 IP contiene información básica sobre el producto, como montaje, opciones de menú y valores DMX. Descargue el Manual de Usuario de www.chauvetprofessional.com fpara información más detallada.
Antes de montar este producto, lea las Notas de Seguridad. Asegúrese de que las abrazaderas de montaje son capaces de soportar el peso del producto. Para nuestra ínea Chauvet de abrazaderas de montaje, visite http://trusst.com/ productcategory/truss-clamps/ Diagrama de Montaje del Producto...
GUÍA DE REFERENCIA RÁPIDA Código de acceso Después de que se le solicite, introduzca el siguiente código de acceso pulsando: <UP>, <DOWN>, <UP>, <DOWN>, <ENTER> Este código no se puede cambiar y se debe usar cuando se le solicite. Mapa de Menú Nivel Principal Niveles de Programación Descripción...
Page 11
GUÍA DE REFERENCIA RÁPIDA Nivel Principal Niveles de Programación Descripción Azul/Ámbar/Blanco Azul/Ámbar/UV Azul/Blanco/UV Ámbar/Blanco/UV RGBA Rojo/Verde/Azul/Ámbar RGBW Rojo/Verde/Azul/Blanco RGBP Rojo/Verde/Azul/UV RGAW Rojo/Verde/Ámbar/Blanco RGAP Rojo/Verde/Ámbar/UV RGWP Rojo/Verde/Blanco/UV RBAW Rojo/Azul/Ámbar/Blanco RBAP Rojo/Azul/Ámbar/UV RBWP Rojo/Azul/Blanco/UV Fixed Color RAWP Rojo/Ámbar/Blanco/UV GBAW Verde/Azul/Ámbar/Blanco GBAP Verde/Azul/Ámbar/UV GBWP Verde/Azul/Blanco/UV GAWP...
Page 12
GUÍA DE REFERENCIA RÁPIDA Nivel Principal Niveles de Programación Descripción Utiliza la configuración de blanco predeterminada de fábrica Establece el valor máximo de LED Rojo Establece el valor máximo de LED Green Verde White Balance Establece el valor máximo de LED Blue Azul Manual...
MANUEL DE RÉFÉRENCE À Propos de ce Manuel Le Manuel de Référence du COLORdash Par-H7 IP (MR) reprend des informations de base sur cet appareil notamment en matière de connexions, montage, options de menu et valeurs DMX. Télécharger le Manuel d'Utilisation sur www.chauvetprofessional.com pour de plus amples informations.
Avant de monter cet appareil, lisez et assimilez les Consignes de Sécurité. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/ Schéma de Montage de l'Appareil...
Page 17
MANUEL DE RÉFÉRENCE Tableu de Menu Niveau Niveaux de Programmation Description Principal Sélectionne l'adresse DMX (le canal le DMX Address 001–512 plus haut limité à la personnalité choisie) 6 CH 6 canaux: commande RVBbA+UV 8 canaux: gradateur, RVBbA+UV, 8 CH stroboscope DMX Channel 13 canaux: gradateur, RVBbA+UV,...
Page 18
MANUEL DE RÉFÉRENCE Niveau Niveaux de Programmation Description Principal RGAW Rouge/Vert/Ambre/Blanc RGAP Rouge/Vert/Ambre/UV RGWP Rouge/Vert/Blanc/UV RBAW Rouge/Bleu/Ambre/Blanc RBAP Rouge/Bleu/Ambre/UV RBWP Rouge/Bleu/Blanc/UV RAWP Rouge/Ambre/Blanc/UV GBAW Vert/Bleu/Ambre/Blanc GBAP Vert/Bleu/Ambre/UV Fixed Color GBWP Vert/Bleu/Blanc/UV GAWP Vert/Ambre/Blanc/UV BAWP Bleu/Ambre/Blanc/UV RGBAW Rouge/Vert/Bleu/Ambre/Blanc RGBAP Rouge/Vert/Bleu/Ambre/UV RGBWP Rouge/Vert/Bleu/Blanc/UV RGAWP Rouge/Vert/Ambre/Blanc/UV...
MANUEL DE RÉFÉRENCE Niveau Niveaux de Programmation Description Principal 600Hz 1200Hz 2000Hz Permet de sélectionner la fréquence LED Frequency de sortie MLI 4000Hz 6000Hz 25kHz Éclairage de l'affichage toujours activé. Éteint l'éclairage de l'affichage après 10 secondes d'inactivité Back Light Éteint l'éclairage de l'affichage après 20 secondes d'inactivité...
Page 20
MANUEL DE RÉFÉRENCE 13Ch Cana Fonction Valeur Pourcentage/Configuration Pas de fonction Blanc chaud 1 Blanc chaud 2 Blanc chaud 3 Blanc neutre 1 Color Blanc neutre 2 Temperature Blanc neutre 3 Lumière du jour 1 ...
BEKNOPTE HANDLEIDING Over deze handleiding De COLORdash Par-H7 IP Beknopte Handleiding (BH) bevat basisinformatie over het product, zoals aansluiting, montage, menu-opties en DMX-waarden. Download de gebruikershandleiding op www.chauvetprofessional.com voor meer informatie. Disclaimer De informatie en specificaties in deze BH kunnen zonder voorafgaande kennisgeving worden gewijzigd. Veiligheids instructies •...
Montage Lees alvorens dit product te monteren alle Veiligheids instructies. Controleer of de montageklem het gewicht van het product kan dragen. Ga voor onze Chauvet-serie montageklemmen naar http://trusst.com/productcategory/truss-clamps/ Montagediagram van het product Montageklem Veiligheidskabel Montage boven...
Page 23
BEKNOPTE HANDLEIDING Toegangscode Vul na dat gevraagd te worden de volgende toegangscode in door te drukken op: <UP>, <DOWN>, <UP>, <DOWN>, <ENTER> Dit toegangscode kan niet gewijzigd worden en moet indien gevraagd ingevuld worden. Menumap Hoofdniveau Programmeerniveaus Beschrijving Selecteer het DMX-adres (hoogste DMX Address 001–512 kanaal beperkt tot de gekozen...
Page 25
BEKNOPTE HANDLEIDING Hoofdniveau Programmeerniveaus Beschrijving Gebruikt standaard witte instelling Stelt de maximum waarde van de rode LED in Stelt de maximum waarde van de Green groene LED in Stelt de maximum waarde van de Blue White Balance blauwe LED in Manual 125-255 Stelt de maximum waarde van de...
MEXICO General Information Technical Support Address: Av. de las Partidas 34 - 3B Email: servicio@chauvet.com.mx Zona Industrial Lerma Website Lerma, Edo. de México, CP 52000 www.chauvet.com.mx Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record..
