When programmed as Enabled: The windows will be closed automatically when
pressing button 1 or 1+2 to arm the system. With the feature enabled, the CH3
output will be unable to be operated by remote control.
When programmed as Disabled: The channel 3 output will be activated as long as pressing and
holding buttons 1+3 for 1 second.
C) Remote Transmitter Code Learning
The included remotes control are programmed to the system before they leave the factory.
Follow the below procedure to program a new remote control:
a> Follow the below procedure to program a new remote control.
With the alarm disarmed, and the doors CLOSED, switch the ignition ON/OFF 3 times (within 1
second of each other) and then back to the ON position.
The siren will sound for 2 seconds to indicate the alarm is in code learning mode.
b> To program the new remote control press button (1) within 10 seconds.
The siren will chirp and the hazard lights flash twice to confirm that the code has
been learned. Follow the same procedure for second, third and fourth remote transmitter.
c> If the ignition is turned OFF or button (1) is not pressed within 10 seconds, the system will
quit the code-learning mode. If this happens you must start again from the first step.
d> Up to 4 remote control transmitters can be programmed to the system.
D) Installation Notes
D-1) Ignition 2 Connection
If a vehicle has ignition 2 (ACC 2), the yellow/black wire (C4-2) must be connected to Ignition 2
(ACC 2) via a 30A relay as shown below.

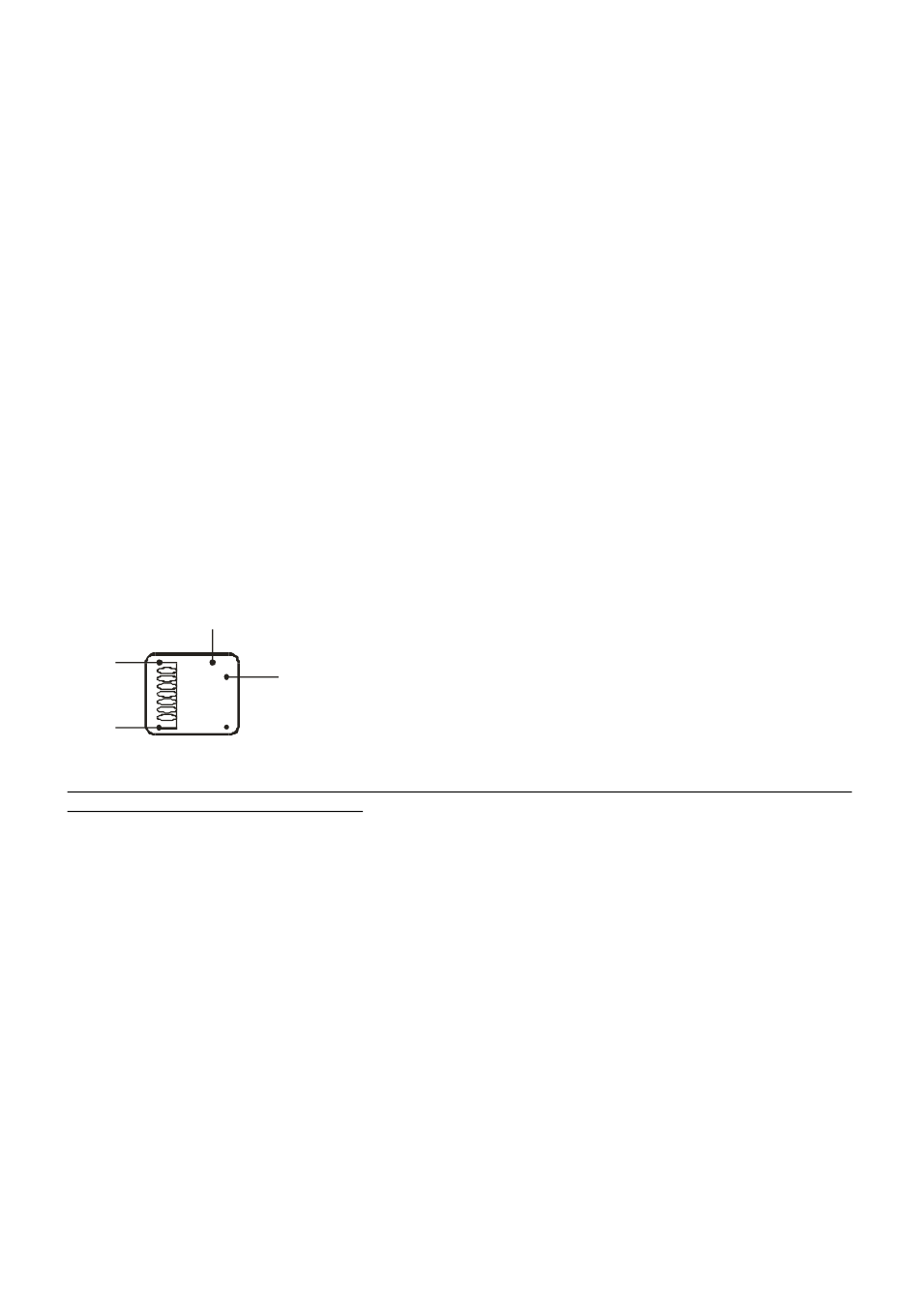

+12V
86
+12V
87
30
C4-2 (-)
87A
85
This wire must be connected to Ignition 2 (ACC 2) in the vehicle. Or it will affect
Important:
performance of remote engine start.
D-2) Installation without Remote Starter Features
If the remote starter and turbo timer features are not required, the following wires do not need
to be connected:
C1-2Yellow/Green To Ignition Start
C1-3Blue/WhiteTo Ignition Acc
C3-5Black/RedTo handbrake light
C4-1Green To RPM
C4-2Yellow/BlackTo ignition 2
C4-3Red/BlackTo alternator
Ignition 2
