Sinclair amc-15a User Manual

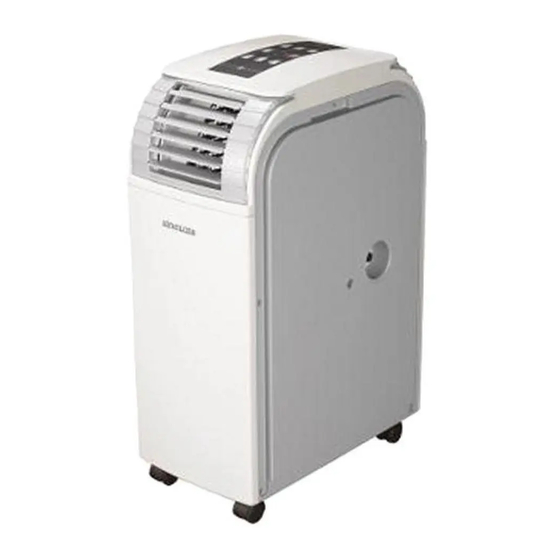

Mobile air conditioner
Hide thumbs Also See for amc-15a:
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S MANUAL
MOBILE SERIES
AMC-15A

Advertisement

Table of Contents
loading

Related Manuals for Sinclair amc-15a

Summary of Contents for Sinclair amc-15a

  • Page 1 USER'S MANUAL MOBILE SERIES AMC-15A...
  • Page 2 MOBILE AIR CONDITIONER AMC-15A USER’S MANUAL...

  • Page 3: Introduction / Technical Data

    Thank you for showing confidence in our product. We hope you enjoy a pleasant room climate with your air- conditioner. MODEL AMC-15A VOLT 220V 50Hz AC POWER CONSUMPTION (W)

  • Page 4: Important Instructions

    BEFORE INITIATION 1. To avoid damage, place the unit in an upright position for at least 24 hours before initiation. 2. Release the holder air hose in the unit and take out the extract air hose. 3. Fasten the air hose before initiating the unit. 4.

  • Page 5: Name Of The Components

    NAME OF THE COMPONENTS Operating panel Control lamp Air outlet grid Air hose connection piece Air hose Upper condensation water outlet with rubber plug 7. Cool inlet 8. Cool Air filter 9. Hot inlet 10. Hot air filter 11. Drain pipe IMPORTANT INSTRUCTIONS 1.

  • Page 6: Operating Panel

    OPERATING PANEL DESCRIPTION OF FUNCTIONS 1. [POWER] Press this switch to switch on or off 2. [FUNC] Press this switch to select between the functions “Cooling”, „Heating“ or „Dehumidity“ 3. [TEMP+] Press this switch in the cooling function in order to set the required room temperature by 1°C respectively up to a maximum temperature of 30°C.
  • Page 7 7. [TIMER] Programmable time switch with start and residual time Starting time: This function is used to switch on the unit automatically when the time entered has expired. Proceed as follows: i) Press [TIMER] switch in Stand-by (this unit is connected but not in operation), to enter the required number of hours after which the unit is to start.
  • Page 8 COOLING It is recommended to start the unit early on hot days, thus avoiding heating up of the room. This unit has a self-evaporation function for condensation water, so that it is normally not necessary to empty the water tank in cooling mode. The drainage hose need not be connected. Please make sure that the outlet is closed with the rubber cap during operation.
  • Page 9 Set the function to “COOLING”. The settable temperature range is between 17 and 30 degrees. This can be set using the temperature control. The air with high oxygen content cooled by the unit is fed into the room via the air hose. This can be executed e.g.
  • Page 10 HEATING IN OUTDOOR OPERATION The unit is outside the room tio be heated. Outdoor operation is ideal for the transition period in which outside temperatures do no fall below 7 degrees. (If the outside temperature should however fall below 7 degrees Connect the air hose and the air outlet grid to the unit as continuously, we recommend indoor operation).

  • Page 11: Error Messages

    CLEANING AND MAINTENANCE MAINTENANCE PLEASE REMOVE THE POWER PLUG FROM THE SOCKET BEFORE CLEANING THE UNIT. COARSE FILTER The air filters on the side of the unit can be simply removed by pulling the frame sidewards. When cleaning, use a vacuum cleaner with brush or wash the filters under running, warm water and dry them with a soft cloth! Please clean the coarse filters before initial use, and regularly when in use.
  • Page 12 SPARE PARTS AND ACCESSORIES SUPPLY (FAST CONVENIENT SUPPLY) You can obtain spare parts and accessories for your unit from your local dealer. www.sinclair-eu.com NOTE CONCERNING PROTECTION OF ENVIRONMENT This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices.
