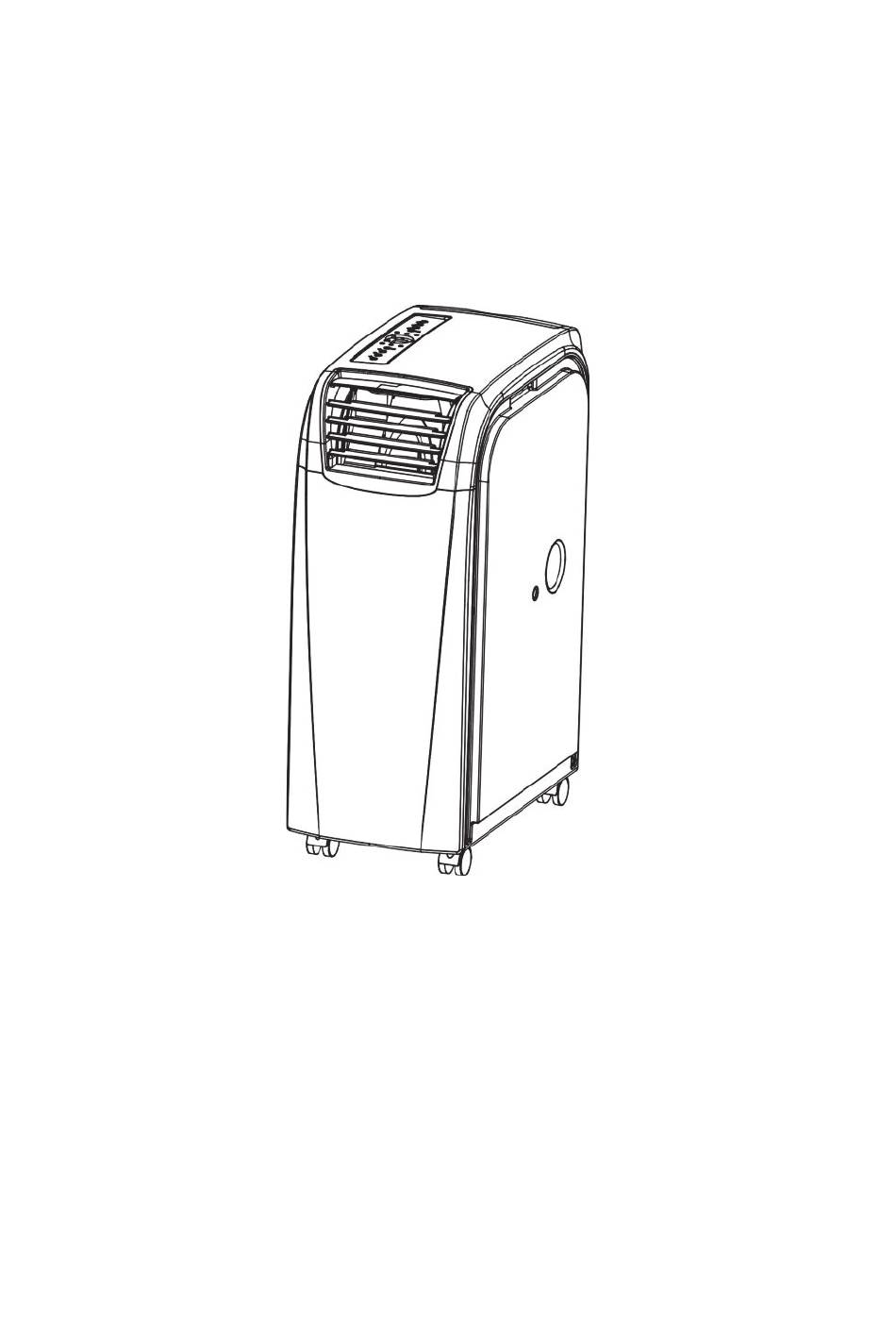

- Page 1 LOCAL AIR CONDITIONER AMC-11P, AMC-14P EN / User manual Ver.1 18-03-2019 Original instructions...
-
Page 2: Very Important
3. Do not pierce or burn. 4. Be aware that refrigerants may not contain an odour. 5. Appliance AMC-11P shall be installed, operated and stored in a room with a floor area larger than 12m and AMC-14P larger than 13m 6. - Page 3 9. " PLEASE MAKE SURE THE PRODUCT VENTILATES ALL THE TIME "! Please make sure the inlet and outlet ventilation is not blocked at all times. 10. Operate this unit on a horizontal surface to avoid water leakage. 11. Do not operate this unit in an explosive or corrosive atmosphere.
- Page 4 dehumidifying. 18. When turning on the unit, the fan will operate but the compressor will start up after the cooling alarm flashes for three minutes ● In heating function, the heating alarm will flash for 3.5 minutes before the compressor and fan start up.
- Page 5 national wiring regulations. 24. Do not operate your air conditioner in a wet room such as a bathroom or laundry room. (Do not suitable for the model with window kit) Transportation, marking and storage for units 1. Transport of equipment containing flammable refrigerants Compliance with the transport regulations 2.
- Page 6 others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.
- Page 7 CONGRATULATIONS ON YOUR SELECTION OF A QUALITY PORTABLE AIR CONDITIONER PORTABLE AIR CONDITIONER This Air Conditioner has been designed and manufactured to the highest standards of modern engineering. Our product not only provides you a remote control to help user operate all the functions easily and conveniently but also has below benefits: - Moves easily from room to room on easy glide castors...
-
Page 8: Unpacking Instructions
UNPACKING INSTRUCTIONS Place the unit in the correct upright position before unpacking. Cut the two packing straps. Slide the carton in an upwards motion and it will release from the base. Grip the carry handles located on either sides of the unit and carefully lift until it slides out of the foam base. - Page 9 NAME OF THE PARTS 1. Control panel 2. Remote control receiver 3. Adjustable air vent 4. Joint tube 5. Exhaust hose 6. Upside drain hole 7. Cool air inlet 8. Cool air filter 9. Hot air inlet 10. Hot air filter 11.
-
Page 10: Control Panel & Description Of Function
CONTROL PANEL & DESCRIPTION OF FUNCTION POWER KEY Press to turn unit "ON" or "OFF". FUNCTION Press this key to select cooling, heating, or dehumidifying. 3. TEMPERATURE REGULATION KEY (UP) During cooling function This key raises the preset temperature by 1 each time it is pressed and the maximum limit is 30 . - Page 11 6. SPEED Press to select either LOW, MEDIUM, HIGH or AUTO fan speed. If "AUTO" is selected,”HIGH” or "MEDIUM" or “LOW" will be selected automatically according to the difference between setting temperature and ambient temperature. Note: In heating function and dehumidifying function, this key is invalid because the unit is defined to be high speed in heating mode and low speed in dehumidifying mode.
- Page 12 2. While in heating mode, press the SLEEP key to set the temperature. It decreases after an hour and at most decreases 2 after 2 hours. 3. Press the SLEEP key again can cancel the setting. ALARM When the water tank is full,"E4" will be displayed on the display panel. To resume operation, please remove the rubber cap of the drain hose to drain out the water firstly.
-
Page 13: Remote Control Function
REMOTE CONTROL FUNCTION 1. POWER On/Off switch 2. FUNC Function “MODE” selector 3. TIMER Hourly programming 4. AUTO Automatic fan speed 5. HI High fan speed 6. MID Medium fan speed 7. LOW Low fan speed 8. SLEEP Night operation selector 9. -
Page 14: Maintenance
NOTICE This unit can evaporate the condensation and distribute through the exhaust hose automatically. 1. When the unit is in the cooling function, it does not need the drain pipe installed. Please make sure that the rubber cap is locked on drain hole, when the unit is running. - Page 15 CONDENSER/EVAPORATOR Use a brush attachment with a vacuum cleaner. Casing Wipe with a damp cloth and polish with a soft cloth. To remove the air filter, please follows the arrow direction and pull the filter lightly, and then take out the filter for cleaning.
-
Page 16: Power Supply
POWER SUPPLY (1) Confirm the correct power. (2) Insert the plug into the outlet firmly In order to prevent any dangerous leakage. (3) Don’t pull power wire by force because it will cause damage to power wire. PLACE FOR USE Because the machine distributes hot air, please don’t place or operate in a narrow place. -
Page 17: Window Kit Install
EXHAUST HOSE INSTALL 1. Circumrotate the exhaust hose according to the direction as the arrowhead indicates and then the exhaust hose can be took out from the unit. 2. Circumrotate the exhaust hose according to the direction as the arrowhead indicates and then make it connect with the unit. - Page 18 How to enjoy heating function? When operating heating function Disassemble the outlet and the exhaust hose as arrow direction in Fig.01 and then exchange the two subassemblies to install. The finished illustration is as Fig.03.
-
Page 19: Troubleshooting
TROUBLESHOOTING 1. Information on servicing 1) Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system. - Page 20 around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs shall be displayed. 6) Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work.
- Page 21 8) Checks to electrical devices Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used.
- Page 22 parts shall be in accordance with the manufacturer’s specifications. NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them. 3.
- Page 23 equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.
- Page 24 system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.
- Page 25 • Mechanical handling equipment is available, if required, for handling refrigerant cylinders; • All personal protective equipment is available and being used correctly; • The recovery process is supervised at all times by a competent person; • Recovery equipment and cylinders conform to the appropriate standards. d) Pump down refrigerant system, if possible.
- Page 26 are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.
- Page 27 TROUBLE SHOOTING Problem Cause Trouble shooting Electrical short on both Contact an electrician for repair temperature sensor and PCB Electrical short of temperature Contact an electrician for repair sensor copper tube and PCB wiring Indicates water tank full or User needs to pull out the rubber stopper possibly the incorrect wiring of which is located at the bottom of the unit, plug...
-
Page 28: Energy Label
ENERGY LABEL... -
Page 29: Specification
SPECIFICATION Model AMC-11P AMC-14P Power Source 220–240 V / 50 Hz Rated Power (EN60335) Cooling 1150 W 1535 W Heating 965 W 1290 W Cooling Capacity 3000 W 4000 W Heating Capacity 3000 W 4000 W Moisture Removed 50 liters/day... - Page 30 This marking indicates that this product should not disposed with other household wastes throughout the EU. To prevent possible hazards to the environment or human health from uncontrolled waste disposal, please recycle it to prove the sustainable reuse of material resources. Please ask return and collection systems or contact the retailer where the product was purchased to return your used device, they can recycle products safely.
