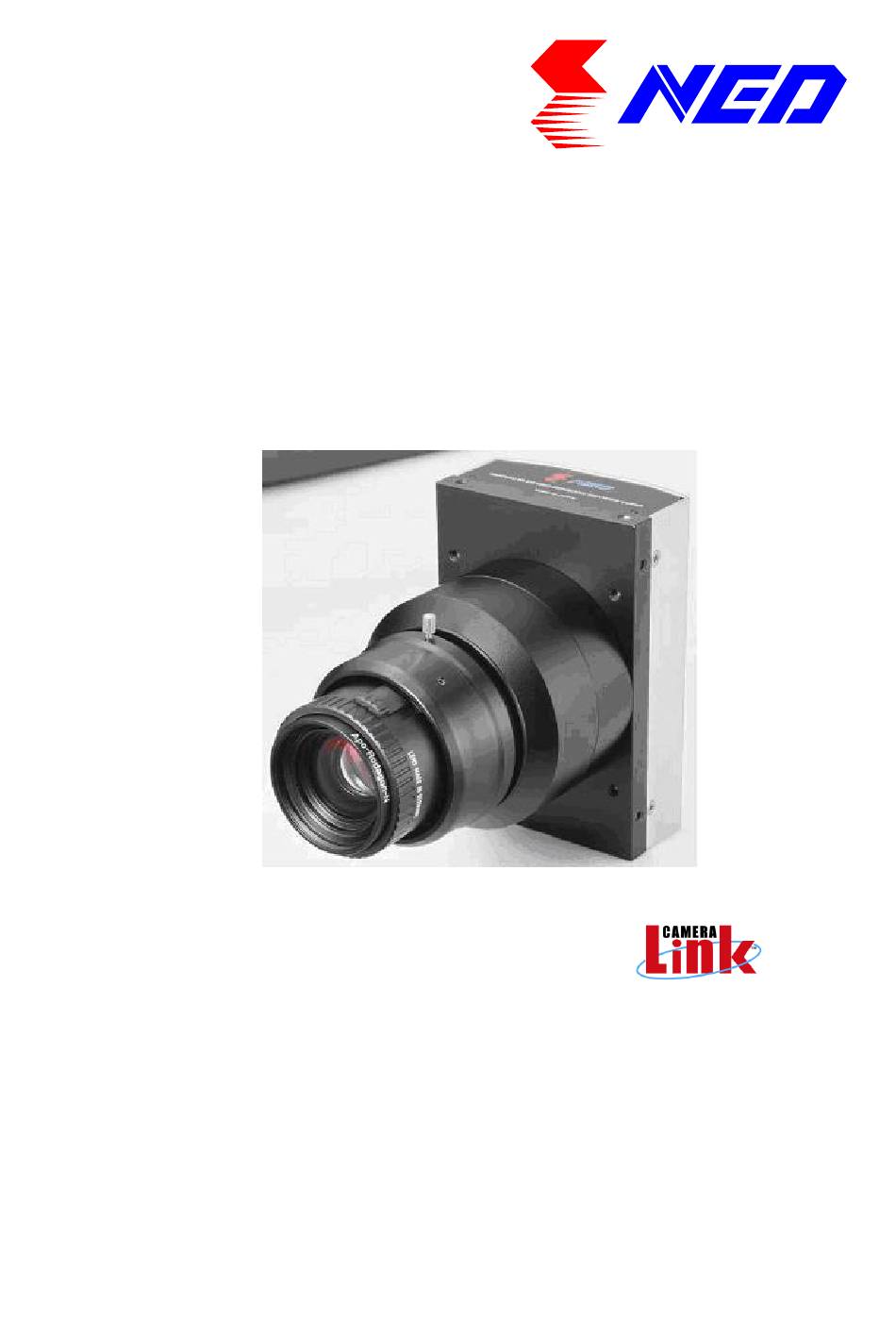

User's Manual
Line Scan Camera
Type：XCM8040SAT4
NIPPON ELECTRO-SENSORY DEVICES CORPORATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Camera Link XCM8040SAT4 and is the answer not in the manual?

Questions and answers

Related Manuals for NED Camera Link XCM8040SAT4

Summary of Contents for NED Camera Link XCM8040SAT4

  • Page 1 User’s Manual Line Scan Camera Type：XCM8040SAT4 NIPPON ELECTRO-SENSORY DEVICES CORPORATION...
  • Page 2 Directive on Waste Electrical and Electronic Equipment (WEEE) Please return all End of Life NED products to the distributor from whom the product was purchased for adequate recycling and / or disposal. All costs of returning the Product to NED are borne by the shipper.
  • Page 3 Introduction Thank you for purchasing NED’s Line Scan Camera. We look forward to your continued custom in the future. For safety use  For your protection, please read these safety instructions completely before operating the product and keep this manual for future reference.
  • Page 4  Do not share the power supply with motor units or other devices that generate noise interference.  Do not disconnect the camera while rewriting an embedded memory.  When you change exposure mode that is set at NED factory, input control signal (CC1) from the capture board. XCM8040SAT4...
  • Page 5 Product Warranty Warranty Period  The product warranty period, as a general rule, is two years from purchase; however for detailed conditions please contact the sales representative for your region/country.  However, in some cases due to the usage environment, usage conditions and/or frequency of use, this warranty period may not be applicable.
  • Page 6 Exclusion of Liability for Compensation for Missed Opportunities  Regardless of whether within the warranty period or not, our warranty does not cover compensation for missed opportunities for our customers, or our customers’ customers, caused by a fault of our products, nor for damage to products other than our own, or related business.

  • Page 7: Table Of Contents

    Table of Contents 1 Product Outline ....................10 1.1 Features ........................... 10 1.2 Application........................10 1.3 Image Sensor ........................12 1.4 Performance Specifications ..................12 2 Camera Setting and Optical Interface .............14 2.1 Setting the Camera ......................14 2.2 Fixing the Camera ......................14 2.3 Optical Interface ......................
  • Page 8 4.2.16 Setting the Pixel Readout Direction ..............33 4.3 Digital Processing flow in FPGA ................... 33 4.4 Startup ..........................33 4.5 Saving and Loading Camera Settings ................34 4.6 Serial Communication Settings ..................35 4.7 Video Output Format ...................... 35 4.8 Exposure Mode and Timing Chart ................
  • Page 9 8.5.6.Export Parameters to text file ................63 8.5.7.Import Parameters from text file ................63 8.6 Control ..........................63 8.6.1 Gains and Offsets ....................63 8.6.2 Clock & Integration ....................64 8.6.3 Trigger & Video ......................65 8.6.4 Intelligence....................... 66 8.6.5 Memory in camera ....................66 8.7 Upgrade ...........................

  • Page 10: Product Outline

    1 Product Outline 1.1 Features  High resolution（8192pixels）  On-chip AD conversion（8/10bit）  Easy control of gain / offset with software outside the camera.  Easy connection with a variety of frame grabber boards via Camera Link interface  Single power source DC12V to 15 for operation ...
  • Page 11 An example of Visual Inspection of PCBs is shown below. Line scan camera Figure 1-2-1 Visual Inspection of PCBs Applicable Work COB, BGA and MCM printed circuit boards Performance 1. Maximum board size: 100mm×200mm 2. Resolution: 10μm 3. Inspection time: less than 30 seconds Unit Configuration 1.

  • Page 12: Image Sensor

    1.3 Image Sensor The camera adopts a CMOS sensor with the maximum data rate of 160MHz to μ μ acquire high sensitivity and quality images. The pixels are 7 m. The camera outputs its 8192 pixel data through 40MHz-4Tap. 1.4 Performance Specifications The Performance Specifications are shown in Table 1-4-1.
  • Page 13 Control Input CC1:External Trigger Signal, CC2-4:Not in use Data/Controller 3M : MDR26[Camera Link] x 2 Connectors Power Supply Hirose: HR10A (4Pin) Lens Mount M72 x 0.75 Screw Operating Temperature (˚C) 0 to 50 No Condensation Power Supply Voltage (V) DC12 to 15 [+/-5%] Consumption Current (mA)

  • Page 14: Camera Setting And Optical Interface

    The spectral Responsivity is shown below. （Ta=25℃） 1000 Wavelength (nm) Figure 1-4-1 Spectral Responsivity 2 Camera Setting and Optical Interface 2.1 Setting the Camera Use the M4 screw holes or the tripod screw hole to set the camera. An optional mounting base (sold separately) is available. 2.2 Fixing the Camera ...
  • Page 15 The dimensions of the camera are shown below. 72x0.75 Screw Mount Unit : mm Camera Link Connector (MDR26) Indicator Power Supply Connector (HIROSE HR10A 4P) DC12-15V CLISBee DIGITAL LINESCAN CAMERA 4-M4 Depth 6 (Both Sides) Ø 4-M4 Depth 6 (Top,Bottom) 4-M4 Depth 8 (Front Surface) 1/4"-20UNC 1st Pixel...

  • Page 16: Optical Interface

    2.3 Optical Interface For the camera M72×0.75 screw mount is available. The amount and wavelengths of light required to capture useful images depend on the intended use. Factors include the property, speed, the objects spectral characteristics, exposure time, the light source characteristics, the specifications of the acquisition system and so on.

  • Page 17: Hardware

    3 Hardware 3.1 Camera Connection Use the camera in the following way: (1) Camera Link cables must be used to connect the camera unit with the frame grabber board.  Use asymmetric Camera Link cables and connect the camera with the connector labeled as ”Camera side”.
  • Page 18 <Note: Choosing the appropriate Camera Link cable length > According to the Camera Link Specification, the maximum cable length is 10m. But the maximum cable length to be able to transfer data depends on the type of cable performance and clock speed. The actual maximum transmission distance becomes less than 10m at faster clock speeds, though the transmission distance of 10m is feasible at slower clock speeds.

  • Page 19: Input / Output Connectors And Indicator

    3.2 Input / Output Connectors and Indicator The layout of input /output connecters and the LED indicator are as follows. Camera Link Connector (MDR26) Indicator Power Supply Connector (HIROSE HR10A 4P) DC12-15V CLISBee S DIGITAL LINESCAN CAMERA Figure 3-2-1 Input/Output Connectors and Indicator XCM8040SAT4 UME-0038-02...

  • Page 20: Connectors･Pin Assignments･Cables

    3.3 Connectors･Pin Assignments･Cables This camera adopts Base Configuration of Camera Link interface standards. Figure 3-3-1 shows the interface for the camera and a typical implementation for the frame grabber interface. Camera Frame Grabber Board LVDS_DRIVER(NS) LVDS_RECEIVER(NS) DS90CR285MTD DS90CR286MTD Ｃhannel Ｌink Ｂus equivalent recommended 　ＬＶＡＬ，ＦＶＡＬ...
  • Page 21  Set the LVDS, Channel Link receiver side to 100 ohm termination.  Do not make the driver side of LVDS open but set the logic to H or L, even if not used. Driver Receiver H or L 100Ω Figure 3-3-2 Circuit of LVDS The camera has 26-pin MDR connectors for control signals of Camera Link, data signals and serial communications.
  • Page 22 Table 3-3-1 Camera Link Connector (26-pin MDR Connector) pin assignments CL1(Base Configuration) CL2(Full Configuration) NAME NAME NAME NAME Inner Shield Inner Shield Inner Shield Inner Shield Xclk- Xclk+ Yclk- Yclk+ SerTC+ SerTC- 100Ωterminated 100Ωterminated SerTFG- SerTFG+ CC1- CC1+ CC2+ CC2- CC3- CC3+ Zclk-...

  • Page 23: Power Supply

    The pin assignment of the power supply connector is shown below. Figure 3-3-4 Power Supply Connector (HIROSE : HR10G -7R- 4PB)  Round shape push-pull lock type Table 3-3-2 Pin Assignment of Power Supply Connector NAME Color of Cable 12 -15V White 12 -15V Green...

  • Page 24: Camera Control

    4 Camera Control The camera can be controlled through the serial communication. Two methods can be used to change the camera’s parameters. The first approach is to change “8 parameters using CLISBeeCtrl (Camera control software). (See CLISBeeCtrl”.) Or you can also change the parameters directly from your application by using binary read/write commands to set values in the camera register.

  • Page 25: Camera Sending Message (Pc Receiving Message)

    4.1.3 Camera Sending Message (PC Receiving Message)  Format 1 >R CR >[SB] CR EOT  Format 2 (for “sta” command) >OK CR >[MEM] CR >sta CR EOT >： Results start text (03E) R： Camera receive command analyzed results [SB]： Camera receive command send back [MEM]：Memory data readout value CR：...

  • Page 26: Camera Control Commands

    4.1.4 Camera Control Commands Table 4-1-4-1 shows the list of Camera Control Commands 4-1-4-1 Table List of Camera Control Commands Control Item VAL1 VAL2 Control Description Analog Gain 0 to 20 x1.00...x11.22(1.06dB/step) Digital Gain 0 to 511 x1...x2(x0.003906/step) -15...15(1DN/step at8bit) Digital Offset -15 to 15 -60...60(4DN/step at10bit)

  • Page 27: Memory Setup Values (Factory Settings)

    4.1.5 Memory Setup Values (Factory Settings) The memory setup values (factory settings) are shown in Table 4-1-5-1. Table 4-１-5-1 Memory Setup Values (Factory Settings) Control Item Control Description VAL1 VAL2 Analog Gain x1(0dB) Digital Gain Digital Offset (8bit) Exposure Mode Free Run Programmable 48.8μs...

  • Page 28: Setting Digital Gain

    4.2.2 Setting Digital Gain Sets digital gain in 512 steps between x1 and x2. □  Format 2 VAL1 CR   0(x1) - 511(x2) <Example> □ 255 CR (Setting digital gain 255(1023/(1023-255)=x1.33)) >OK >gdx 5 4.2.3 Setting Digital Offset Sets digital offset -15 to +15(8bit：1DN/Step), -60 to +60(10bit:4DN/step) □...

  • Page 29: Setting Output Signals 1 (Setting Data Format)

    4.2.6 Setting Output Signals 1 (Setting Data Format) Sets the data format of output signals. □ □  Format 3 VAL1 VAL2 CR   VAL1 0,1 (0: 8bit / 1: 10bit)  VAL2 (fixed value <Example> □ □ 0 CR (8bit output) >OK >voa 0,0 4.2.7 Setting Output Signals 2 (Setting Linear / Log)

  • Page 30: Memory Load

    >cka 0 >voa 0,0 >voc 0 >tpn 0 >shc 1,600 >pad 0 >rev 0 >rst 4.2.9 Memory Load Reads out the camera settings from the flash memory.  Format 1 CMD CR  <Example> rfd CR >OK SAT4 >Type=XCM8040 2.60_0x4314 >Ver.= >Serial=0 >check_code = 20070615...

  • Page 31: Memory Save

    4.2.10 Memory Save Stores the current camera settings in the flash memory.  Format 1 CMD CR  <Example> sav CR >OK >sav 4.2.11 Generating Test Pattern Generates test pattern □  Format 2 VAL1 CR   0,1 (0:Image data, 1:Test pattern) <Example>...

  • Page 32: Setting Exposure Time - Readout Time

    4.2.14 Setting Exposure Time - Readout Time Prolongs the line period without changing the exposure time. □  Format 2 VAL1 CR  XCM8040SAT4:0-40960μs)  VAL 1 0 -50 ( <Example> pad□10 CR >OK >pad 10 The increment of the line period depends on the exposure time setting command “int”.

  • Page 33: Setting The Pixel Readout Direction

    4.2.16 Setting the Pixel Readout Direction Sets the pixel readout direction. □  Format 2 VAL1 CR   VAL1 0,1 (0:Forward, 1:Reverse) <Example> □ 1 CR (Reverse) >OK >rev 1 4.3 Digital Processing flow in FPGA The digital processing flow in FPGA is shown below. FPGA Processing block diagram Video(10bit) From Sensor...

  • Page 34: Saving And Loading Camera Settings

    4.5 Saving and Loading Camera Settings The camera settings data is saved in the internal memory (flash memory) and is loaded from the memory when turning on the power supply or loading (sending the “rfd” command).  The number of times the flash memory can be rewritten will vary depending on actual operational conditions.

  • Page 35: Serial Communication Settings

    4.6 Serial Communication Settings Serial communication is performed through the Camera Link Interface Table shows serial communication settings. 4-6-1 Table 4-6-1 Serial Communication Settings Parameter Items Setup Value Communication Speed (Baud rate) 9600bps Data Length 8bit Parity Bit None Stop bit 1bit Flow Control None...
  • Page 36 Video output phase of the camera is shown below. 2048 ＸＣｌｋ 　ＤＶＡＬ ＬＶＡＬ ＶIＤＥＯ invalid invalid invalid invalid 4093 4095 invalid invalid invalid invalid (＃1 BLOCK) ＶIＤＥＯ invalid invalid invalid invalid 4094 4096 invalid invalid invalid invalid (＃2 BLOCK) ＶIＤＥＯ invalid invalid invalid...

  • Page 37: Exposure Mode And Timing Chart

    4.8 Exposure Mode and Timing Chart The camera has three exposure modes. The overview of each mode and the timing are as follows. 4.8.1 Free Run Exposure Mode (Programming time setting) In free-run exposure mode, the camera generates its own internal control signal based on two programmable parameters, exposure time and readout time.

  • Page 38: External Trigger Exposure Mode (Trigger Edge)

    4.8.2 External Trigger Exposure Mode (Trigger Edge) In external trigger exposure mode , the exposure time is (Trigger Edge) determined by the setting for the line period parameter, each exposure starts with the rising edge and the line period is determined by the time from rising edge to rising edge of the internal control signal.

  • Page 39: External Trigger Exposure Mode (Trigger Level)

    4.8.3 External Trigger Exposure Mode (Trigger Level) In external trigger exposure mode , the exposure time is (Trigger Level) determined by the setting for the line period parameter, each exposure starts with the rising edge and the line period is determined by high trigger pulse time. The range of programmable exposure time, the timing chart of the exposure and the readout are shown below.

  • Page 40: Setting Offset

    4.9 Setting Offset In the diagram below, the horizontal axis indicates the volume of light and vertical axis indicates the output. Fs shows the output at saturation. Dd shows the output at darkness. (Both Fs and Dd are digital.) Se shows for the saturation current, or the amount of exposure when the output saturates.

  • Page 41: Setting Gain

    4.10 Setting Gain The camera can adjust the analog gain (x1 to X11.2 in 21 steps) and the digital gain. As the diagram below indicates, increasing the gain setting increases the slope of the camera’s response curve and results in a higher camera output for a given amount of light.
  • Page 42 Gain-Sensitivity is shown below. Table 4-10-1 Gain-Sensitivity Sensitivity Sensitivity Analog Amplifier Analog Amplifier x1.00 0.00dB x3.74 11.46dB x1.13 1.06dB x4.23 12.52dB x1.28 2.12dB x4.78 13.58dB x1.44 3.18dB x5.40 14.64dB x1.63 4.24dB x6.10 15.70dB x1.84 5.30dB x6.89 16.76dB x2.08 6.36dB x7.78 17.82dB x2.29 7.20dB...

  • Page 43: Pixel Correction

    4.11 Pixel Correction Generally speaking, image sensors (CCD, CMOS and so on) have fixed pattern noise and photo response non-uniformity. Lens shadings and light sources also can cause non-uniformity. The camera is set to the optimal correction before shipping in order to provide images of high grade. The camera also has the function of user white correction to cope with lens shading and non-uniform illumination, or to lose the irregular sensitivity generated by the thing changed into the lighting of a different spectrum...

  • Page 44: Command Settings

    4.11.1 Command Settings You can set the correction on or off, and acquire arbitrary white correction data by sending commands through serial communication, The example of command settings shc 0,600: No correction shc 1,600: Factory white correction shc 2,600: Arbitrary white correction wht: Acquisition of arbitrary white correction data 4.11.2 How to calibrate the camera...

  • Page 45: Test Pattern

    4.12 Test Pattern This camera can generate a test pattern. Use the test pattern to verify the proper timing and connections between the camera and the frame grabber board. The test pattern of the camera is below. Figure 4-12-1 Test Pattern of the Camera Figure 4-18 Test Image the Camera The test pattern is a ramp from 0 to 1023DN in 10-bit mode, and then it repeats itself from 0 again 8 times.

  • Page 46: Confirming Camera Settings

    5 Confirming Camera Settings 5.1 Before Power-on (1) Confirm the pin assignment of the power cable. NAME Color of Cable 12 -15V White 12 -15V Green Black Figure 5-1-1 Pin Assignment of Power Cable (2) Confirm the direction and the channel of the cables. Some Camera Link cables are directional.

  • Page 47: After Power-On

    The connection channel of in case of “Solios” CL1 = CHANNEL #0 Camera Link Connector (MDR26) Indicator Power Supply Connector (HIROSE HR10A 4P) CHANNEL #0 DC12-15V CHANNEL #1 CLISBee S DIGITAL LINESCAN CAMERA Figure 5-1-3 Channel of Camera Link Cables 5.2 After Power-on (1) Confirm sent and received commands using the camera control utility.
  • Page 48 (2) Set a trigger mode and a video output mode with the camera control utility. Example: Trigger mode = Free run Video output mode =8bit Figure 5-5 Setting of Exposure Mode and Video Output Mode linear Figure 5-2-2 Exposure Mode (Trigger Mode) ...
  • Page 49 (3) Capture images using a camera interface board utility. In case of Matrox’s Solios, it is convenient to use Intellicam. Figure 5-2-3 Solios Window XCM8040SAT4 UME-0038-02...

  • Page 50: In Operation

    5.3 In Operation (1) Does acquisition time out error occur? <Cause> <1> Captured images are too heavy. If there are many filtering processes, the assignments to the driver may be insufficient. <2> The cables are detached from the connector Ensure that the power cable and Camera Link cables are connected to the camera correctly.

  • Page 51: Sensor Handling Instructions

    6 Sensor Handling Instructions 6.1 Electrostatic Discharge and the Sensor CMOS sensors are susceptible to damage from electrostatic discharge and can become defective. 6.2 Protecting Against Dust, Oil and Scratches The CMOS sensor window is part of the optical path and should be handled like other optical components with care.

  • Page 52: Troubleshooting

    7 Troubleshooting The following pages contain several troubleshooting charts that can help you find the cause of problems users sometimes encounter. 7.1 No Image The camera has the correct connections The indicator is glowing. with the power source and the frame grabber.
  • Page 53 The communication port is set correctly. Set the communication port correctly. The camera may be out of order. Please contact us for service. カメラの修理をご依頼ください。 The capture software program is provided The capture software program is with the board as a sample program. custom made.

  • Page 54: Noise On Image

    7.2 Noise on Image The camera has been used for 3 or Noise is present from more years, ambient the beginning. temperature is higher than room temperature. servomotor magnetic valve is placed There are some consumable parts near the camera. in the camera.
  • Page 55 Cables are asymmetric e.g. thin cables. Only one of the connectors of an asymmetric camera cable can be connected with the camera. (Labeled as “Camera side”) The camera cables are too long. Use camera cables in accordance with the transmission rate. The cables should not be too long in order to avoid noise disturbance.

  • Page 56: Camera Becomes Hot

    7.3 Camera becomes hot The consumption current of the power supply is larger than the rating. The camera is too hot to touch. The camera will become hotter than the ambient temperature while in operation because of self-heating. Allow sufficient air circulation around the camera to give it a longer life.

  • Page 57: Clisbeectrl

    8 CLISBeeCtrl 8.1 Overview The CLISBeeCtrl is the remote control software for “CLISBee*” camera using “NED Camera Control Protocol”(NCCP) from a PC. Connectable interfaces are following. 1) Camera Link API 2) Communication Port (COM port, RS232C) *CLISBee is the nickname for XCM series camera.

  • Page 58: Operation

    8.5 Operation 8.5.1 Start Program Open Windows Explorer and Double-click the “CLISBeeCtrl.exe”. Ａ Ｂ Ｃ Ｄ Ｅ Buttons in the tool-bar have the following functions. A: Exporting parameters in the text file format. B: Connection with the camera. C: Disconnection. D: Setting Communication.

  • Page 59: Selecting Interface And Timeout Setting

    8.5.2 Selecting interface and Timeout setting 8.5.2.1.Selecting interface 1) Click button D. 2) Select the interface in Drop-down-list-box. 3) Click “Setting” button to set the interface. (See 8.5.2.2. and 8.5.2.3.) 4) Click “OK” button. Click “Cancel” button when stopping setup. Note: The camera can be used without this operation after it has been set up correctly.
  • Page 60 8.5.2.2 Setting Communication port 1) Set up each item as follows. ( NED standard ) However, when the setup which differs to the camera to connect is shown, follow there. (1) Port: Select connecting port. (2) Bits per Second: 9600...
  • Page 61 1) Input the DLL file name for Camera Link API by edit-box, Or click “Browse” button and select this file. 2) Input value corresponding to the position of Camera Link cable to connect, into “Serial Index” column. 3) Click “OK” button. Click “Cancel”...

  • Page 62: Connect

    1) Input each timeout value in the edit-box. (Unit: msec) When you will click on the “Default” button, the value will be reset to the cameras default values. The meanings of each timeout are as follows. First Receive: The maximum time from sending a command to receiving the first data. Next Receive: The maximum time between a letter and the next one.

  • Page 63: Export Parameters To Text File

    8.5.6.Export Parameters to text file 1) Click button A. 2) Input file name and click “Save” button. Present setting value of each control is saved by text format. 8.5.7.Import Parameters from text file 1) Select menu “File” – “Text Load” 2) Input file name and click “Open”...

  • Page 64: Clock & Integration

    Digital : Set a value with the slider, the edit-box or the spin-button. Then, click “Send” button. < Offset > Digital : Set a value with the slider, the edit-box or the spin-button. Then, click “Send” button. 8.6.2 Clock & Integration Clock : Shows the camera internal clock frequency.

  • Page 65: Trigger & Video

    8.6.3 Trigger & Video The signal will be sent to the camera every time you make a selection from the menu in the drop-down-list-box. Trigger Mode : The selection of Free Run Exposure mode and External Trigger Exposure mode. Video output : The selection of the number of the output bit and the output block.

  • Page 66: Intelligence

    8.6.4 Intelligence < Calibration > Calib White : Acquisition of white data and saving the calibration data to camera’s flash memory. Mode / Level : First, choose the mode from the drop-down-list-box. Next, set a value with the slider, the edit-box or the spin-button. Then, click “Send” button. Test Pattern : The signal will be sent to the camera every time you make this selection from the menu in the drop-down-list-box.

  • Page 67: Upgrade

    8.7 Upgrade When installing a newer / updated software version from our company, Please perform in the following procedure. 1) Check the CLISBeeCtrl has not started. 2) Uninstall the old version software. ( See “8.4.Uninstall” ) 3) Install new version software. ( See “8.3.Install” ) 8.8 How to Program Please refer sample programs in CLISBeeCtrl¥SampleProgram folder.

  • Page 68: Dynamic Range Control (Multi-Slope Mode)

    9 Dynamic Range Control (Multi-Slope Mode) By setting “Multi-slope mode” using the CLISBee Control software, it is possible to change the slope of the photoelectric conversion curve at multiple points in order to increase the dynamic range of captured images. In order to extend the dynamic range, you can send the commands “msl a, b, c”...
  • Page 69 　Intensity light （light exposure）　 Blue ＞Ｇｒｅｅｎ＞Orange＞Pink＞Red A’ A’ B’ B’ C’ C’ exposure time 10 1 10 1 in case of [mst 0,1,10] 　 [msl 0,5,10] [int *,61] After the second reset, the line characteristics change such that it bends at the pink and green points (shown in the figure above right).

  • Page 70: Standard Mode

    [The following guide uses the XCM8060SAT4 and XCM8040SAT4 as examples] 9.2 Standard Mode The minimum line period is 35.7us (240MHz version) or 52.8us (160MHz version). The dynamic range is calculated as the ratio between the saturation voltage of the sensor and the dark output, and is 60dB per the camera specification. 1023 light exposure （lux･sec）...
  • Page 71 1023 The second slope The first slope 0.05 0.55 Amount of saturation exposure light exposure （lux･sec) ②For an integration time ratio of 5, send the following commands: “msl 0, 0, 8”; “mst 0, 0, 11”; “int 9, 66”, then set multi-slope mode by sending the command “inm 3” or “inm 4”. The integration time becomes 55 in the first slope, 11 in the second slope, and the knee point becomes ½...

  • Page 72: Bending The Line Three Times

    9.4 Bending the line three times ①For an integration time ratio of 10, send the following commands: “msl 4, 8, 12”; “mst 1, 10, 100”; “int 0, 1023”, then set multi-slope mode. The integration time becomes 1000 in the first slope, 100 in the second slope, 10 in the third and 1 in the fourth.
  • Page 73 Other settings may be changed as you please. 1023 The fourth slope The third slope The second slope The first slope 0.025 0.13 0.775 Amount of saturation exposure light exposure（lux･sec) XCM8040SAT4 UME-0038-02...

  • Page 74: Others

     Contents of this document are subject to change without prior notice.  Every care has been taken in the preparation of this User’s Manual. If you should discover any errors or omissions, please notify your nearest NED representative. 10.2 Contact for support Nippon Electro-Sensory Devices Corporation...

  • Page 75: Product Support

    If there is still a problem with your camera after checking it in accordance with the troubleshooting guide, turn off the power and call your NED representative. In such case, please inform us of the status of the camera. You can get the status by (1) executing the “sta”...

  • Page 76: Revision History

    Revision History Revision Date Changes Number 25 Jun. 2013 Initial release 27 Nov.2013 Model type XCM8040SAT4 UME-0038-02...
